LM324ADR2 datasheet, PDF - EEWORLD Datasheet

LM324ADR2: DescriptionOperational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size354KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

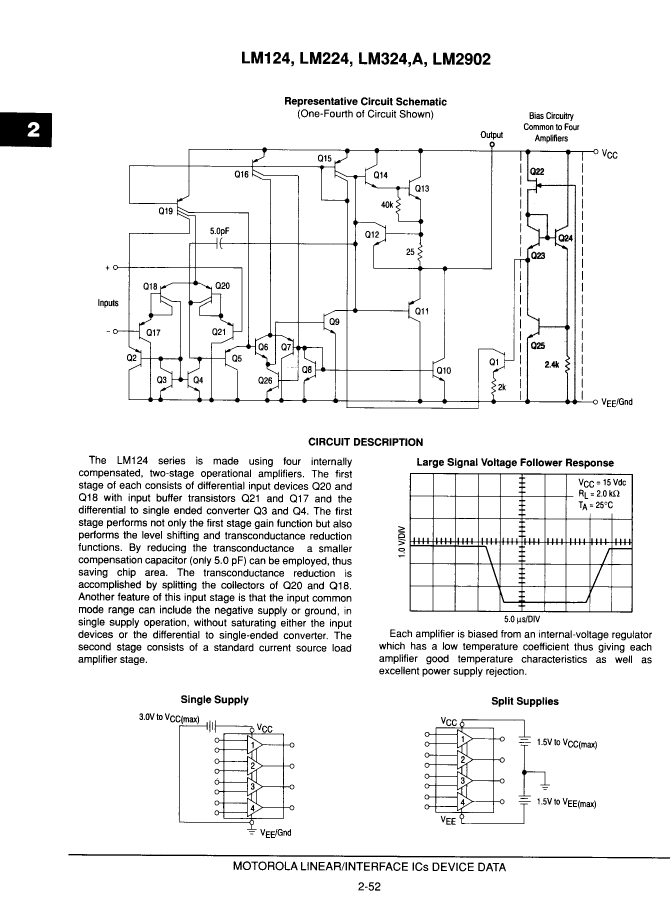

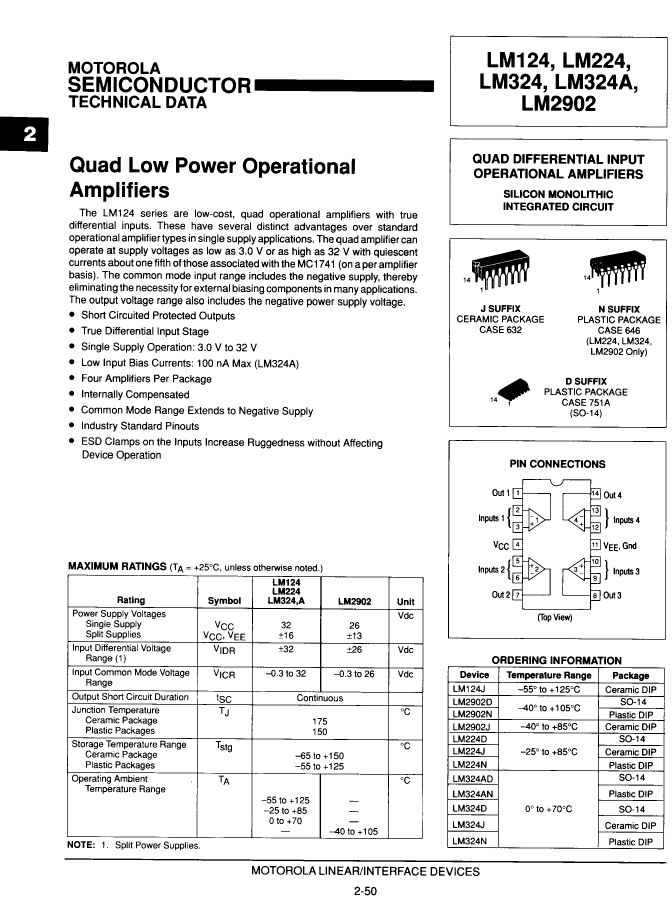

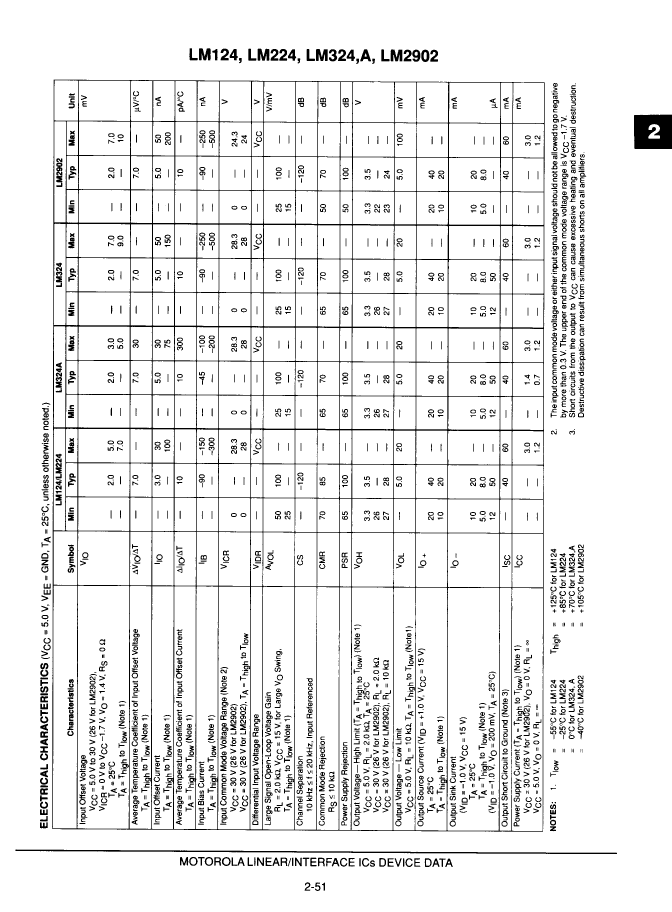

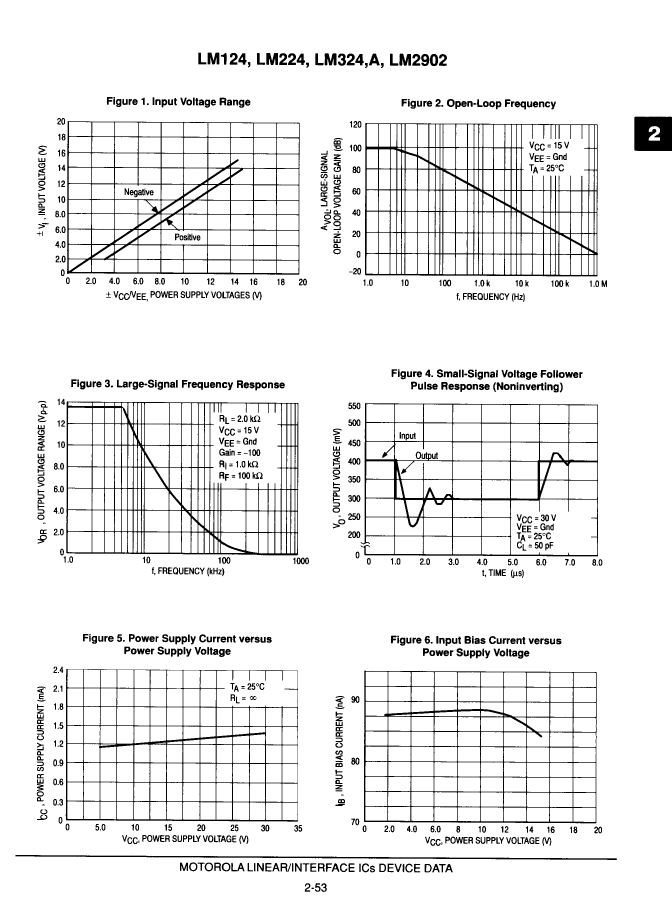

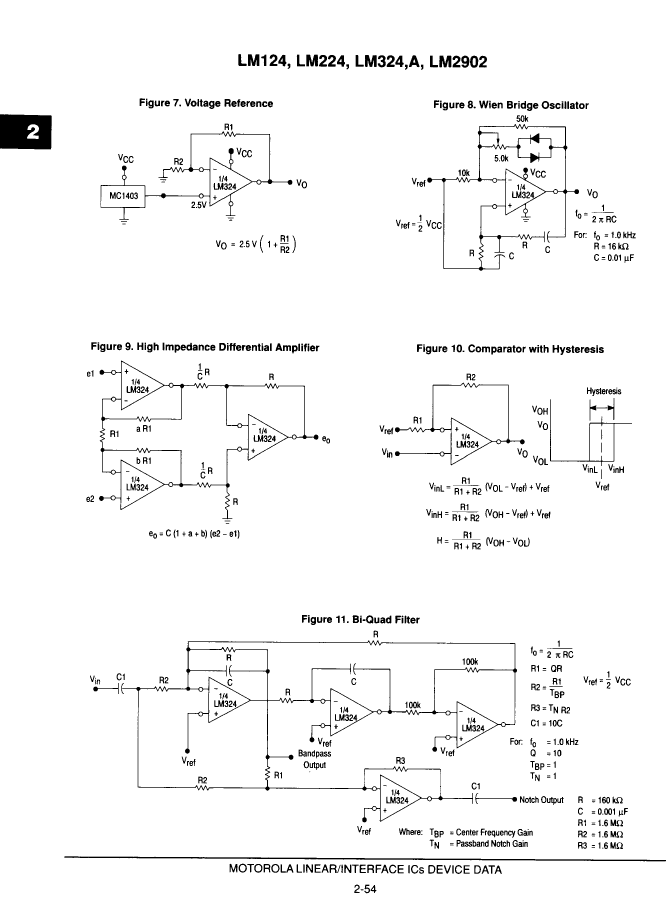

Download Datasheet Parametric View All

LM324ADR2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LM324ADR2	-	-	View	Buy Now

Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, PDSO14, PLASTIC, SO-14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	PLASTIC, SO-14
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA
Minimum Common Mode Rejection Ratio	65 dB
Nominal Common Mode Rejection Ratio	70 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
Negative supply voltage upper limit	-16 V
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal slew rate	0.6 V/us
Supply voltage upper limit	16 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	1000 kHz
Minimum voltage gain	15000
width	3.9 mm
