85-190622-2I: DescriptionMIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug; CategoryThe connector The connector; File Size30KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

85-190622-2I Overview

MIL Series Connector, 3 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Plug

85-190622-2I Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-5015, POLARIZED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	GOLD (50) OVER SILVER
Contact completed and terminated	GOLD (50) OVER SILVER
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/MOISTURE RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	85-1906
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	CADMIUM PLATED
Shell material	ALUMINUM ALLOY
Housing size	22
Termination type	CRIMP
Total number of contacts	3

Preview

Download Datasheet

View All

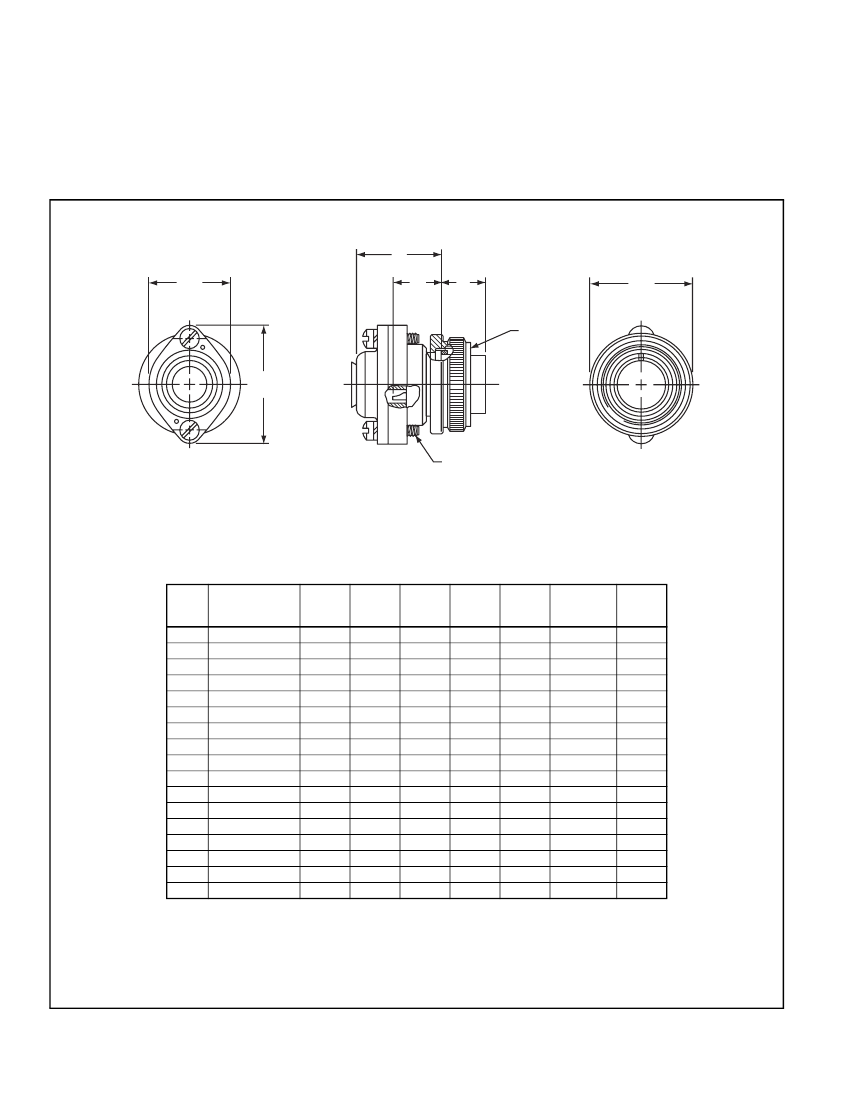

MS/Standard

MS3106R

straight plug

L

N

Z

J

Q

A

Thread

F

Y

To complete order number, see “how to order” pg. 70.

For solder well data, see page 67.

All lockwire holes are .045 dia. min.

A

Thread

Class 2B

F

Dia.

Max.

N

Dia.

Max.

Q

Dia.

Max.

Y

Thread

Class 2

Shell

Size

J

±.005

L

Max.

Z

±.045

8S

10S

10SL

12S

12

14S

14

16S

16

18

20

22

24

28

32

36

40

.5000-28UNEF

.6250-24NEF

.7500-20UNEF

.8750-20UNEF

1.0000-20UNEF

1.1250-18NEF

1.2500-18NEF

1.3750-18NEF

1.5000-18NEF

1.7500-18NS

2.0000-18NS

2.2500-16UN

2.5000-16UN

.959

1.026

1.120

1.307

1.432

1.557

1.744

1.869

1.994

2.166

2.541

2.729

2.979

.531

.719

.531

.719

.531

.719

1.057

1.212

1.057

1.212

1.057

1.212

1.291

1.353

.557

.682

.807

.932

1.057

1.182

1.291

1.432

1.557

1.807

2.057

2.260

2.510

.741

.869

.946

.995

1.123

1.250

1.333

1.461

1.588

1.715

1.968

2.209

2.463

2.719

6-32NC

8-32NC

10-32NF

.562

.812

.562

.812

.562

.812

.812*

* Increase Z dimension by .312 for size “0” contact only.
