1N4565UR-1 thru 1N4584UR-1 &
1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated
Zener Reference Diode Series
Features
•
Available in JAN, JANTX, JANTXV and JANS per
MIL-PRF-19500/452
•
6.4 V Nominal Zener Voltage ±5%
•
500 mW Power Handling
•
Hermetically sealed MELF DO-213 package
•
Also available in axial-leaded glass DO-35 style
package.
Rev. V4
Electrical Specifications:
I
R
= 2 µA @ +25°C & V
R
= 3 Vdc, T
A
= +25°C (unless otherwise specified)
JEDEC
Type #
Zener
Test
Current
I
ZT
mA
1N4565UR-1
1N4565AUR-1
1N4566UR-1
1N4566AUR-1
1N4567UR-1
1N4567AUR-1
1N4568UR-1
1N4568AUR-1
1N4569UR-1
1N4569AUR-1
1N4570UR-1
1N4570AUR-1
1N4571UR-1
1N4571AUR-1
1N4572UR-1
1N4572AUR-1
1N4573UR-1
1N4573AUR-1
1N4574UR-1
1N4574AUR-1
1N4575UR-1
1N4575AUR-1
1N4576UR-1
1N4576AUR-1
0.5
0.5
0.5
0.5
0.5
1.0
1.0
1.0
1.0
1.0
2.0
2.0
Effective
Temperature
Coefficient
%/°C
0.01
0.005
0.002
0.001
0.0005
0.01
0.005
0.002
0.001
0.0005
0.01
0.005
Voltage
Temperature
Stability
ΔV
ZT
max.
1
mV
48
100
24
50
10
20
5
10
2.5
5.0
48
100
24
50
10
20
5
10
2.5
5.0
48
100
24
50
Temperature
Range
°C
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
Maximum
Dynamic
Zener
Impeadance
2
Ω
200
200
200
200
200
100
100
100
100
100
50
50
(Continued next page)
1
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com/
1N4565UR-1 thru 1N4584UR-1 &
1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated
Zener Reference Diode Series
Electrical Specifications:
I
R
= 2 µA @ +25°C & V
R
= 3 Vdc, T
A
= +25°C (unless otherwise specified)
JEDEC
Type #
Zener
Test
Current
I
ZT
mA
1N4577UR-1
1N4577AUR-1
1N4578UR-1
1N4578AUR-1
1N4579UR-1
1N4579AUR-1
1N4580UR-1
1N4580AUR-1
1N4581UR-1
1N4581AUR-1
1N4582UR-1
1N4582AUR-1
1N4583UR-1
1N4583AUR-1
1N4584UR-1
1N4584AUR-1
2.0
2.0
2.0
4.0
4.0
4.0
4.0
4.0
Effective
Temperature
Coefficient
%/°C
0.002
0.001
0.0005
0.01
0.005
0.002
0.001
0.0005
Voltage
Temperature
Stability
ΔV
ZT
max.
1
mV
10
20
5
10
2.5
5.0
48
100
24
50
10
20
5
10
2.5
5.0
Temperature
Range
°C
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
0 to +75
-55
to +100
Maximum
Dynamic
Zener
Impeadance
2
Ω
50
50
50
25
25
25
25
25
Rev. V4
1. The maximum allowable change observed over the entire temperature range i.e., the diode voltage will not exceed the specified mV at any
discrete temperature between the established limits, per JEDEC standard No. 5.
2. Zener impedance is derived by superimposing on l
ZT
A 60Hz rms a.c. current equal to 10% of l
ZT
.
Absolute Maximum Ratings
Parameter
DC Power Dissipation
Power Derating
Operating & Storage Temperature
Absolute Maximum
500 mW @ +50°C
4 mW/°C above +50°C
-55°C
to +175°C
2
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com/

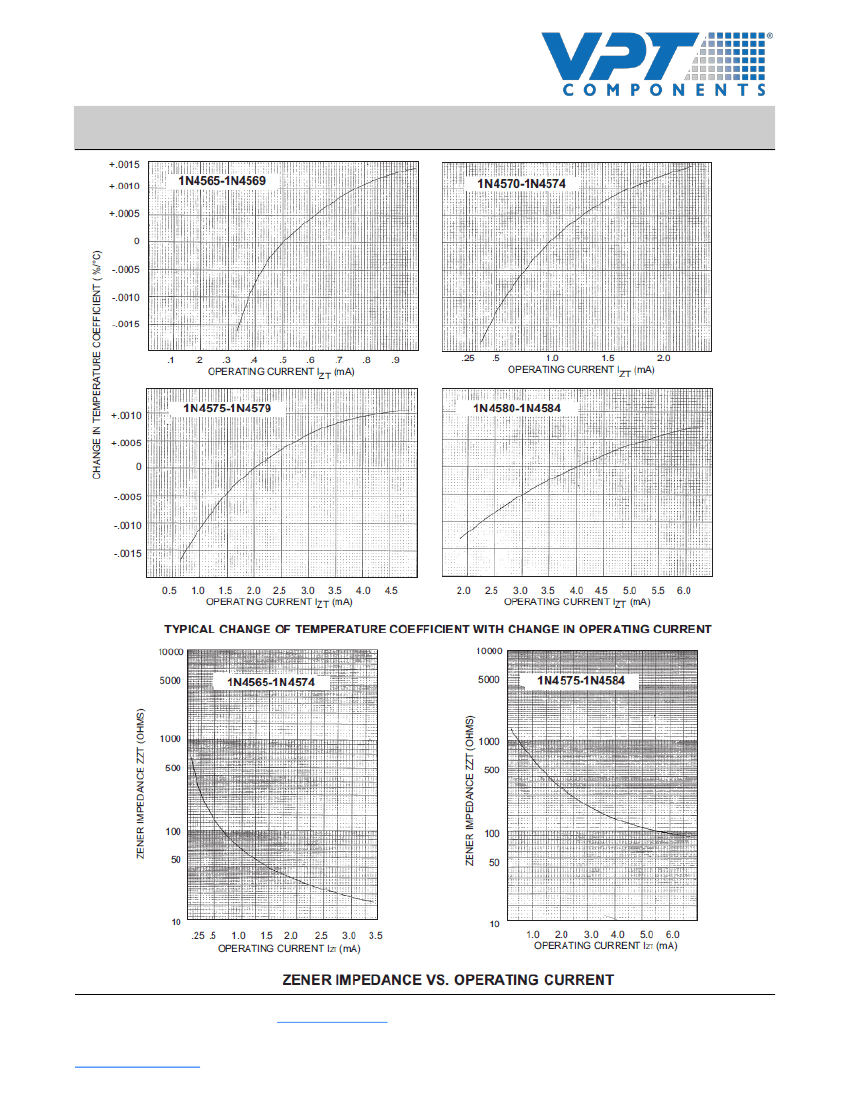

1N4565UR-1 thru 1N4584UR-1 &
1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated
Zener Reference Diode Series
Rev. V4
3
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com/
1N4565UR-1 thru 1N4584UR-1 &
1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated
Zener Reference Diode Series

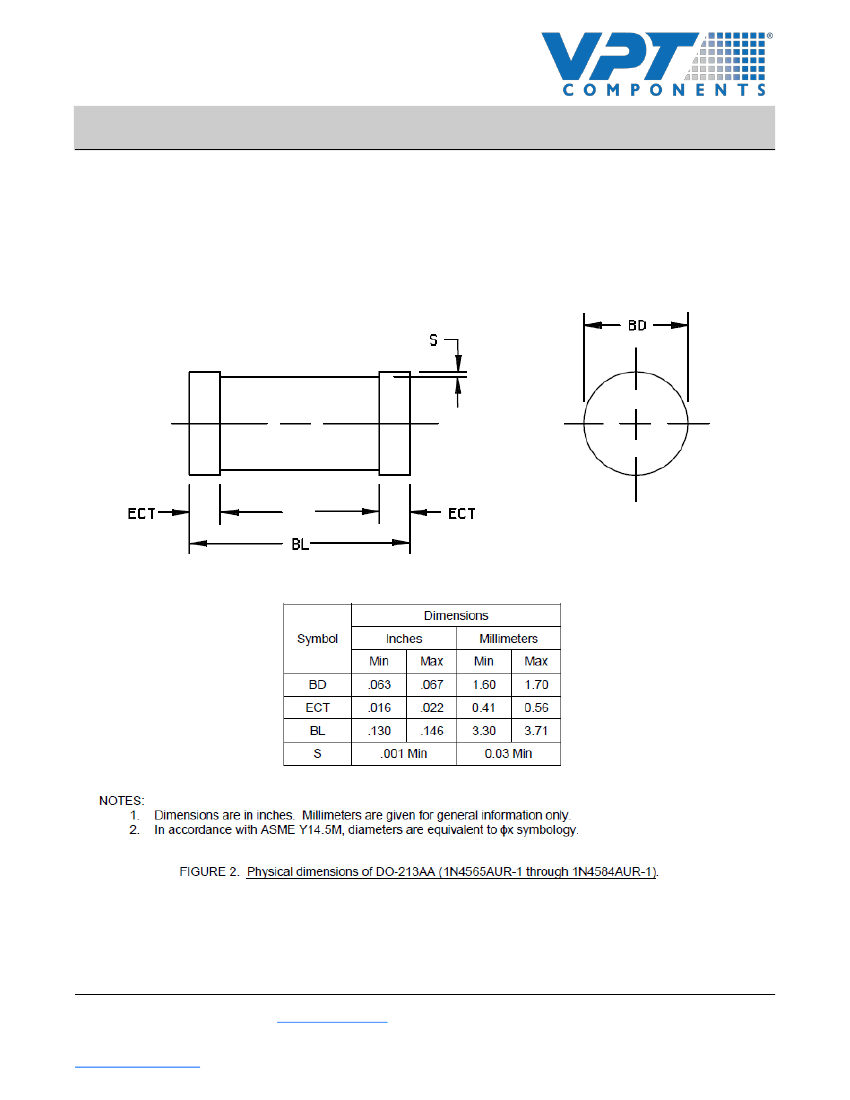

Outline (DO-213AA)
Rev. V4
4
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit
www.vptcomponents.com
for additional data sheets and product information.
For further information and support please visit:
info@vptcomponents.com/
1N4565UR-1 thru 1N4584UR-1 &
1N4565AUR-1 thru 1N4584AUR-1
Temperature Compensated
Zener Reference Diode Series
Rev. V4
VPT COMPONENTS. ALL RIGHTS RESERVED.
.
Information in this document is provided in connection with VPT Components products. These materials are provided by
VPT Components as a service to its customers and may be used for informational purposes only. Except as provided in
VPT Components Terms and Conditions of Sale for such products or in any separate agreement related to this document,
VPT Components assumes no liability whatsoever. VPT Components assumes no responsibility for errors or omissions in
these materials. VPT Components may make changes to specifications and product descriptions at any time, without
notice. VPT Components makes no commitment to update the information and shall have no responsibility whatsoever
for conflicts or incompatibilities arising from future changes to its specifications and product descriptions. No license,
express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document.
THESE MATERIALS ARE PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, RELATING
TO SALE AND/OR USE OF VPT COMPONENTS PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS
FOR A PARTICULAR PURPOSE, CONSEQUENTIAL OR INCIDENTAL DAMAGES, MERCHANTABILITY, OR INFRINGEMENT OF
ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. VPT COMPONENTS FURTHER DOES NOT WAR-
RANT THE ACCURACY OR COMPLETENESS OF THE INFORMATION, TEXT, GRAPHICS OR OTHER ITEMS CON-TAINED WITH-
IN THESE MATERIALS. VPT COMPONENTS SHALL NOT BE LIABLE FOR ANY SPECIAL, IN-DIRECT, INCIDENTAL, OR CONSE-
QUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOST REVE-NUES OR LOST PROFITS, WHICH MAY RESULT
FROM THE USE OF THESE MATERIALS.
VPT Components products are not intended for use in medical, lifesaving or life sustaining applications. VPT Components
customers using or selling VPT Components products for use in such applications do so at their own risk and agree to
fully indemnify VPT Components for any damages resulting from such improper use or sale.
5
VPT Components and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
