BQ-M516RD: DescriptionSmart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, FD-10, 12 PIN; CategoryLED optoelectronic/LED photoelectric; File Size347KB，1 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BQ-M516RD Overview

Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, FD-10, 12 PIN

BQ-M516RD Parametric

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	FD-10, 12 PIN
Reach Compliance Code	unknown
color	SUPER RED
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT
Display height	14.224 mm
Maximum forward current	0.03 A
Number of functions	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Preview

Download Datasheet

View All

Four Digit LED Displays

7-Segment

Part No.

Digit Size

Common

Anode

BQ-A531RD

BQ-A535RD

BQ-A535RE

BQ-A532RD

BQ-A533RD

BQ-A534RD

BQ-A536RD

BQ-A53DRD

BQ-M511RD

BQ-M515RD

BQ-M515RE

BQ-M512RD

BQ-M513RD

BQ-M514RD

BQ-M516RD

BQ-M51DRD

Common

Cathode

BQ-C531RD

BQ-C535RD

BQ-C535RE

BQ-C532RD

BQ-C533RD

BQ-C534RD

BQ-C536RD

BQ-C53DRD

BQ-N511RD

BQ-N515RD

BQ-N515RE

BQ-N512RD

BQ-N513RD

BQ-N514RD

BQ-N516RD

BQ-N51DRD

Chip

Material/Emitted

Color

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DH Super Red

GaAsP/Red

GaP/ Bright Red

GaP/ Green

GaAsP/GaP/ Yellow

GaAsP/GaP/ Hi-Eff.Red

GaAsP/GaP/ Orange

GaAlAs/ SH Super Red

GaAlAs/ DH Super Red

Peak

Wave

Length

λ

p(nm)

655

700

568

585

635

660

655

700

568

585

635

660

Absolute Maximum

Ratings

Pd

If

Ifp

λ

(nm) (mw) (mA) (mA)

40

90

30

35

45

20

40

90

30

35

45

20

80

40

80

40

80

40

15

30

40

15

30

200

50

150

200

50

150

Electro-optical

Data(At 10mA)

Vf

(v)

Typ. Max.

1.7

2.2

2.1

2.0

1.7

2.2

2.1

2.0

1.7

2.0

2.5

2.0

2.5

Iv. Typ.

Per.Seg.

(mcd)

1.0

1.5

3.5

2.5

3.5

6.5

7.5

1.0

1.5

3.5

2.5

3.5

6.5

7.5

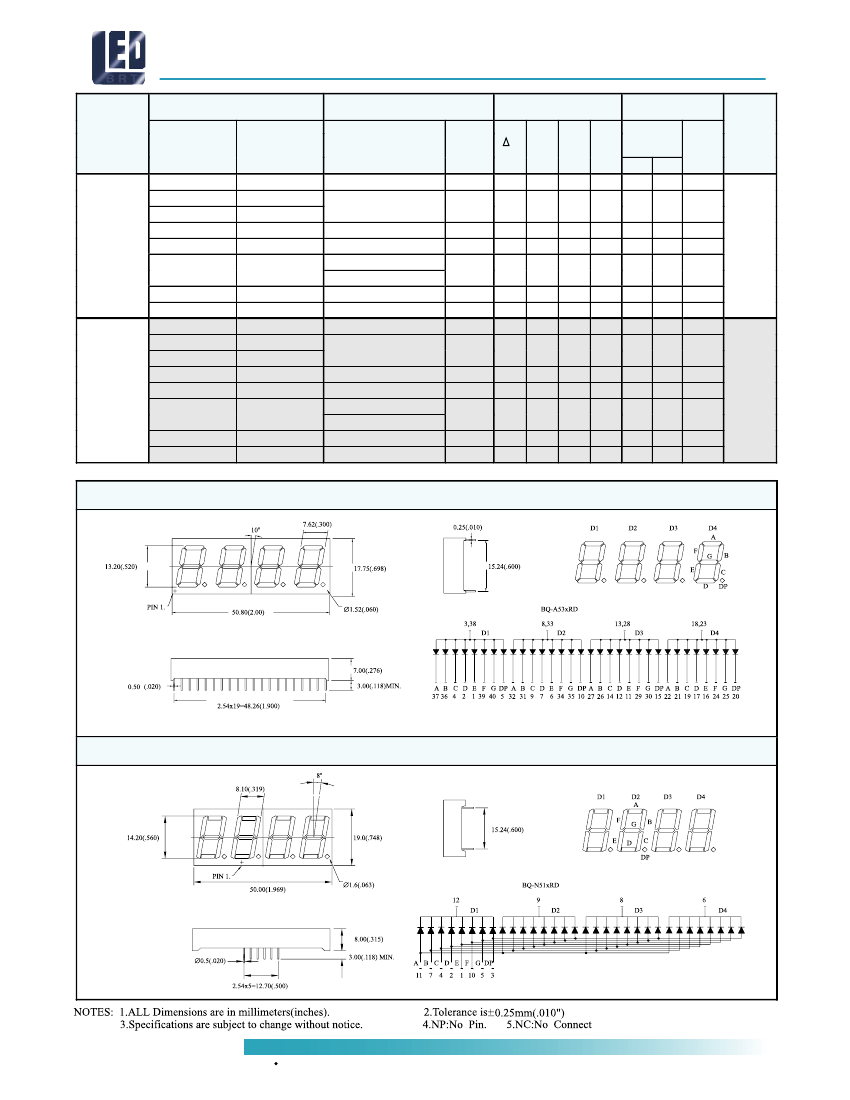

FD-10

FD-09

Drawing

No.

0.52"

Four-Digit

0.56"

Four-Digit

FD-09

BQ- A53xRD

C

FD-10

BQ- M 51xRD

N

AMERICAN BRIGHT

(909) 628-5050 FAX (909) 628-5006

.

www.americanbrightled.com

DSP-54

BQ-M516RD Related Products

	BQ-M516RD	BQ-C531RD	BQ-M513RD	BQ-C536RD	BQ-C53DRD	BQ-N515RE	BQ-A535RE	BQ-C533RD	BQ-C534RD
Description	Smart/Normal 7 Seg Numeric LED Display, Super Red, 14.224mm, FD-10, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Red, 13.208mm, FD-09, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 14.224mm, FD-10, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 13.208mm, FD-09, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Super Red, 13.208mm, FD-09, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 14.224mm, FD-10, 12 PIN	Smart/Normal 7 Seg Numeric LED Display, Bright Red, 13.208mm, FD-09, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, Yellow, 13.208mm, FD-09, 40 PIN	Smart/Normal 7 Seg Numeric LED Display, High Efficiency Red/orange, 13.208mm, FD-09, 40 PIN
package instruction	FD-10, 12 PIN	FD-09, 40 PIN	FD-10, 12 PIN	FD-09, 40 PIN	FD-09, 40 PIN	FD-10, 12 PIN	FD-09, 40 PIN	FD-09, 40 PIN	FD-09, 40 PIN
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	SUPER RED	RED	YELLOW	SUPER RED	SUPER RED	BRIGHT RED	BRIGHT RED	YELLOW	HIGH EFFICIENCY RED/ORANGE
Configuration	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT	COMMON ANODE, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT	COMMON CATHODE, 4 DIGITS WITH DECIMAL POINT
Display height	14.224 mm	13.208 mm	14.224 mm	13.208 mm	13.208 mm	14.224 mm	13.208 mm	13.208 mm	13.208 mm
Maximum forward current	0.03 A	0.04 A	0.03 A	0.03 A	0.03 A	0.015 A	0.015 A	0.03 A	0.03 A
Number of functions	4	4	4	4	4	4	4	4	4
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Maker	BRIGHT	-	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT	BRIGHT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C
