5962-8972802EA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-8972802EA

5962-8972802EA: DescriptionIC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference; CategoryPower/power management The power supply circuit; File Size1MB，12 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

5962-8972802EA Overview

IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference

5962-8972802EA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-18 V
Negative supply voltage minimum (Vsup)	-13.5 V
Number of functions	1
Output times	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output voltage	10.005 V
Minimum output voltage	9.995 V
Nominal output voltage	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	10 mA
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	13.5 V
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	4 ppm/°C
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES
Maximum voltage tolerance	0.1%

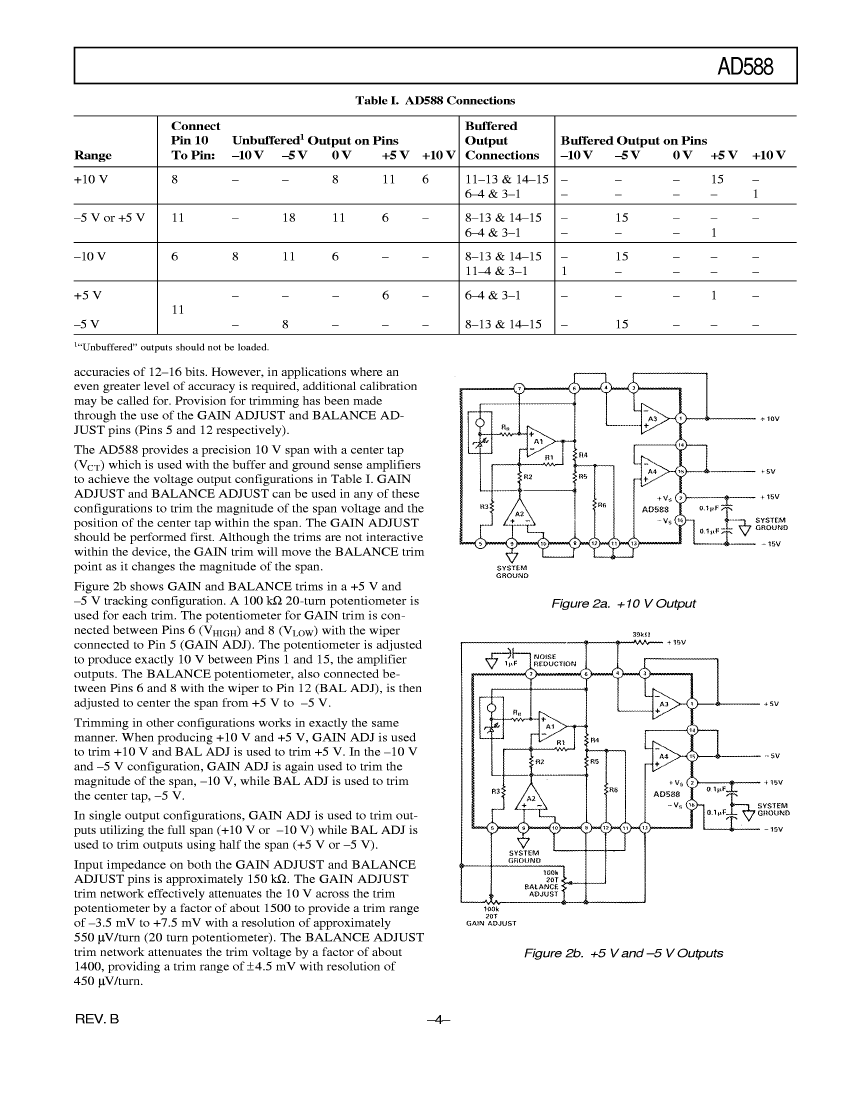

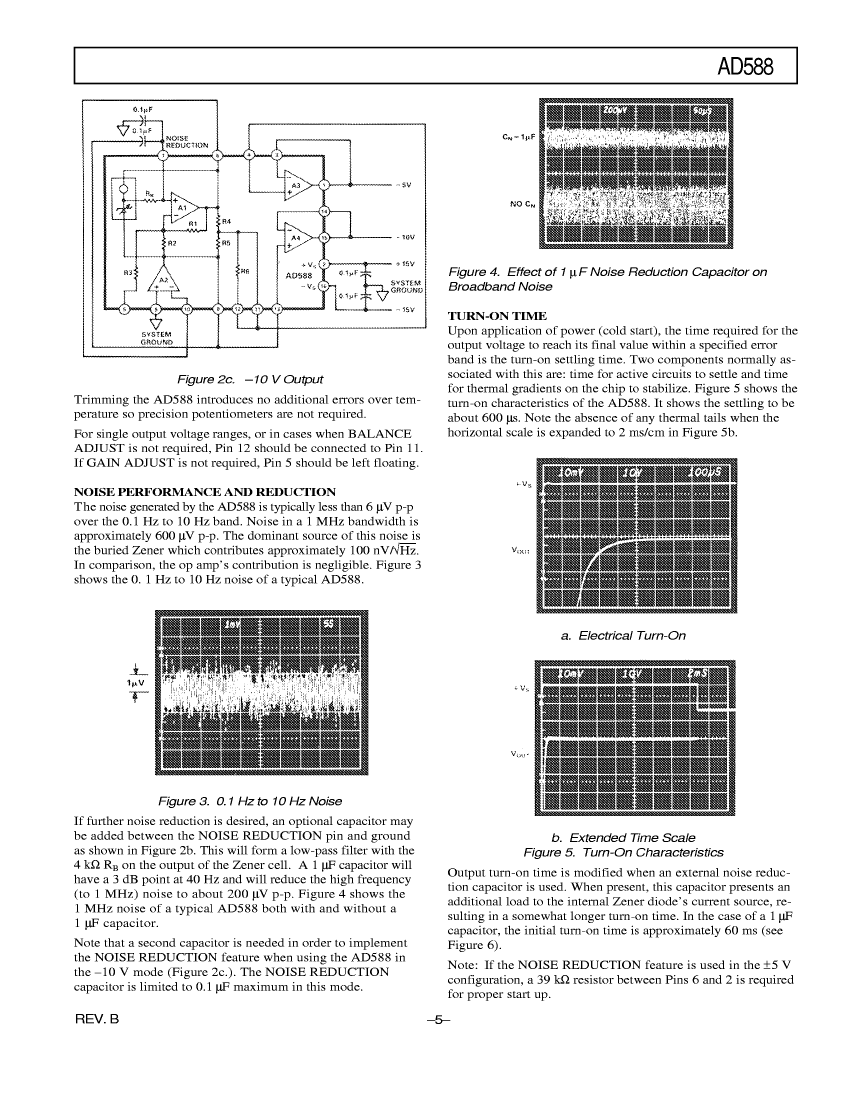

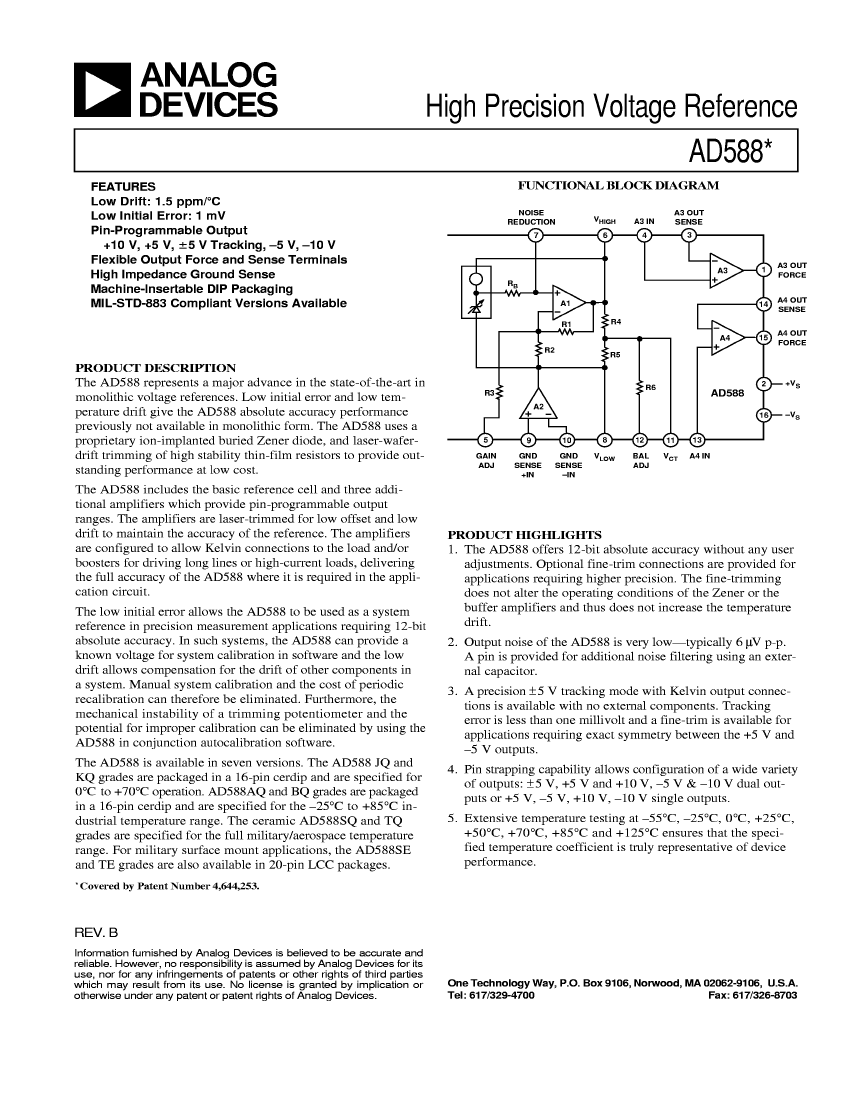

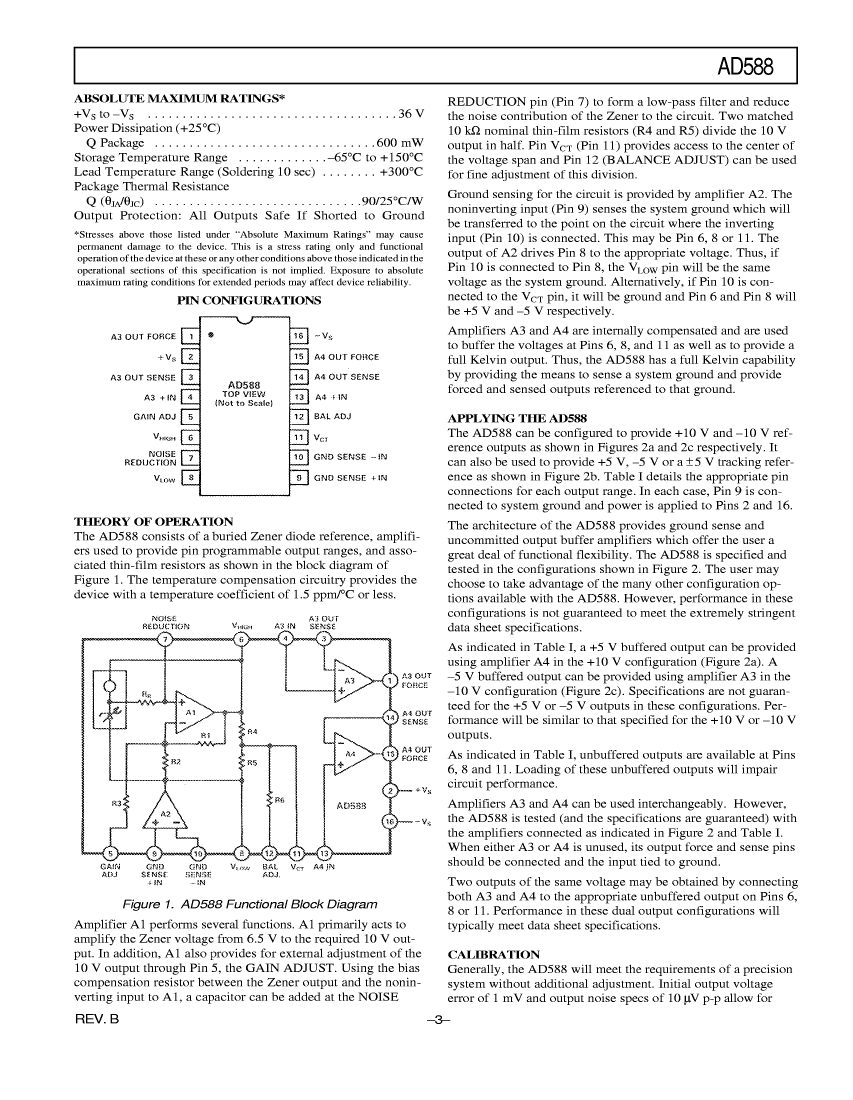

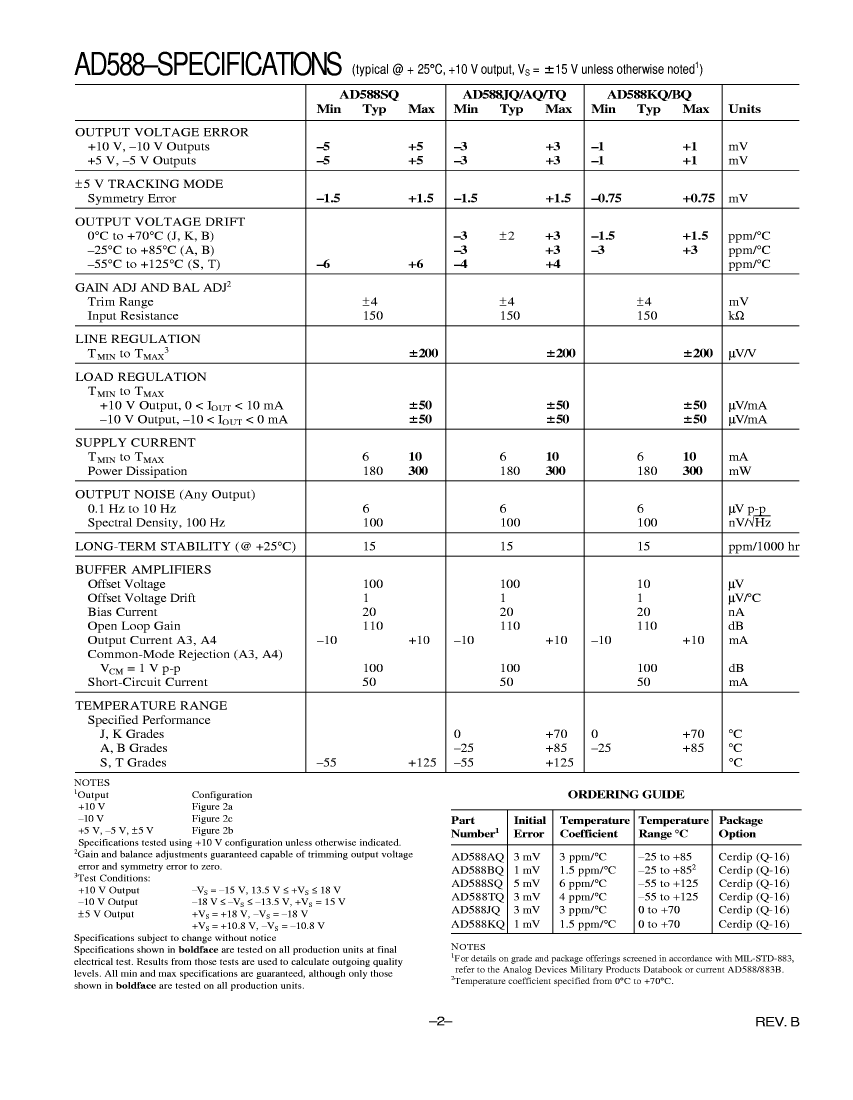

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

5962-8972802EA Related Products

	5962-8972802EA	5962-8972801EA	5962-89728012A
Description	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CDIP16, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16, Voltage Reference	IC 2-OUTPUT THREE TERM VOLTAGE REFERENCE, 10 V, CQCC20, CERAMIC, LCC-20, Voltage Reference
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	QLCC
package instruction	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16	HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-16	CERAMIC, LCC-20
Contacts	16	16	20
Reach Compliance Code	unknown	unknown	not_compliant
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-CDIP-T16	R-CDIP-T16	S-CQCC-N20
JESD-609 code	e0	e0	e0
Maximum negative supply voltage (Vsup)	-18 V	-18 V	-18 V
Negative supply voltage minimum (Vsup)	-13.5 V	-13.5 V	-13.5 V
Number of functions	1	1	1
Output times	2	2	2
Number of terminals	16	16	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Maximum output voltage	10.005 V	10.005 V	10.005 V
Minimum output voltage	9.995 V	9.995 V	9.995 V
Nominal output voltage	10 V	10 V	10 V
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	QCCN
Encapsulate equivalent code	DIP16,.3	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	10 mA	10 mA	10 mA
Maximum supply voltage (Vsup)	18 V	18 V	18 V
Minimum supply voltage (Vsup)	13.5 V	13.5 V	13.5 V
surface mount	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	4 ppm/°C	6 ppm/°C	6 ppm/°C
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT APPLICABLE	NOT APPLICABLE
Fine-tuning/adjustable output	YES	YES	YES
Maximum voltage tolerance	0.1%	0.1%	0.1%
Base Number Matches	-	1	1
