AC3FDPHL-AU

Description
Audio/RCA Connector, 3 Pole(s), Solder Terminal
CategoryThe connector    The connector
File Size137KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

AC3FDPHL-AU Overview

Audio/RCA Connector, 3 Pole(s), Solder Terminal

AC3FDPHL-AU Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Configuration1X1 HORIZONTAL
Connector typeAUDIO/RCA CONNECTOR
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial numberAC
Installation typeBOARD AND PANEL
Number of poles3
Number of ports1
OptionsGENERAL PURPOSE
Termination typeSOLDER

Preview

Download Datasheet

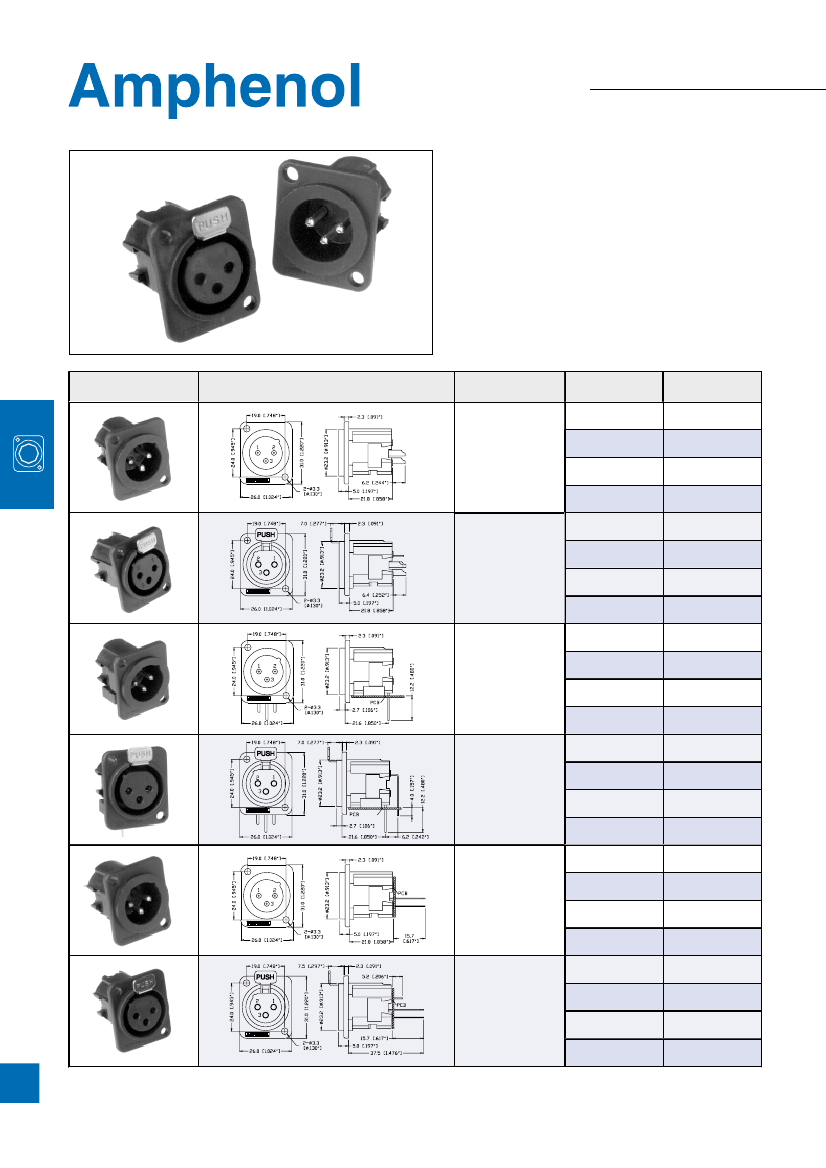

AC SERIES CHASSIS CONNECTORS
THERMOPLASTIC D TYPE FLANGE
Features:
• Thermoplastic shell.
• D type Flange.
• Solder Bucket connections.
• Vertical or Horizontal PCB mounting.
• Stamped contacts.
• Leading first mate last break socket contact.
• Positive latch lock system.
• Coloured housings available as specials.
Options:
Solder Buckets, Vertical or Horizontal PCB, Bulk Pack,
Latching or Non-latching, Gold Plated Contacts.
Part Number Breakdown: Page 39 Specifications: Page 48
PCB Footprints: Page 49
Panel Cutouts: Page 49
NOTE:
Refer to page 59, AC SERIES ACCESSORIES for mounting clips.
PRODUCT - FIGURE
DRAWING
Dimensions in mm (inches)
DESCRIPTION
XLR 3 pole male,
D Flange,
Thermoplastic shell,
Solder Buckets
VARIATIONS
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
PART NUMBER
AC3MDP
AC3MDP BULK
AC3MDPL
AC3MDPL BULK
AC3FDP
AC3FDP BULK
AC3FDPL
AC3FDPL BULK
AC3MDPH
AC3MDPH BULK
AC3MDPHL
AC3MDPHL BULK
AC3FDPH
AC3FDPH BULK
AC3FDPHL
AC3FDPHL BULK
AC3MDPV
AC3MDPV BULK
AC3MDPVL
AC3MDPVL BULK
AC3FDPV
AC3FDPV BULK
AC3FDPVL
AC3FDPVL BULK
XLR 3 pole female,
D Flange,
Thermoplastic shell,
Solder Buckets
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
XLR 3 pole male,
D Flange,
Thermoplastic shell,
Horizontal PCB mount
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
XLR 3 pole female,
D Flange,
Thermoplastic shell,
Horizontal PCB mount
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
XLR 3 pole male,
D Flange,
Thermoplastic shell,
Vertical PCB mount
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
XLR 3 pole female,
D Flange,
Thermoplastic shell,
Vertical PCB mount
Standard
Bulk Pack
Non-Latching
Non-Latching Bulk
38
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
Telephone 61 3 8796 8888 Fax 61 3 8796 8801
www.amphenol.com.au
