IDT71V321S45J8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71V321S45J8

IDT71V321S45J8: DescriptionMulti-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52; Categorystorage storage; File Size352KB，14 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71V321S45J8 Overview

Multi-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52

IDT71V321S45J8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	52
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	45 ns
Other features	INTERRUPT FLAG; ARBITER
JESD-30 code	S-PQCC-J52
JESD-609 code	e0
length	19.1262 mm
memory density	16384 bit
Memory IC Type	MULTI-PORT SRAM
memory width	8
Number of functions	1
Number of ports	2
Number of terminals	52
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	225
Certification status	Not Qualified
Maximum seat height	4.572 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	19.1262 mm

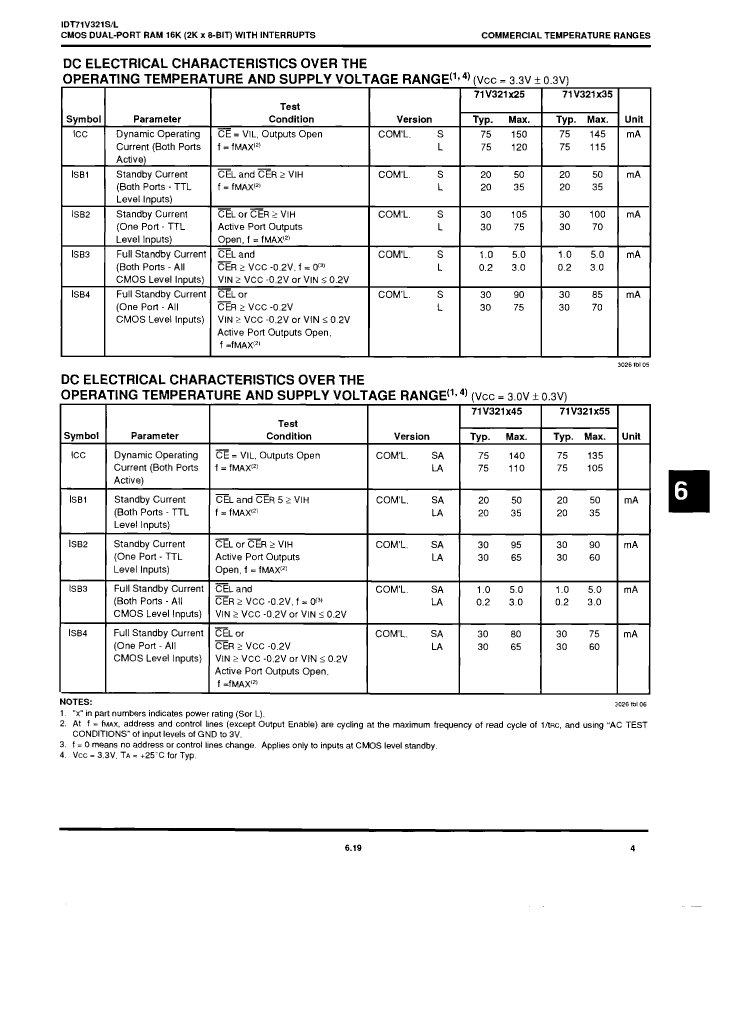

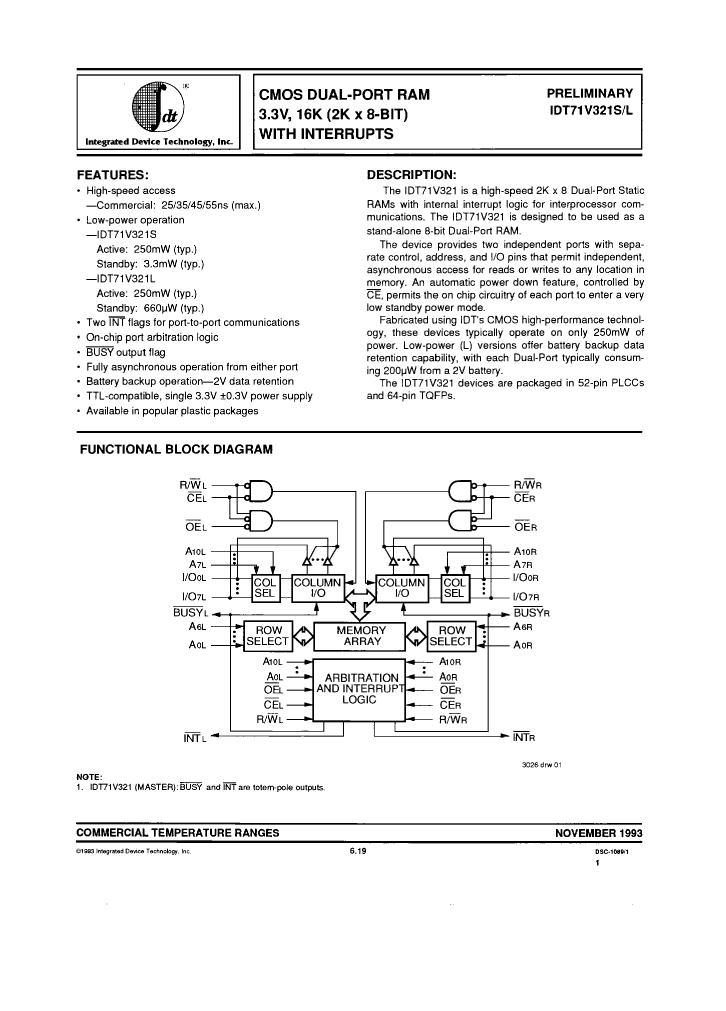

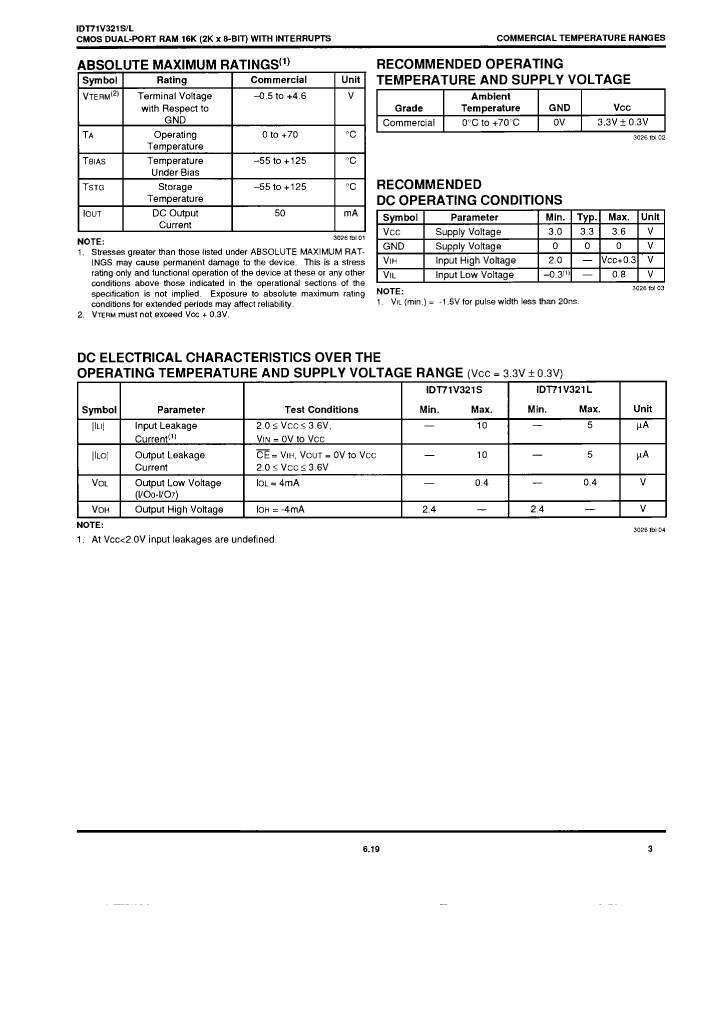

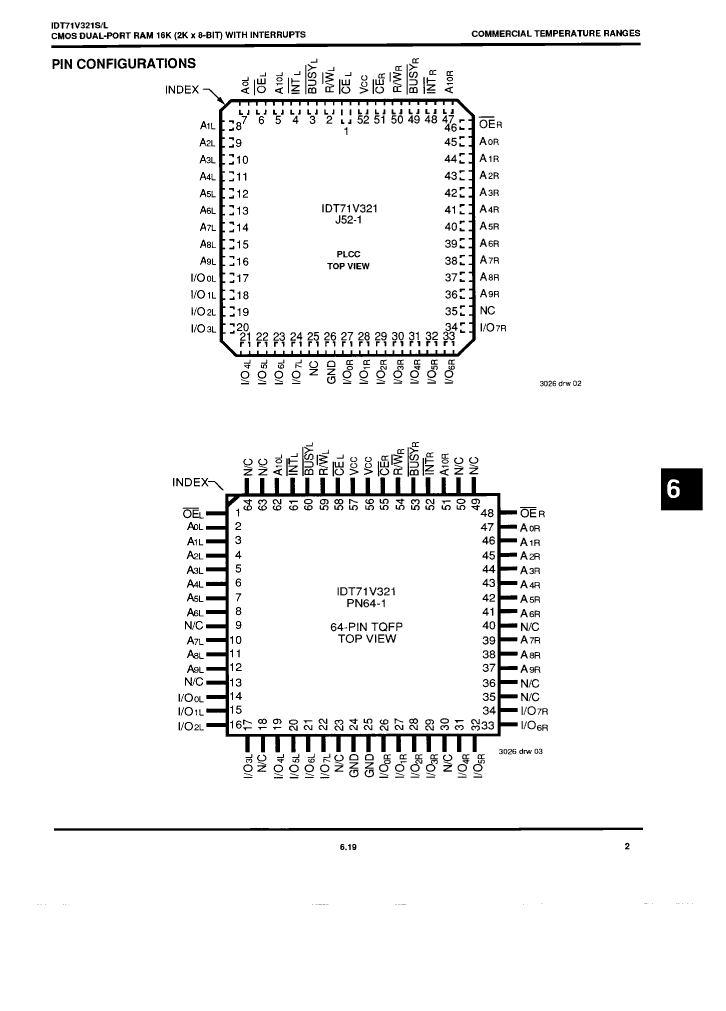

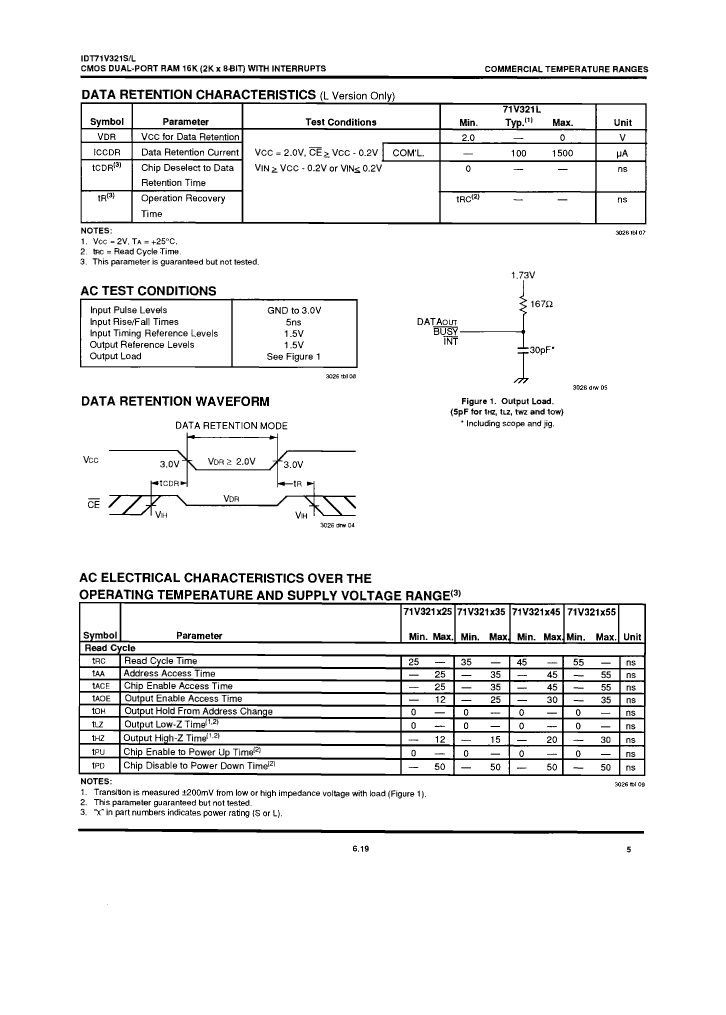

Preview

Download Datasheet

View All

IDT71V321S45J8 Related Products

	IDT71V321S45J8	IDT71V321L45PF8	IDT71V321L45J	IDT71V321L45J8	IDT71V321L45PF	IDT71V321S45J	IDT71V321S45PF	IDT71V321S45PF8
Description	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQFP64, PLASTIC, TQFP-64	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQFP64, PLASTIC, TQFP-64	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQCC52, PLASTIC, LCC-52	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQFP64, PLASTIC, TQFP-64	Multi-Port SRAM, 2KX8, 45ns, CMOS, PQFP64, PLASTIC, TQFP-64
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	LCC	QFP	LCC	LCC	QFP	LCC	QFP	QFP
package instruction	QCCJ,	LQFP,	PLASTIC, LCC-52	QCCJ,	LQFP, QFP64,.66SQ,32	QCCJ, LDCC52,.8SQ	LQFP, QFP64,.66SQ,32	LQFP,
Contacts	52	64	52	52	64	52	64	64
Reach Compliance Code	compliant	compli	not_compliant	compliant	not_compliant	not_compliant	not_compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns	45 ns
Other features	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER	INTERRUPT FLAG; ARBITER
JESD-30 code	S-PQCC-J52	S-PQFP-G64	S-PQCC-J52	S-PQCC-J52	S-PQFP-G64	S-PQCC-J52	S-PQFP-G64	S-PQFP-G64
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	19.1262 mm	14 mm	19.1262 mm	19.1262 mm	14 mm	19.1262 mm	14 mm	14 mm
memory density	16384 bit	16384 bi	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit	16384 bit
Memory IC Type	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM	MULTI-PORT SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	52	64	52	52	64	52	64	64
word count	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words	2048 words
character code	2000	2000	2000	2000	2000	2000	2000	2000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8	2KX8
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	LQFP	QCCJ	QCCJ	LQFP	QCCJ	LQFP	LQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	FLATPACK, LOW PROFILE	CHIP CARRIER	CHIP CARRIER	FLATPACK, LOW PROFILE	CHIP CARRIER	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	225	240	225	225	240	225	240	240
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.572 mm	1.6 mm	4.572 mm	4.572 mm	1.6 mm	4.572 mm	1.6 mm	1.6 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	Tin/Lead (Sn85Pb15)	TIN LEAD	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	TIN LEAD
Terminal form	J BEND	GULL WING	J BEND	J BEND	GULL WING	J BEND	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.8 mm	1.27 mm	1.27 mm	0.8 mm	1.27 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	30	20	30	30	20	30	20	20
width	19.1262 mm	14 mm	19.1262 mm	19.1262 mm	14 mm	19.1262 mm	14 mm	14 mm
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Humidity sensitivity level	-	3	1	-	3	1	3	3
Minimum standby current	-	2 V	2 V	2 V	2 V	3 V	3 V	-
