Preview

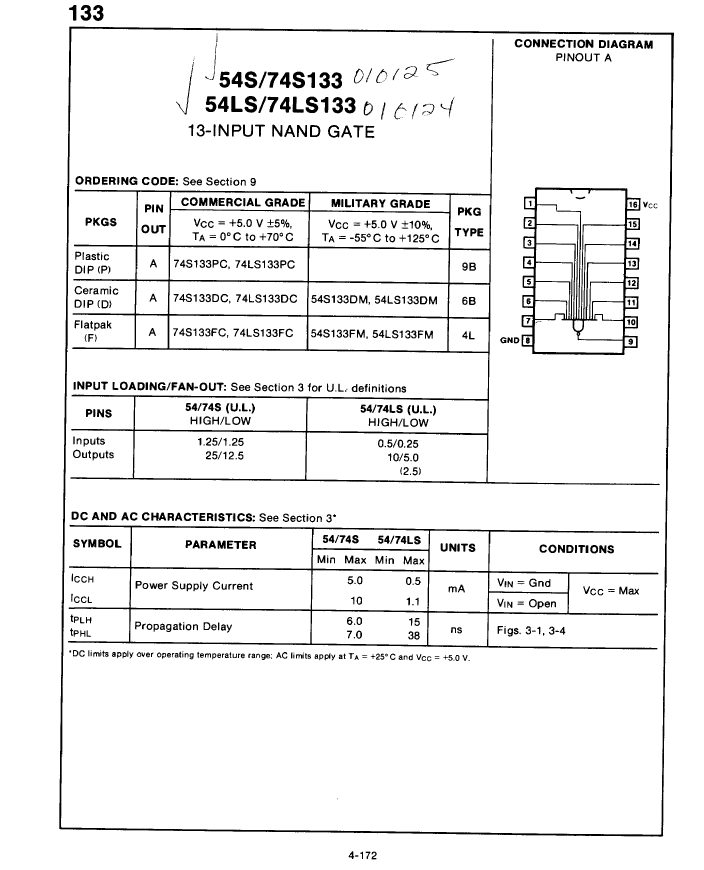

54LS133DMQB: DescriptionNAND Gate, TTL, CDIP16,; Categorylogic logic; File Size46KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54LS133DMQB Overview

NAND Gate, TTL, CDIP16,

54LS133DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Logic integrated circuit type	NAND GATE
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

54LS133DMQB Related Products

	54LS133DMQB	74LS133DCQM	74LS133DCQR	74LS133PCQM	74LS133PCQR	74LS133SC	74LS133FCQM	74LS133FCQR
Description	NAND Gate, TTL, CDIP16,	NAND Gate, TTL, CDIP16,	NAND Gate, TTL, CDIP16,	NAND Gate, TTL, PDIP16,	NAND Gate, TTL, PDIP16,	NAND Gate, TTL, PDSO16,	NAND Gate, TTL, CDFP16,	NAND Gate, TTL, CDFP16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	SOP, SOP16,.25	DFP, FL16,.3	DFP, FL16,.3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDIP-T16	R-XDIP-T16	R-XDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-XDFP-F16	R-XDFP-F16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE	NAND GATE
Number of terminals	16	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	SOP	DFP	DFP
Encapsulate equivalent code	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	SOP16,.25	FL16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	FLATPACK	FLATPACK
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	FLAT	FLAT
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Humidity sensitivity level	-	2A	2A	2A	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	250	250	250	250	250	250	250
Maximum time at peak reflow temperature	-	30	30	30	30	30	30	30
Base Number Matches	-	1	1	1	1	1	-	-
