DD-50PV datasheet, PDF - EEWORLD Datasheet

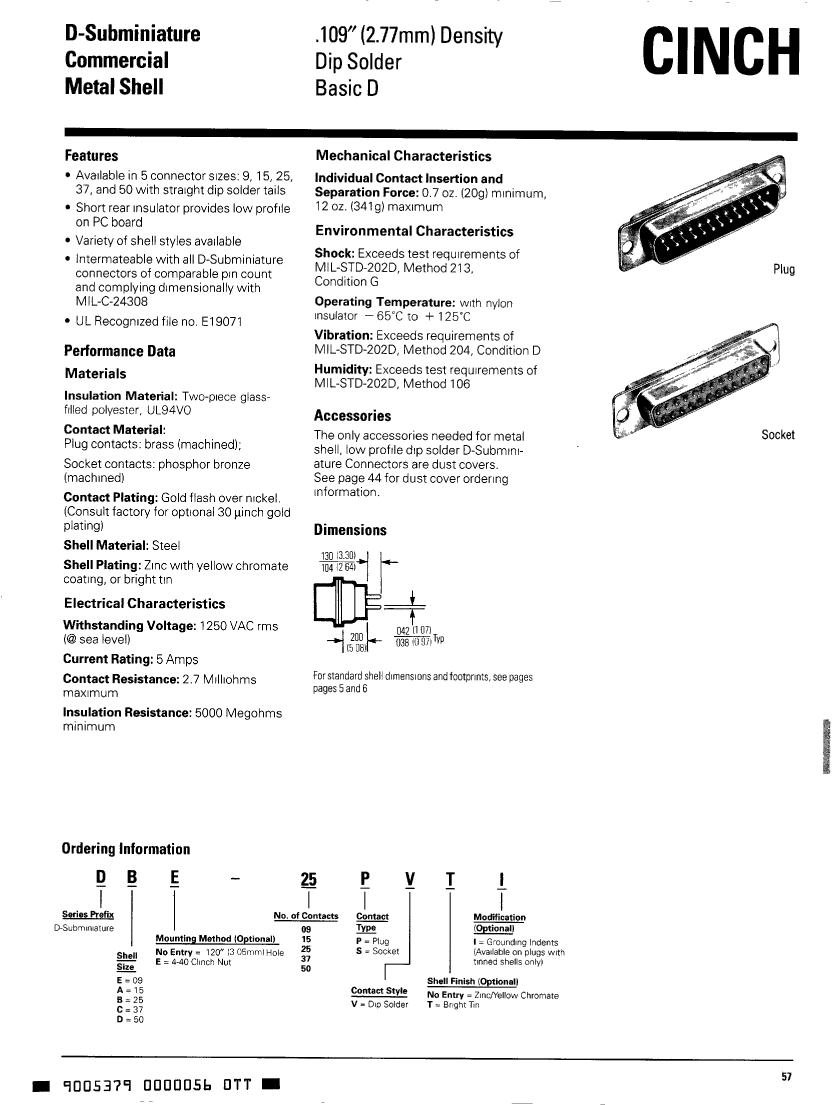

DD-50PV: DescriptionD Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size306KB，5 Pages; ManufacturerBel; Websitehttp://www.belfuse.com

Download Datasheet Parametric View All

DD-50PV Overview

D Type Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Bel
Reach Compliance Code	unknown
ECCN code	EAR99

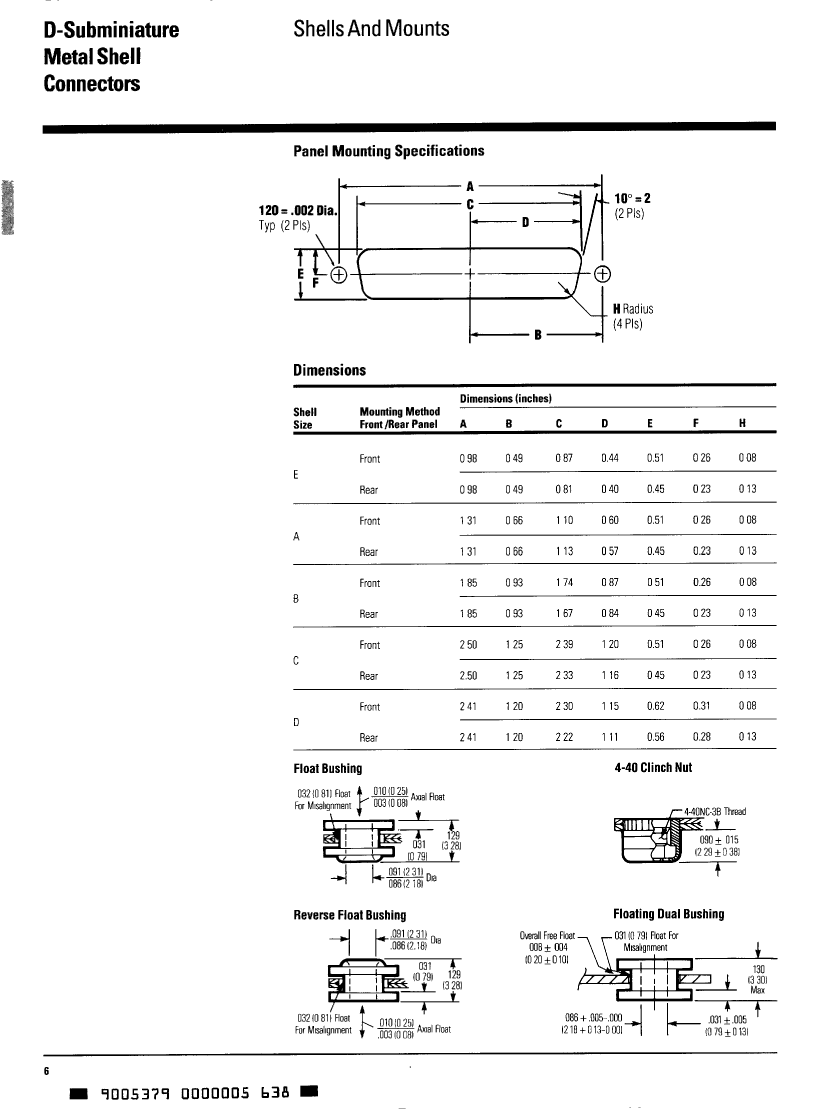

body width	0.605 inch
subject depth	0.2 inch
body length	2.635 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS

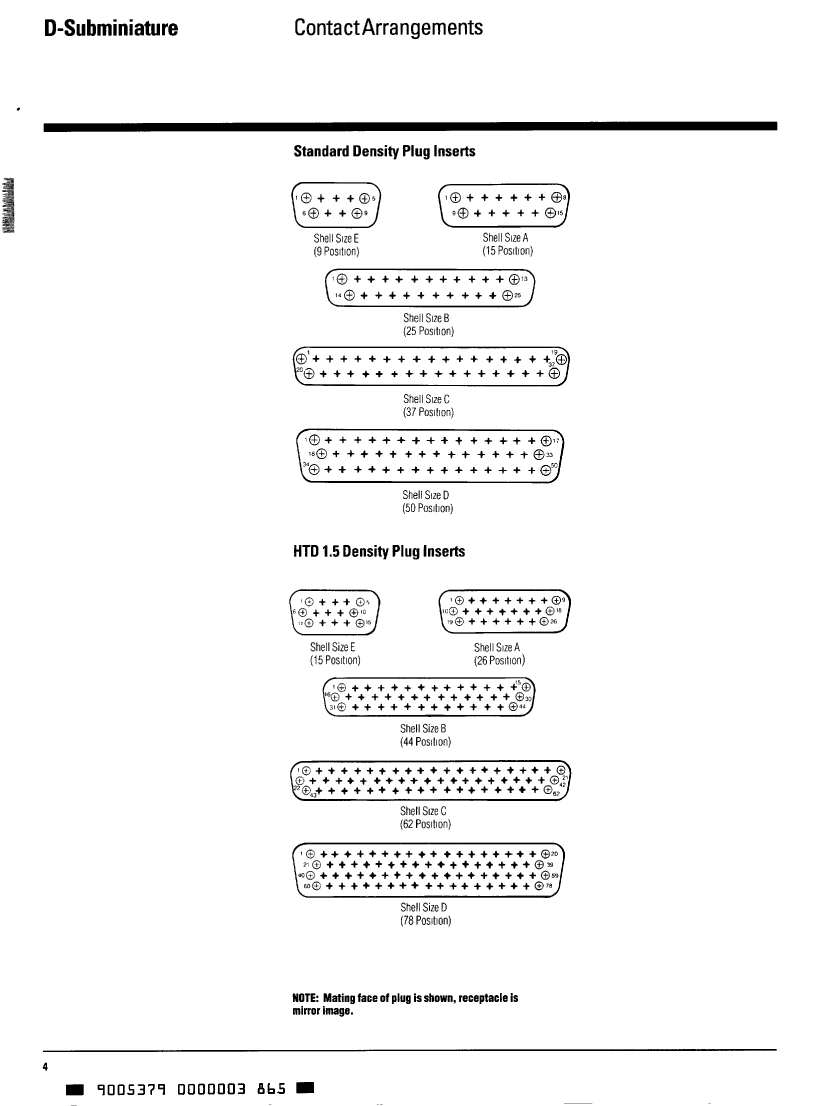

contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .112-.124
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C

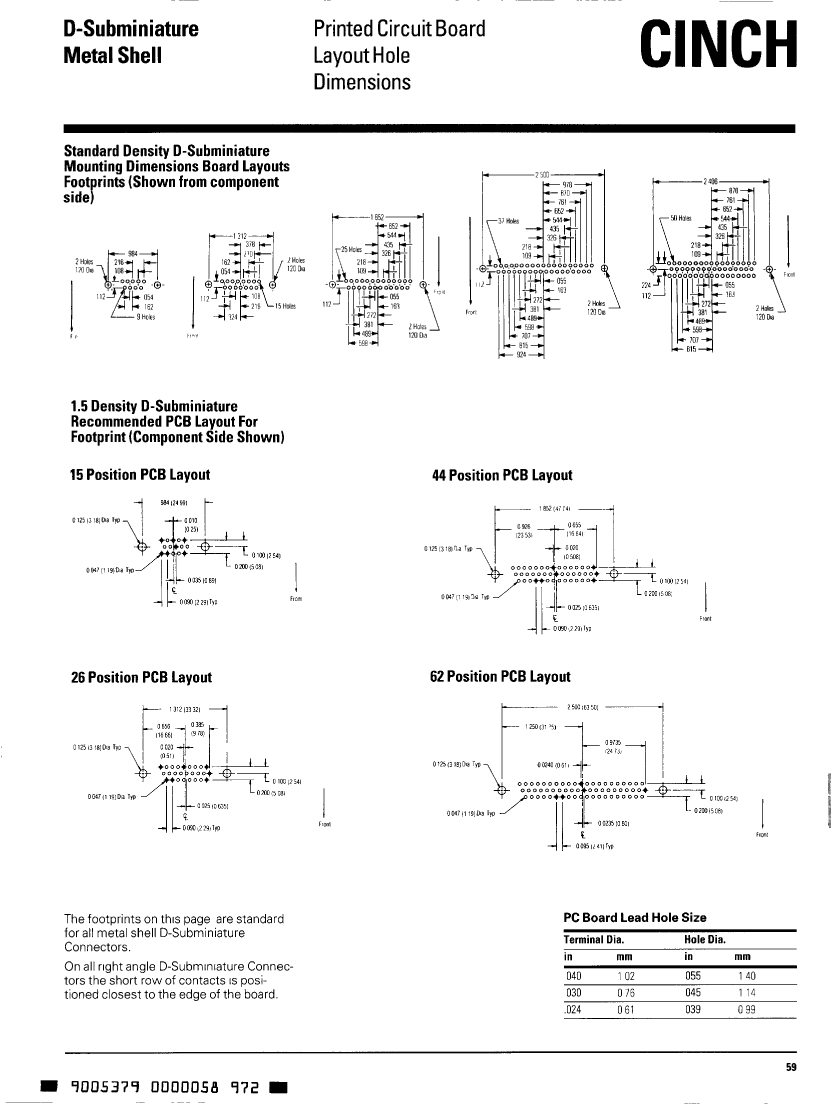

PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	ZINC/YELLOW CHROMATE
Shell material	STEEL
Terminal length	0.117 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.1946 N
