ASD2-FREQ-F-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> ASD2-FREQ-F-T

ASD2-FREQ-F-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4; CategoryPassive components oscillator; File Size218KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASD2-FREQ-F-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 80MHz Max, ROHS COMPLIANT PACKAGE-4

ASD2-FREQ-F-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRI STATE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	ASD
Installation features	SURFACE MOUNT
Maximum operating frequency	80 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	3 TTL, 15 pF

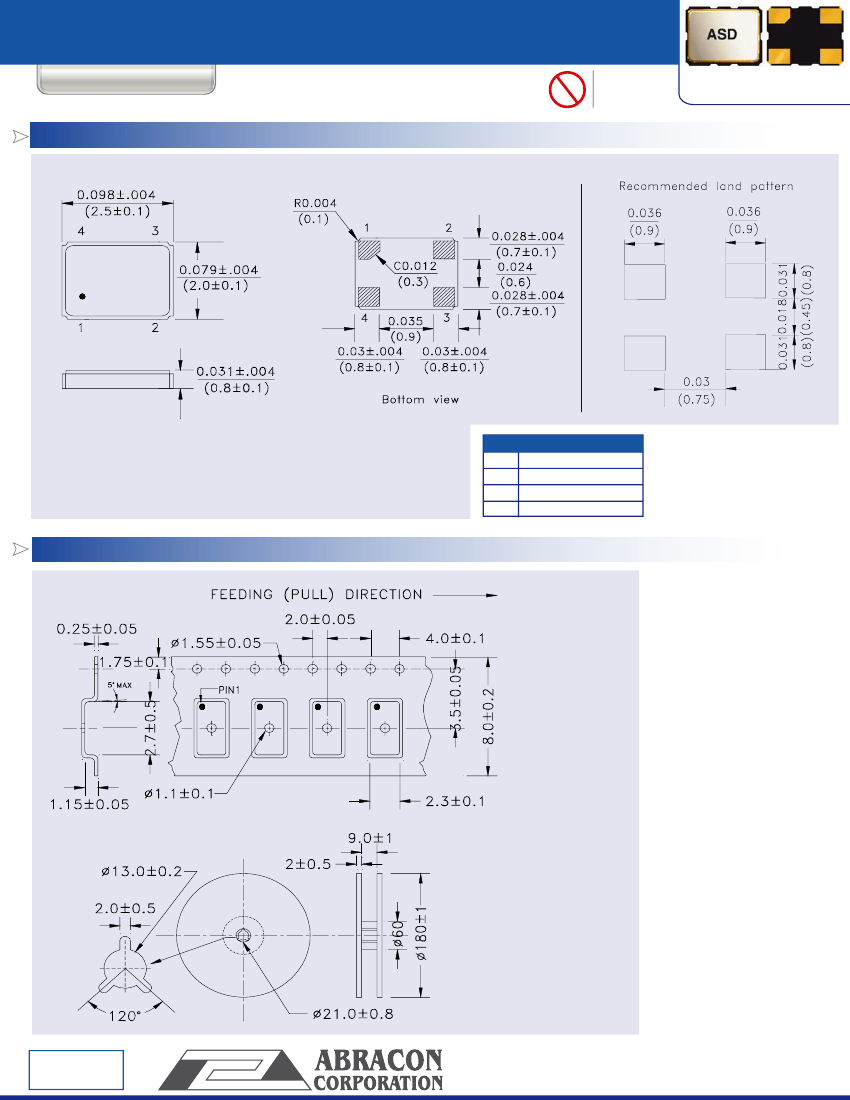

physical size	2.5mm x 2.0mm x 0.8mm
longest rise time	10 ns
Maximum supply voltage	2.9 V
Minimum supply voltage	2.5 V
Nominal supply voltage	2.7 V
surface mount	YES
maximum symmetry	40/60 %
Terminal surface	Silver (Ag)

Preview

Download Datasheet

View All

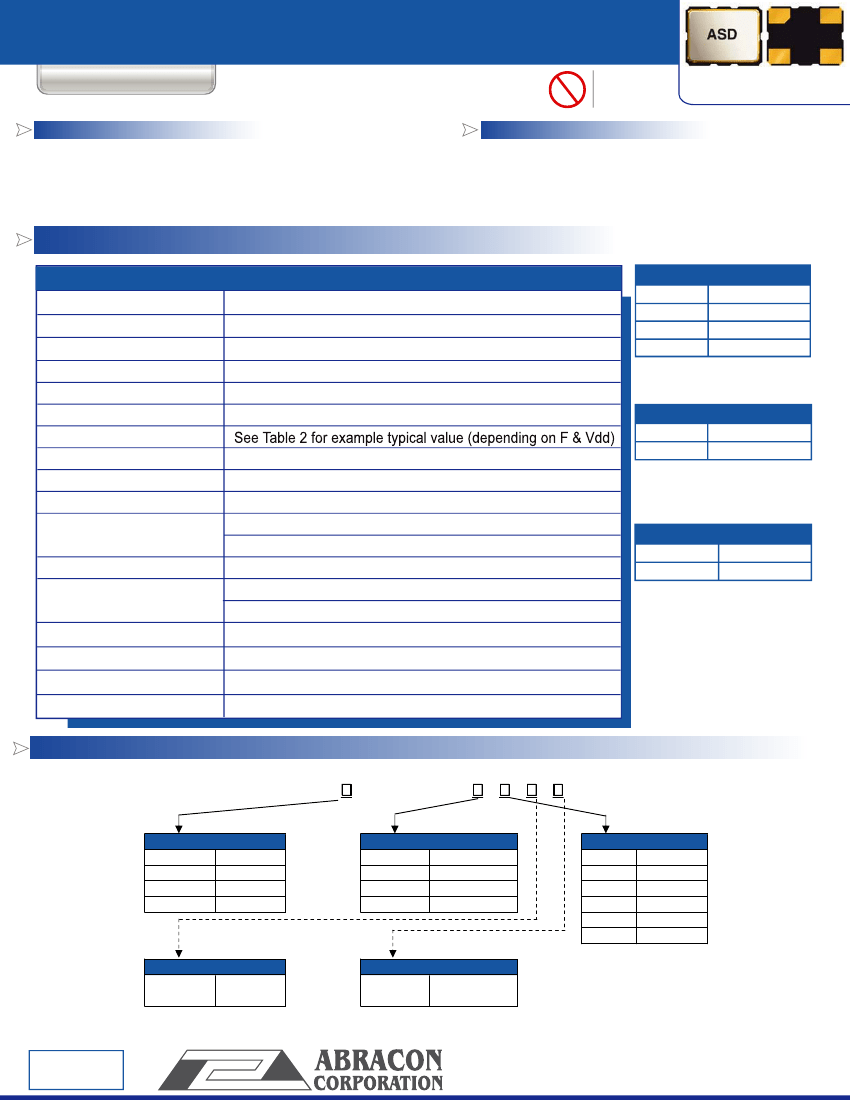

LOW VOLTAGE HCMOS SURFACE-MOUNT

CRYSTAL CLOCK OSCILLATOR

ASD SERIES

FEATURES:

• Lead-Free

• Compact and low in height

• Low current consumption

• Tri state function

• Suitable for high density SMT

• IR reflow capable

• Tight stability option

• Seam sealed package

RoHS

Compliant

2.5 X 2.0 X 0.8mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• CCD clock for VTR Camera

• Equipment connected to PC or PC cards

• Thin equipment

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise and Fall Time (Tr/Tf)

Output Load

Output Voltage

Start-up Time

Tristate Function

(stand-by)

Peak to Peak Jitter

RMS Jitter

Aging at 25°C/year

Disabled Current

ASD Series

1.000 MHz to 80 MHz

-10°C to + 60°C (see options)

- 40°C to + 85°C

± 100 ppm max. (see options)

3.3 ± 0.3 (see table 1)

40/60 % max.@ 1/2Vdd (see options)

See Table 3

15 pF (3TTL), (1TTL for 1.8V version)

VOH = 0.9* Vdd min.

VOL = 0.1* Vdd max.

10ms max.

"1" (VIH >= 0.7* Vdd) or open: Oscillation

"0" (VIL < 0.3* Vdd) : No oscillation/Hi Z

31ps (Typical)

4.3ps (Typical)

± 5ppm max.

15μA max.

TABLE 1

P/N

ASD

ASD1

ASD2

ASD3

Vdd (V)

3.3

±0.3

3.0

±0.3

2.7

±0.2

1.8

±0.18

TABLE 2 - Example Value

I @ Vdd typ.

20MHz

5mA@3.0V

50MHz

8mA@3.0V

(depending on F and Vdd)

TABLE 3

Freq. (MHz) Tr/Tf

(ns max)

1.0 ~ 34.99

10ns

35.0 ~ 80.0

6ns

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ASD - Frequency -

P/N and Vdd (V)

Blank

3.3±0.3

3.0±0.3

2.7±0.2

1.8±0.18

Freq. Stability

R15

± 15 ppm (*)

± 20 ppm (*1)

± 25 ppm (*2)

± 30 ppm

± 35 ppm

± 50 ppm

*: Standard Temp Only

*1 : Standard and E only

*2 : Standard, E, F,and N only

Operating Temp.

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Symmetry Option

45/55%

at 1/2 Vdd

Packaging

Tape and Reel

(1000pcs/reel)

REVISED: 5.10.07

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
