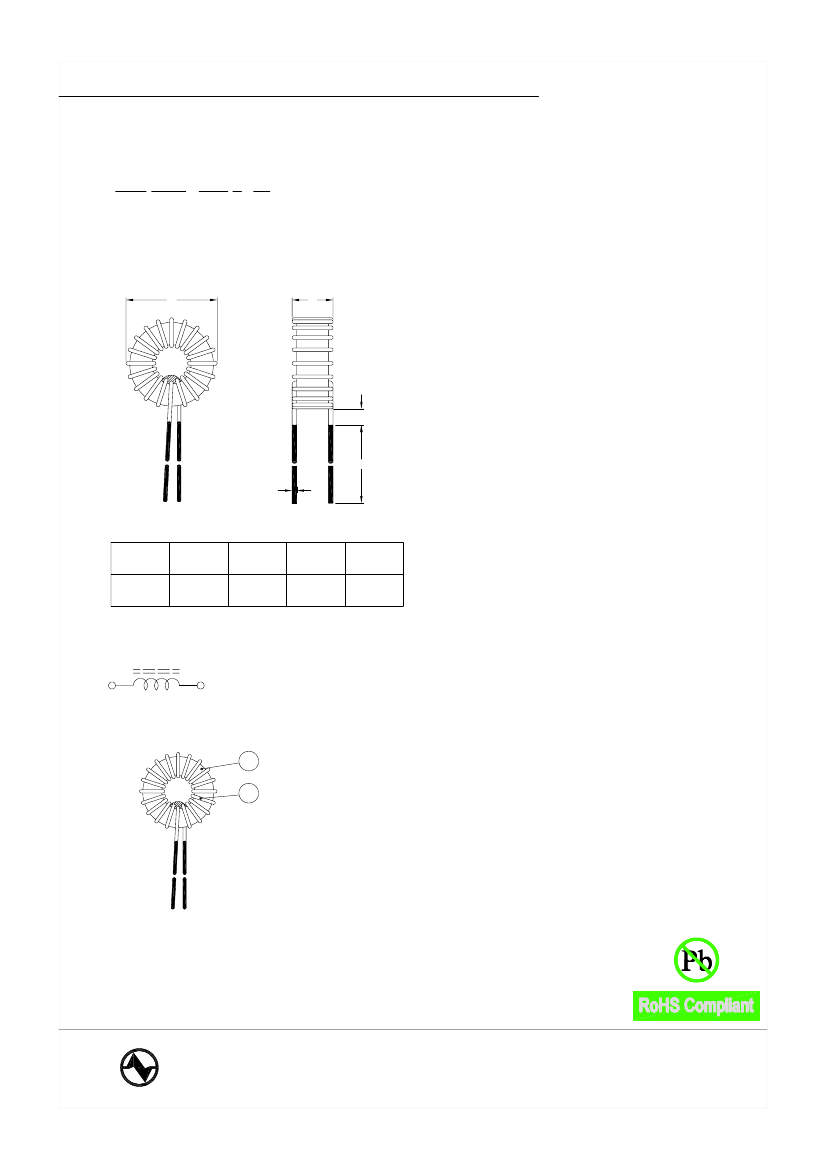

TOROIDAL INDUCTOR
1. PART NO. EXPRESSION :
TBC2313 SERIES
TBC2313-4R7M-26
(a)
(b)
(c)
(d)
(e)
(a) Series code
(b) Dimension code
(c) Inductance code : 4R7 = 4.7uH
(d) Tolerance code : M = ±20%
(e) Material code
2. CONFIGURATION & DIMENSIONS :
A
B
ØW
A
B
C
E
23.00 Max. 13.00 Max. 15.00±3.0 1.00 Max.
0.80 Ref.
3. SCHEMATIC :
4. MATERIALS :
a
b
(a) Core : Iron Powder Core
(b) Wire : Enamelled Copper Wire
NOTE : Specifications subject to change without notice. Please check our website for latest information.
C
E
Unit:m/m
ØW
19.06.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
TOROIDAL INDUCTOR
5. GENERAL SPECIFICATION :
a) Temp. rise : 40°C Max. at Irms
b) Storage temp. : -40°C to +125°C
c) Operating temp. : -25°C to +105°C
TBC2313 SERIES
6. ELECTRICAL CHARACTERISTICS :
Inductance
( uH )
±20%
50.0
50.0
90.0
90.0
140.0
140.0
DC Resistance
(m )
Max.
30
30
42
42
57
57
Irms
(A)
3.60
3.60
3.00
3.00
2.60
2.60
Isat
(A)
3.25
3.90
2.40
2.95
1.95
2.35
Part No.
TBC2313-500M-26
TBC2313-500M-52
TBC2313-900M-26
TBC2313-900M-52
TBC2313-141M-26
TBC2313-141M-52
NOTE : Specifications subject to change without notice. Please check our website for latest information.
19.06.2008
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
