BK/ABC-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> BK/ABC-12

BK/ABC-12: DescriptionElectric Fuse, Fast Blow, 12A, 250VAC, 125VDC, 10000A (IR), Inline/holder,; CategoryCircuit protection Circuit protection; File Size78KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric Compare View All

BK/ABC-12 Overview

Electric Fuse, Fast Blow, 12A, 250VAC, 125VDC, 10000A (IR), Inline/holder,

BK/ABC-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT
Fusing characteristics	FAST
body height	31.75 mm
Body length or diameter	6.35 mm
Circuit protection type	ELECTRIC FUSE
Installation features	INLINE/HOLDER
method of packing	BULK
physical size	6.35mm x 31.75mm
Rated breaking capacity	10000 A
Rated current	12 A
Rated voltage (AC)	250 V
Rated voltage (DC)	125 V
Guideline	CE
surface mount	NO
Terminal shape	END CAP

Preview

Download Datasheet

View All

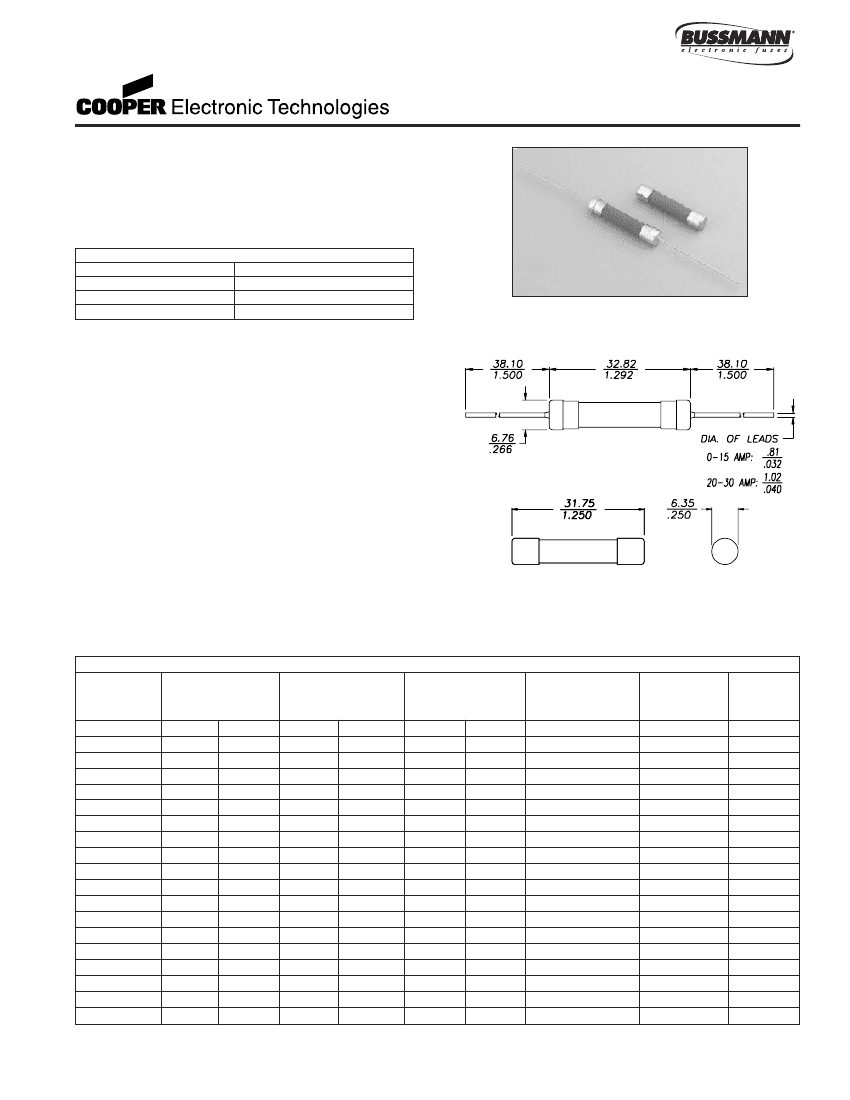

1/4" x 1-1/4" Fuses

ABC Series, Fast Acting, Ceramic Tube

Description

• Fast-acting, ceramic tube

• Optional leaded version available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Ceramic tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

110%

4 Hours Minimum

135%

60 Minutes maximum

200%

120 Seconds Maximum

Approvals

• UL Listed Guide & File numbers (ABC 1/4 - 15A):

JDYX & E19180.

• UL Recognition Guide & File numbers (ABC 20 - 30A):

JDYX2 & E19180.

• CSA Certification Record No: 053787 C 000 &

Class No: 1422 01 & 1422 30.

Environmental Data

• Shock: 1/4A and 1/2A – MIL-STD-202,

Method 213, Test Condition I;

1A thru 30A – MIL-STD-202, Method 207,

(HI Shock)

• Vibration: 1/4A thru 30A – MIL-STD-202,

Method 204, Test Condition C (Except 5g, 500HZ)

Ordering

• Specify product code, option code and packaging code

Dimensions

(

⁄

)

Drawing Not to Scale

SPECIFICATIONS

Product

Code

ABC-1/4

ABC-1/2

ABC-3/4

ABC-1

ABC-1-1/2

ABC-2

ABC-2-1/2

ABC-3

ABC-4

ABC-5

ABC-6

ABC-7

ABC-8

ABC-10

ABC-12

ABC-15

ABC-20

ABC-25

ABC-30

Voltage

Rating

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

250V

125V

AC Interrupting

Rating

250V

125V

35A

10000A

35A

10000A

35A

10000A

35A

10000A

100A

10000A

100A

10000A

100A

10000A

100A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

200A

10000A

750A

10000A

750A

10000A

400A

1000A

DC Interrupting

Rating

125V

75V

10000A

400A

1000A

400A

1000A

Typical DC Cold

Resistance**

(ohms)

3.000

0.788

0.303

0.197

0.1175

0.0755

0.05875

0.0435

0.02975

0.0286

0.02315

0.0183

0.0146

0.01205

0.0068

0.005425

0.00366

0.00263

0.002225

Typical

Melting I

t†

0.02

0.19

0.8

1.4

2.9

4.2

8.53

19.5

29.1

16.4

31.6

73.2

111.9

215.6

129.6

200.2

550.8

839.3

1,429

Typical

Voltage

Drop‡

3.25

0.51

0.42

0.35

0.25

0.26

0.25

0.23

0.24

0.20

0.17

0.15

0.11

0.12

0.13

0.12

0.14

** DC Cold Resistance (Measured at

≤10%

of rated current)

† Typical Melting I

t (A

Sec) (I

t was measured at listed interrupting rating and rated voltage. Measured at 70% to 80% power factor on AC)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C±3°C ambient temperature at rated current)

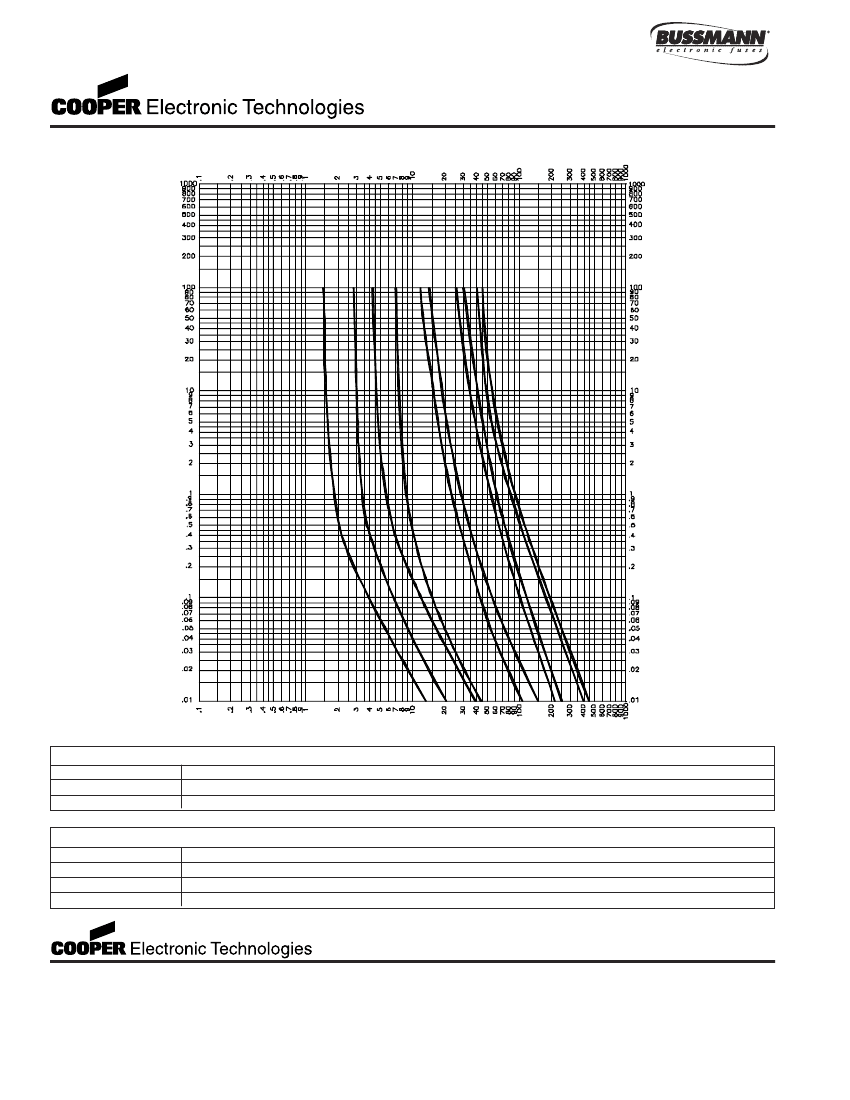

BK/ABC-12 Related Products

	BK/ABC-12	BK/ABC-3/4	BK/ABC-4	BK/ABC-6	BK/ABC-15	BK/ABC-25	BK/ABC-1/2	BK/ABC-10
Description	Electric Fuse, Fast Blow, 12A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.75A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 4A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 6A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 15A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 25A, 250VAC, 125VDC, 200A (IR), Inline/holder,	Electric Fuse, Fast Blow, 0.5A, 250VAC, 125VDC, 10000A (IR), Inline/holder,	Electric Fuse, Fast Blow, 10A, 250VAC, 125VDC, 10000A (IR), Inline/holder,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Maker	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton	Eaton
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	INTERRUPTING CURRENT-MAX(DC): 400 A; RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT	RESPONSE TIME: 120 SEC MAX AT 200% RATED CURRENT
Fusing characteristics	FAST	FAST	FAST	FAST	FAST	FAST	FAST	FAST
body height	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm	31.75 mm
Body length or diameter	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm	6.35mm x 31.75mm
Rated breaking capacity	10000 A	10000 A	10000 A	10000 A	10000 A	200 A	10000 A	10000 A
Rated current	12 A	0.75 A	4 A	6 A	15 A	25 A	0.5 A	10 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Rated voltage (DC)	125 V	125 V	125 V	125 V	125 V	125 V	125 V	125 V
Guideline	CE	CE	CE	CE	CE	CE	CE	CE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
