ICA-322-ZWTT-2 datasheet, PDF - EEWORLD Datasheet

ICA-322-ZWTT-2: DescriptionIC Socket, DIP22, 22 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Wire Wrap,; CategoryThe connector socket; File Size191KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

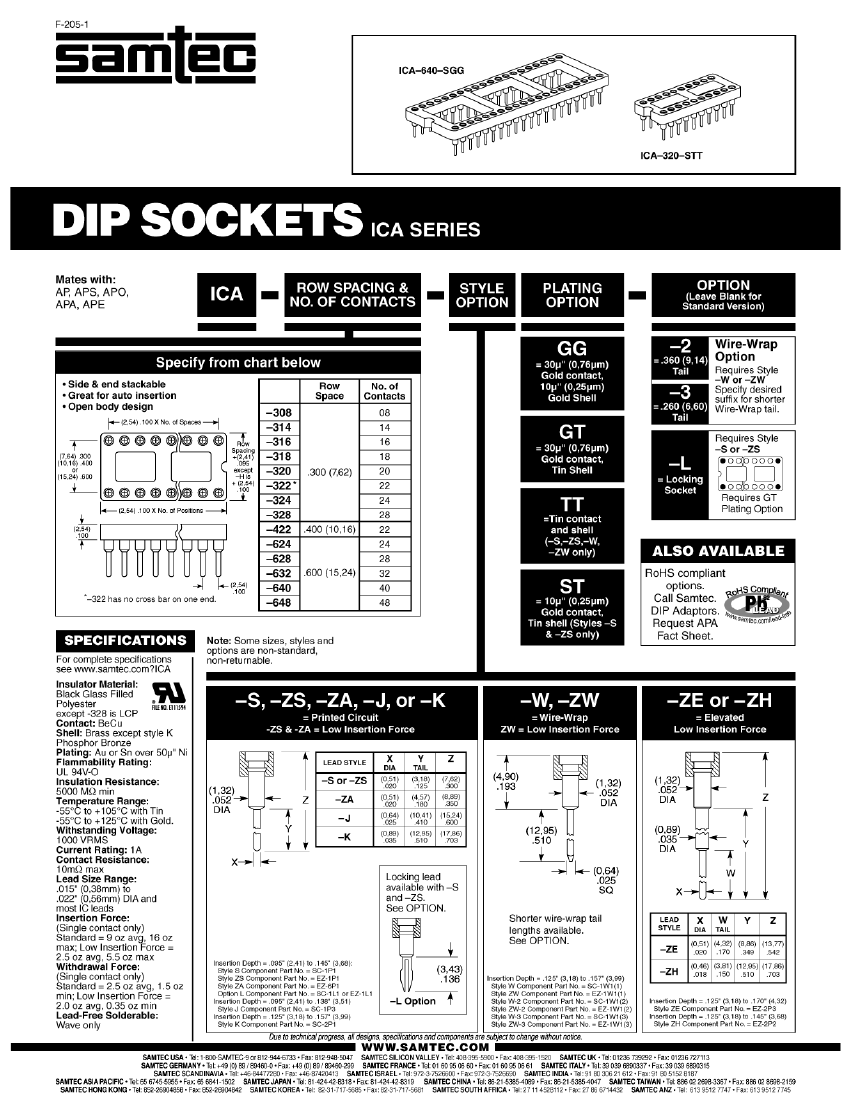

Download Datasheet Parametric View All

ICA-322-ZWTT-2 Overview

IC Socket, DIP22, 22 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Wire Wrap,

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.395 inch
subject depth	0.1 inch
body length	1.1 inch
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact material	BERYLLIUM COPPER ALLOY
Contact style	MACHINE SCREW
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP22
Dielectric withstand voltage	1000VAC V
Shell material	POLYESTER
Insulation resistance	5000000000 Ω
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	22
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
