BK/C518-3.5AS: DescriptionFAST BLOW ELECTRIC FUSE, 3.5A, 250VAC, 100A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size138KB，2 Pages; ManufacturerEaton

Download Datasheet Parametric View All

BK/C518-3.5AS Overview

FAST BLOW ELECTRIC FUSE, 3.5A, 250VAC, 100A (IR), THROUGH HOLE

BK/C518-3.5AS Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	15.2 mm
Body length or diameter	5.5 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e0
Joule integral nominal	11 J
Manufacturer's serial number	C518
Installation features	THROUGH HOLE
method of packing	BOX
physical size	5.5mm x 15.2mm
Rated breaking capacity	100 A
Rated current	3.5 A
Rated voltage (AC)	250 V
Guideline	CSA; UL
surface mount	NO
Terminal surface	TIN LEAD
Terminal shape	PIN WIRE

Preview

Download Datasheet

View All

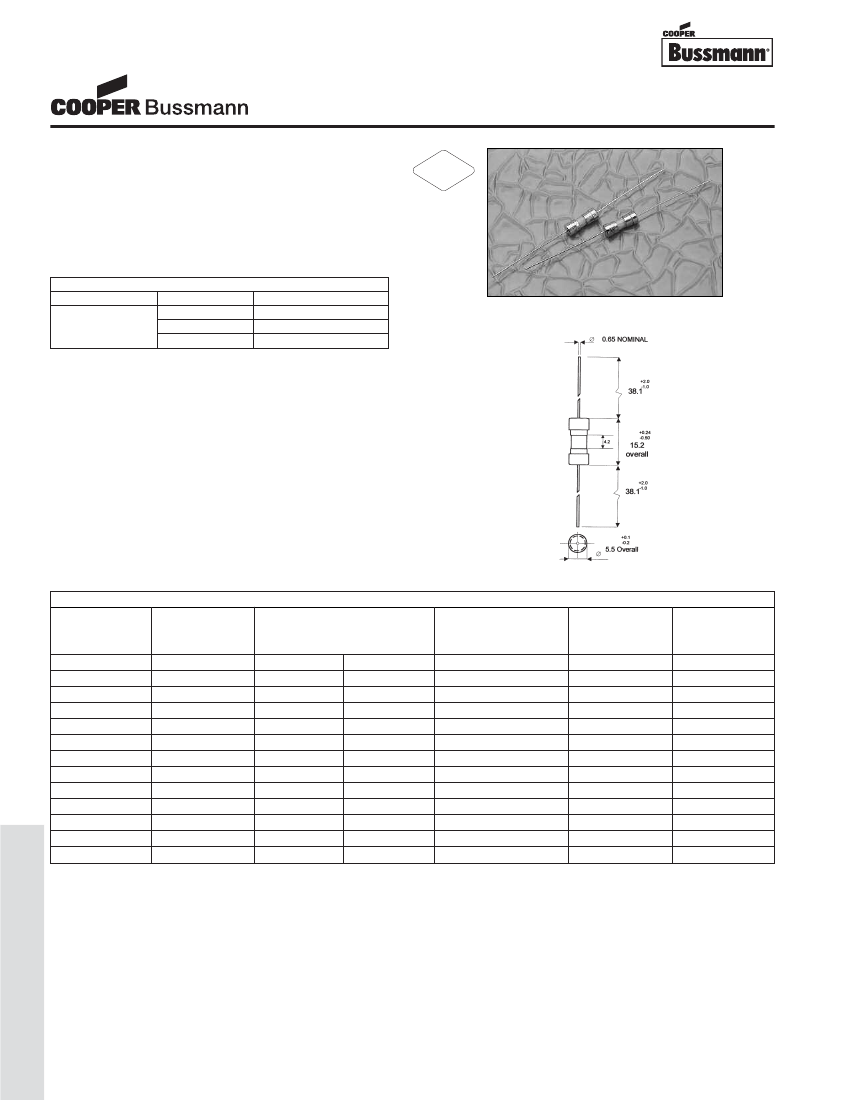

5mm x 15mm Fuses

C518 Series, Fast Acting, Glass Tube

Description

• Axial leaded fast acting

• 5mm x 15mm physical size

• Glass tube, nickel-plated brass endcap construction

• Leads are plated with 95% tin, 5% lead

• Optional sleeve is flexible flouropolymer

(U.L. flammability rating VW-1).

• UL Listed product meets standard UL 248-14

ELECTRICAL CHARACTERISTICS

Rated Current

Amp Rating

Opening Time

100%

None

100mA-5A

135%

60 minutes max.

200%

2 seconds max.

RoHS

2002/95/EC

Dimensions

(mm)

Drawing Not to Scale

Agency Information

• UL Listed Card: Guide JDYX, File E19180

• CSA Certification Card: Class 1422-01, LR65063

Ordering

• Specify packaging, product, and option code

• For -R option, drop mA or A from product code

(i.e. C518-3-R)

• With TR2 packaging code, lead wire length is 20.3mm

SPECIFICATIONS

Product Code

C518-100mA

C518-125mA

C518-250mA

C518-375mA

C518-500mA

C518-750mA

C518-1.5A

C518-2A

C518-2.5A

C518-3A

C518-3.5A

C518-4A

C518-5A

Traditional Ferrule Fuses - Ferrule Type

Voltage

Rating

AC

250V

Interrupting Rating

at Rated Voltage

250VAC

125VAC

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

35A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

100A

10,000A

200A

10,000A

Typical DC Cold

Resistance*

(ohms)

22.30

15.20

5.66

2.53

1.66

0.91

0.900

0.064

0.046

0.038

0.032

0.022

0.018

Typical

Melting I

2

t†

AC

0.0010

0.0019

0.012

0.039

0.059

0.264

0.800

1.9

2.9

6.1

9.7

16.6

22.4

Typical

Voltage

Drop (mV)‡

2230

1930

1450

968

845

686

135

136

121

116

115

88

91

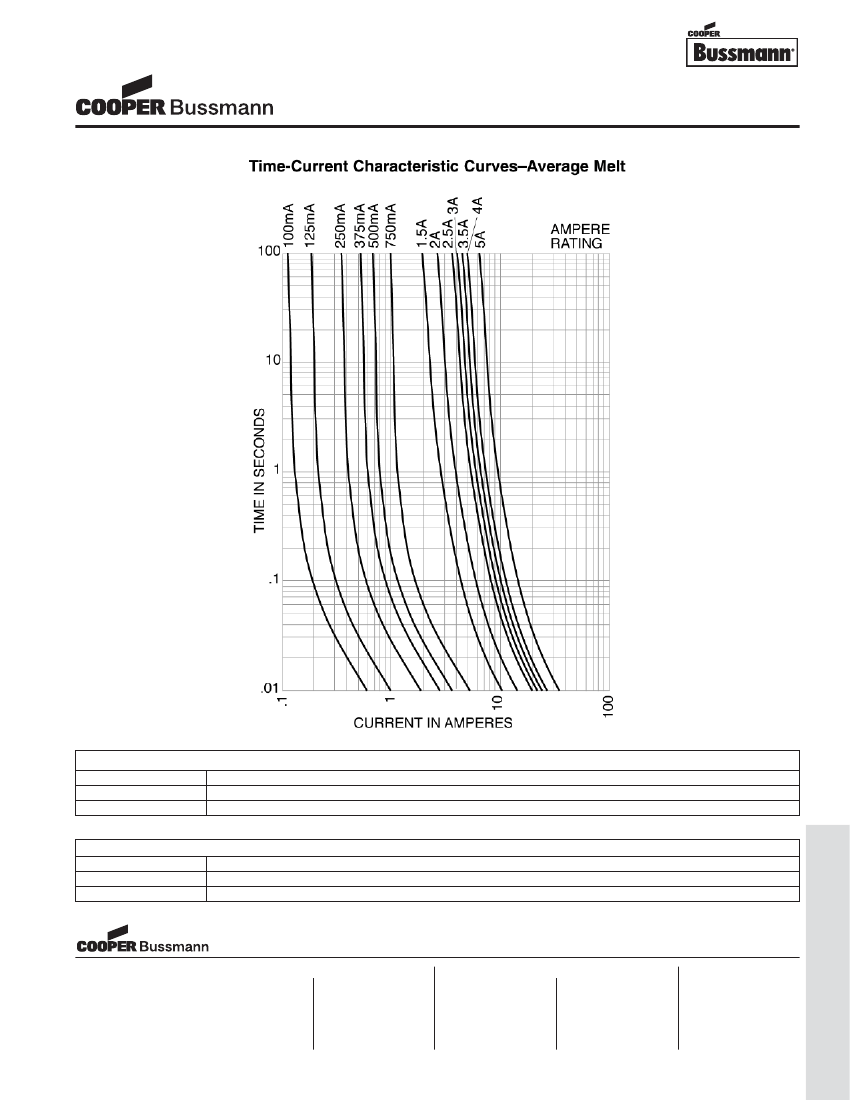

* DC Cold Resistance (Measured at <10% of rated current)

† Typical Melting I

2

t (A

2

Sec) (Minimum at 10 times rated current)

‡ Typical Voltage Drop (Voltage drop was measured at 20°C ambient temperature at rated current)
