MC1411 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> MC1411

MC1411: Description0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR; Categorysemiconductor Discrete semiconductor; File Size198KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC1411 Overview

0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR

MC1411 Parametric

Parameter Name	Attribute value
Number of terminals	16
Transistor polarity	NPN
Maximum collector current	0.5000 A
Maximum Collector-Emitter Voltage	50 V
Processing package description	Plastic, DIP-16
state	TRANSFERRED
packaging shape	Rectangle
Package Size	IN-line
Terminal form	THROUGH-hole
Terminal location	pair
Packaging Materials	Plastic/Epoxy
structure	COMPLEX
Number of components	7
transistor applications	switch
Transistor component materials	silicon
Transistor type	universal power supply
Minimum DC amplification factor	1000

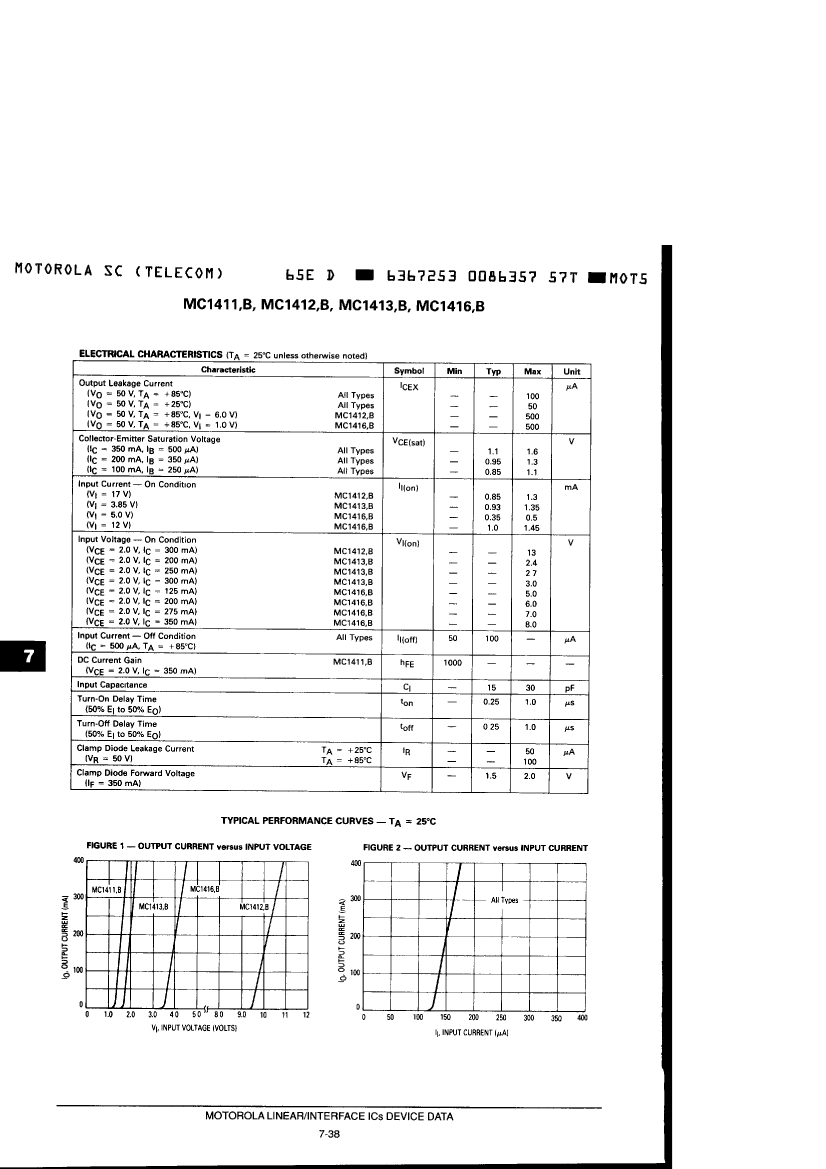

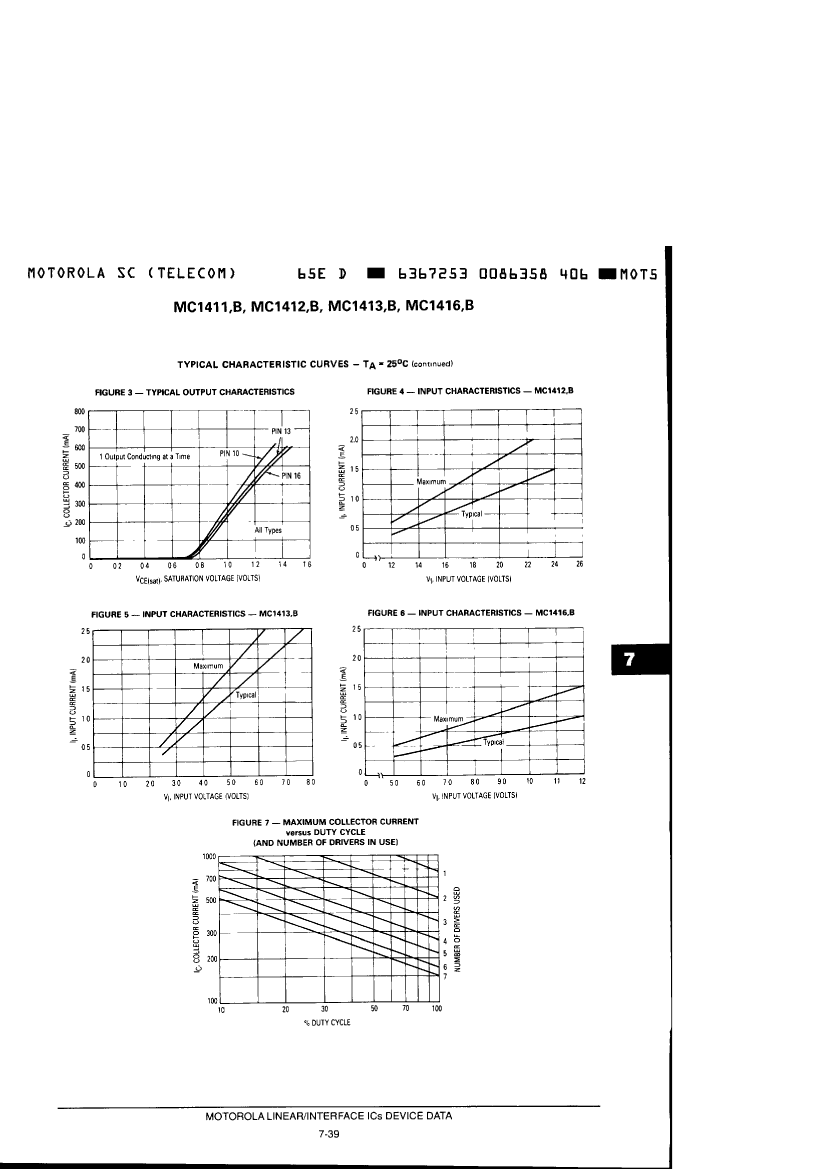

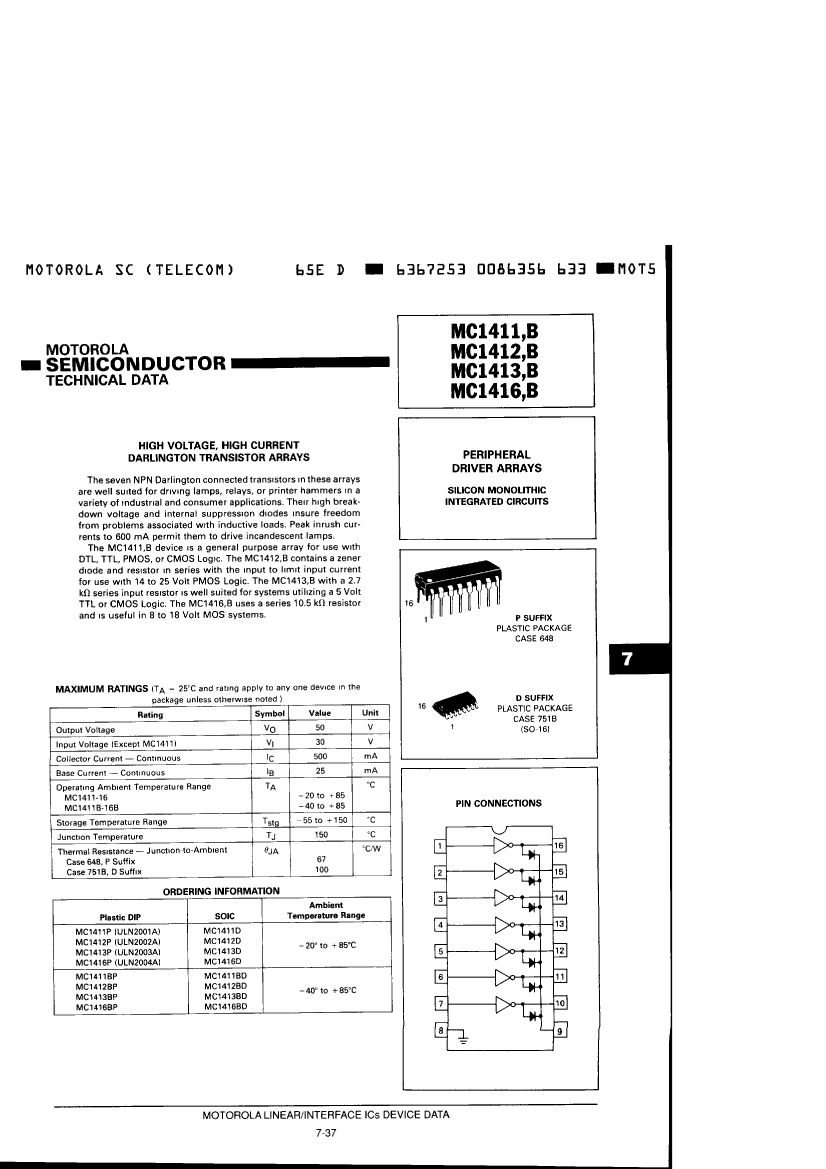

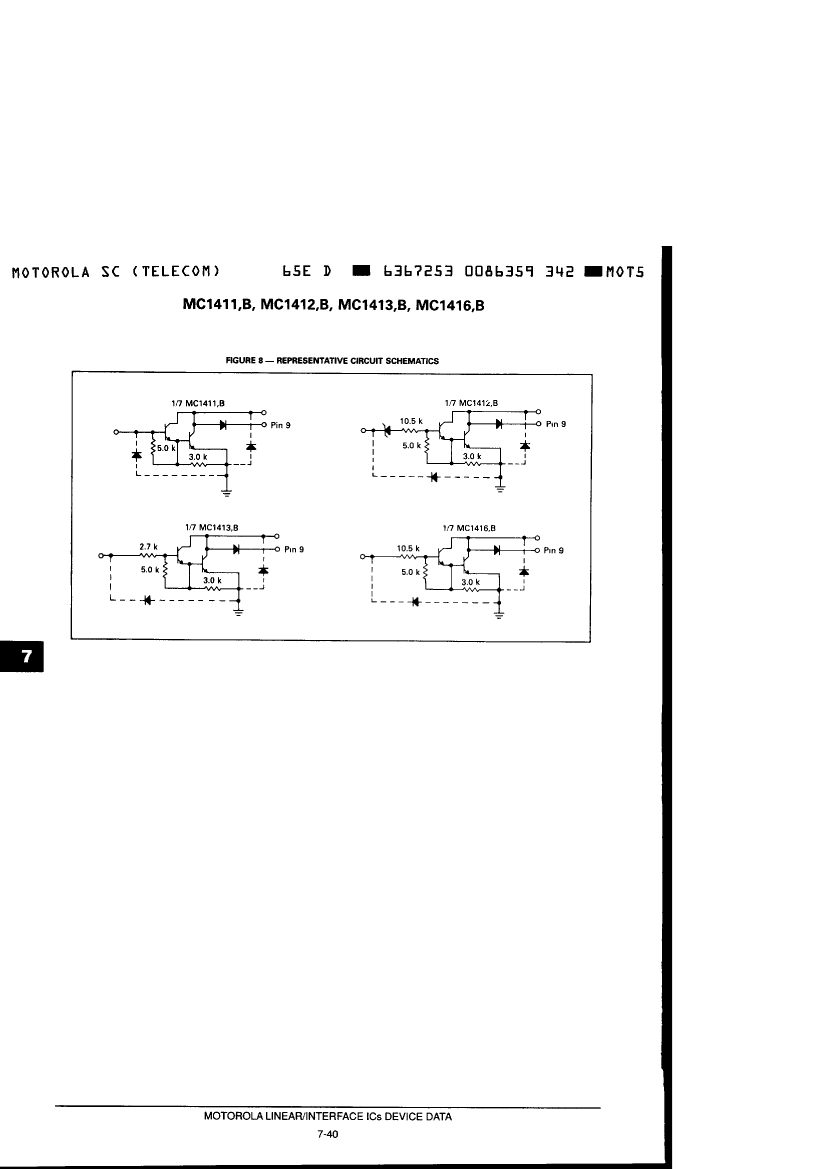

Preview

Download Datasheet

View All

MC1411 Related Products

	MC1411	MC1412	MC1412D	MC1412BP	MC1412BD	MC1411BP	MC1412P	MC1411BD	MC1411P	MC1411D
Description	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR	0.5 A, 50 V, 7 CHANNEL, NPN, Si, POWER TRANSISTOR
Number of terminals	16	16	-	16	16	16	16	-	16	-
Terminal form	THROUGH-hole	THROUGH-hole	-	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-
Terminal location	pair	pair	-	DUAL	DUAL	DUAL	DUAL	-	DUAL	-
Number of components	7	7	-	7	7	7	7	-	7	-
transistor applications	switch	switch	-	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING	-
Transistor component materials	silicon	silicon	-	SILICON	SILICON	SILICON	SILICON	-	SILICON	-
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
package instruction	-	-	SMALL OUTLINE, R-PDSO-G16	IN-LINE, R-PDIP-T16	SMALL OUTLINE, R-PDSO-G16	IN-LINE, R-PDIP-T16	IN-LINE, R-PDIP-T16	SMALL OUTLINE, R-PDSO-G16	IN-LINE, R-PDIP-T16	SMALL OUTLINE, R-PDSO-G16
Reach Compliance Code	-	-	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	-	EAR99	-	EAR99
