Low-Loss Matched-Impedance Coaxial Contacts

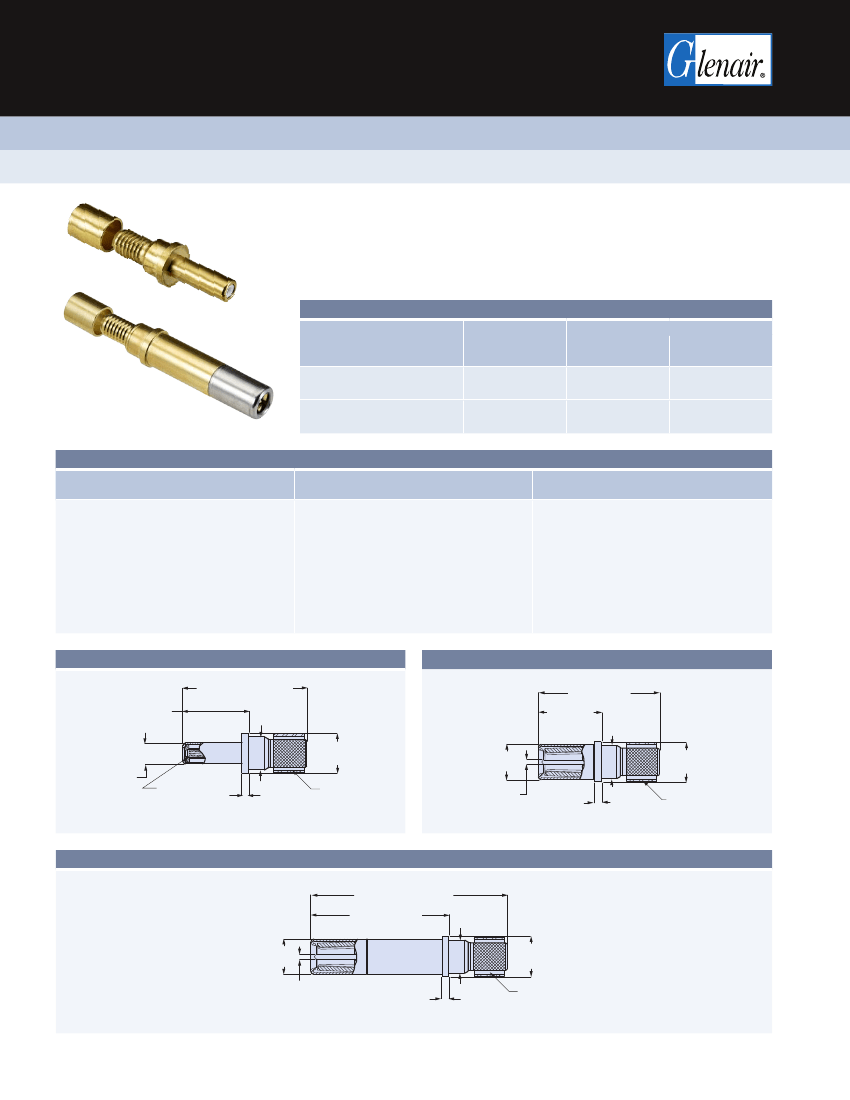

Size #12 75 Ohm Matched-Impedance Coaxial Contacts
75 ohm coax contactsprovide DC – 3 GHz frequency range. Crimp termination. Supplied
as unassembled kit with contact body, center contact and outer ferrule. These snap-in,
rear-release contacts fit Glenair Series 80 Mighty Mouse, Series 79 Micro-Crimp® and MIL-
DTL-38999 connectors with size 12 contact cavities. Gold-plated copper alloy, fluoroplastic
insulator.
Size 12 75 Ohm Matched-Impedance Coaxial Contacts
RG Cable
RG179
(M17/94-RG179)
Pin Contact
852-103-02
852-103-01
Socket Contact
M38999 Series I, M38999 Series II
III, IV
Series 79, 80
852-106-02
852-106-01
852-104-02
852-104-01
V75268, V76261, V73263
(PIC™ Wire and Cable)
Technical Data
Specifications
Q
Q
Q
Q
Q
Q
Q
Q
Construction
Q
Connector Compatibility
Q
Q
Q
Q
Operating temperature: -650C. to +2000C.
Dielectric withstanding voltage: 500 Vac
Current rating: 1 ampere
VSWR: 1.25:1 max. @ 3 GHz
75 ohm nominal impedance
Durability: 500 mating cycles
Shock: EIA-364-27 condition D
Vibration: EIA-364-28 condition VI, letter J
Q
Q
Center contact, body,crimp sleeve:
copper alloy, 50 microinches gold over
nickel plating
Insulator:
fluoroplastic
Hood:
stainless steel, passivated
MIL-DTL-38999 Series I, II, III and IV
Glenair Series 23 SuperNine®
Glenair Series 80 Mighty Mouse
Glenair Series 79 Micro-Crimp®
Pin Contact 852-103-01, -02
.570 (14.48) MAX
.300/.295
(7.62/7.49)
.151/.148
(3.84/3.76)
.182/.179
(4.62/4.55)
Ø.095/.093
(2.41/2.36)
SKT TO MATE
CRIMP
.033/.029
WITH
FERRULE
(0.83/0.74)
.0205/.0195
(0.521/0.495) PIN
Socket Contact 852-104-01, -02
.560 (14.22)
MAX
.289/.279
(7.34/7.09) .151/.148
(3.84/3.76)
.161/.158
(4.09/4.01)
Ø .0205/.0195
(0.521/0.495)
.033/.029
(0.83/0.74)
Ø.182/.179
(4.62/4.55)
CRIMP FERRULE
Pin Contact 852-106-01, -02
.896 (22.76) MAX
.626/.620
(15.90/15.75)
Ø.161/.158
(4.09/4.01)
Ø .0205/.0195
(0.521/0.495)
.151/.148
(3.84/3.76)
Ø.182/.179
(4.62/4.55)
CRIMP
.033/.029 FERRULE
(0.83/0.74)
16
© 2016 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • High-Speed Contacts
Dimensions in Inches (millimeters) are subject to change without notice.
RF, Microwave and Datalink Contacts
for MIL-DTL-38999, SuperNine
®
, Mighty Mouse and
Micro-Crimp
®
Connectors
Low-Loss Matched-Impedance Coaxial Contacts
Size #12 75 Ohm Matched-Impedance Coaxial Contacts

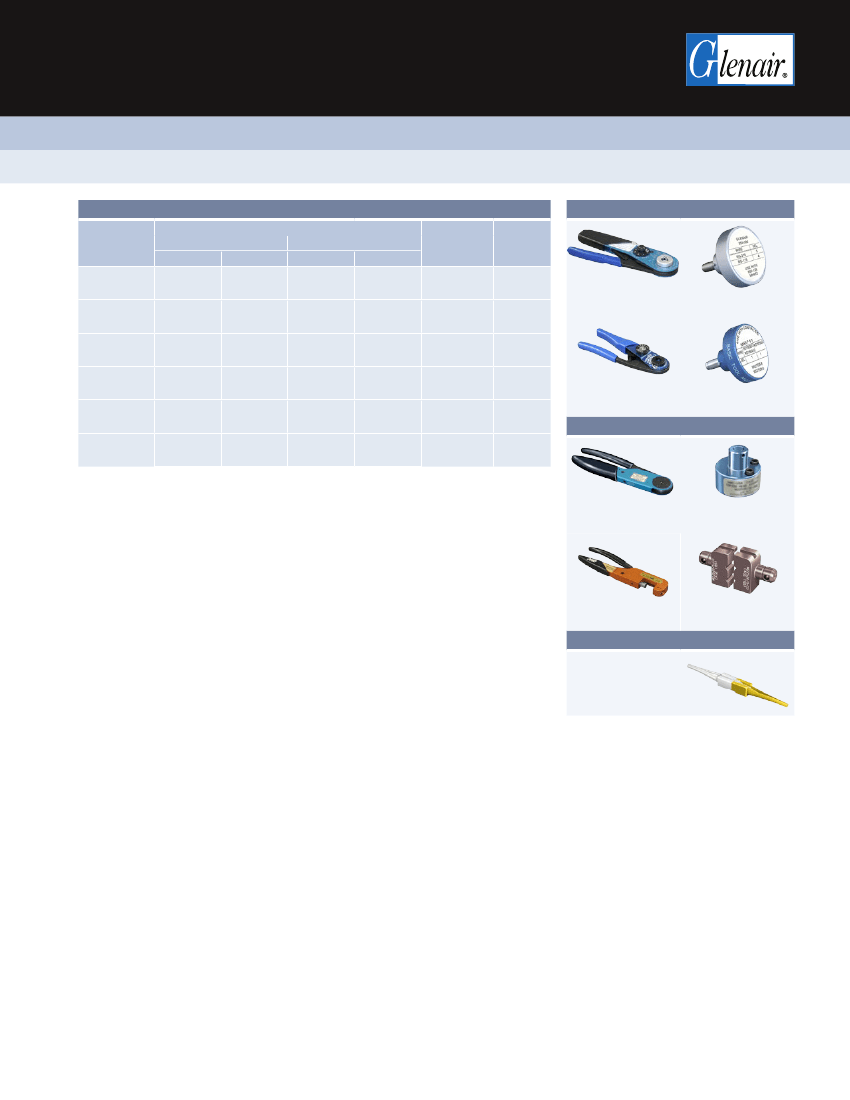

Crimp Tools, Installation/Removal Tool, Assembly Instruction Sheet
Contact Part
Number
852-103-01
852-103-02
852-104-01
852-104-02
852-106-01
852-106-02
Inner Contact Crimp Tools
Crimp Tools
Inner Contact
Shield Crimp Sleeve
Crimper
Positioner
Crimper
Positioner
809-128
(MH992)
(MH992)
(MH992)
(MH992)
Insertion/
Removal
Tool
(M81969/14-04)
(M81969/14-04)
(M81969/14-04)
(M81969/14-04)
(M81969/14-04)
(M81969/14-04)
Assembly
Instruction
Sheet
AI85075
AI85024
AI85075
AI85001
AI85088
AI85031
859-006
(K1721)
(K1721)
(K1721)
(K1721)
(M22520/31-01)
(M22520/5-01)
(M22520/31-01)
(M22520/5-01)
(M22520/31-01)
(M22520/5-01)
809-133
859-128
(GP959)
(M22520/5-03)
809-132
809-132
809-132
809-132
809-132
809-132
809-128
809-128
809-128
(M22520/2-01)
(M22520/2-01)
859-006
859-006
859-006
(M22520/2-31)
(M22520/2-31)
809-129
809-133
809-130
859-128
(GP959)
809-128
(
MH992
)
859-006
(
K1721
)
809-129
809-133
(M22520/5-03)
809-130
859-128
(GP959)
809-015
809-015
859-050
859-050
(
M22520/2-01
)
809-015
(
M22520/2-31
)
859-050
Shield Crimp Tool
809-129
(M22520/5-03)
809-130
(
M22520/31-01
)
809-133
859-128
(
GP959
)
(
M22520/5-01
)
809-129
(
M22520/5-03
)
809-130
Installation/Removal Tool
809-132
(
M81969/14-04
)
