DC-6.0 GHz InGaP HBT Packaged
Matched Gain Block Amplifier
April 2007 - Rev 19-Apr-07
CGB7006-SC
Features
33.5 dBm Output IP3 @ 850 MHz
4.1 dB Noise Figure @ 850 MHz
15.2 dB Gain @ 850 MHz
18.0 dBm P1dB @ 850 MHz
Low Performance Variation Over Temperature
SOT-89 Package
100% DC On-Wafer Testing
ESD Protection on All Die: >1000V HBM
Low Thermal Resistance: <85ºC/Watt
Functional Block Diagram (SOT
-89)
Ground
4
1
Input
2
3
Ground Output
Bias
Absolute Maximum Ratings
Max Device Voltage
Max Device Current
Max Device Dissipated Power
RF Input Power
Storage Temperature
Junction Temperature
Operating Temperature
Thermal Resistance
EDS (HBM)
+6.0 V
130 mA
0.65 W
+17 dBm
-55ºC to 150ºC
150ºC
-40ºC to +85ºC
80º C/W
1000 V
Description
The CGB7006-SC is a Darlington Configured, high dynamic range,
utility gain block amplifier. Designed for applications operating
within the DC to 6.0 GHz frequency range, Mimix’s broadband,
cascadable, gain block amplifiers are ideal solutions for transmit,
receive and IF applications.
These MMIC amplifiers are available in an industry standard
SOT-89 package. Mimix's InGaP HBT technology and an industry
low thermal resistance offers a thermally robust and reliable gain
block solution.
The InGaP HBT die have extra pads to enable thorough DC
testing. This unique test capability and the inclusion of ESD
protection on all die, significantly enhances the quality, reliability
and ruggedness of these products.
With a single bypass capacitor, optional RF choke and two DC
blocking capacitors, this gain block amplifier offers significant
ease of use in a broad range of applications.
Operation of this device above any of these parameters may cause
permanent damage.
Applications
PA Driver Amp, IF Amp, LO Buffer Amp
Cellular, PCS, GSM, UMTS
Wireless Data and SATCOM
Transmit and Receive Functions
CATV
Electrical Characteristics
Parameter
Temperature (ºC)
Unless otherwise specified, the following specifications are guaranteed at room temperature in a Mimix test fixture.
Min.
850 MHz
Typ.
Max.
Min.
1950 MHz
Typ.
Max.
Min.
2400 MHz
Typ.
Max.
Min.
3500 MHz
Typ.
Max.
Units
Small Signal Gain
Output P1dB
Output IP3
Noise Figure
Operating Current
Input Return Loss
Output Return Loss
Pout @ -45 dBc, ACP
IS-95, 9 Forward Channels
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
+25
-40 to +85
14.0
13.8
17.0
16.5
32.0
31.5
60
57
15
14
18
17
15.2
15.2
18.0
18.0
33.5
33.5
4.1
4.1
64
64
19
9
25
25
12
12
16.4
16.6
13.3
13.1
16.5
16.2
30.5
29.5
5.0
5.3
68
71
60
57
12
11
12
11
14.5
14.5
17.5
17.5
32.0
32.0
4.1
4.1
64
64
17
17
17
17
12
12
15.7
15.9
13.0
12.8
15.8
15.6
29.0
28.5
5.0
5.3
68
71
60
57
13
12
11.0
10.5
14.2
14.2
16.8
16.8
30.5
30.5
4.2
4.2
64
64
17
17
17
17
15.4
15.6
5.0
5.4
68
71
13.5
13.5
15.5
15.5
28.0
28.0
4.4
4.4
64
64
12
12
19
19
dB
dB
dBm
dBm
dBm
dBm
dB
dB
mA
mA
dB
dB
dB
dB
dBm
dBm
Notes: 1. Test Conditions in Mimix eval board, Vs = 8 V, Id = 64 mA Typ., Rbias = 47
2. Values reflect performance in recommended application circuit.
, Zs = Zl = 50
, OIP3 tone spacing = 1 MHz, Pout per tone = 3 dBm.
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 1 of 8
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-6.0 GHz InGaP HBT Packaged
Matched Gain Block Amplifier
April 2007 - Rev 19-Apr-07
CGB7006-SC

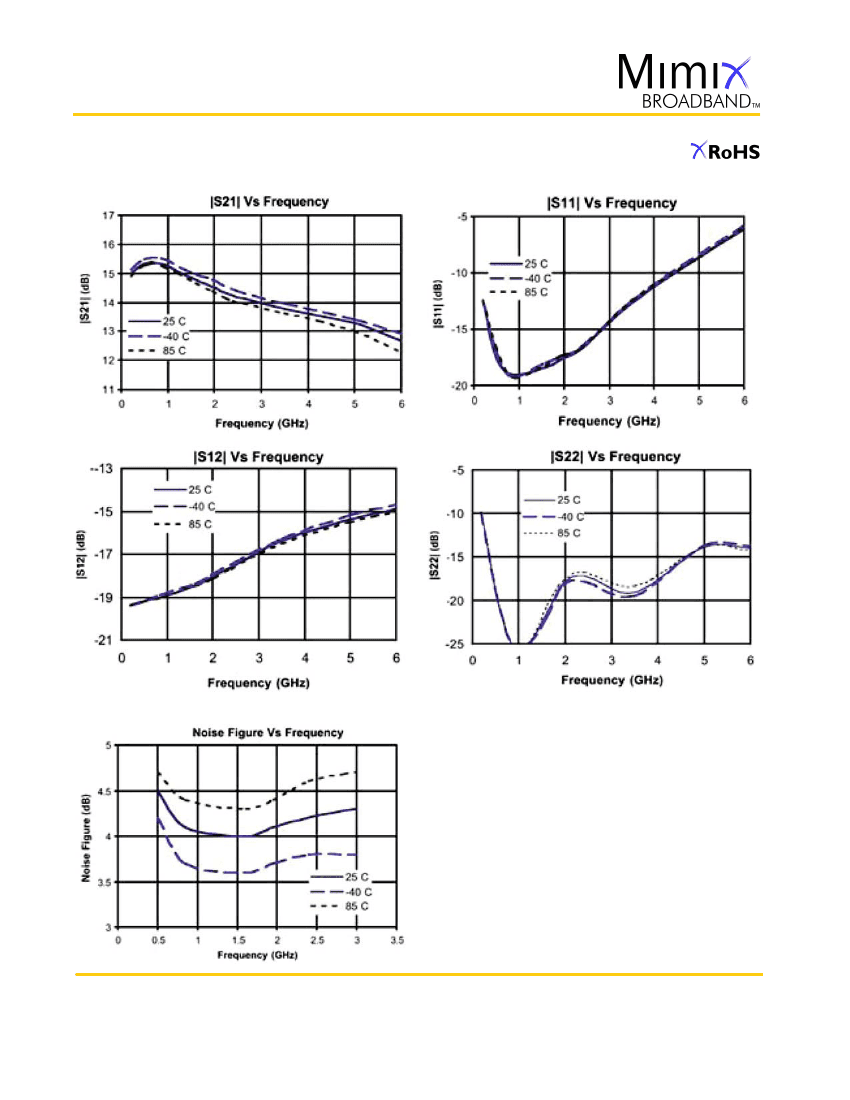

Typical S-Parameter and Noise Performance
Mimix Broadband, Inc., 10795 Rockley Rd., Houston, Texas 77099
Tel: 281.988.4600 Fax: 281.988.4615 mimixbroadband.com
Page 2 of 8
Characteristic Data and Specifications are subject to change without notice.
©2007
Mimix Broadband, Inc.
Export of this item may require appropriate export licensing from the U.S. Government. In purchasing these parts, U.S. Domestic customers accept
their obligation to be compliant with U.S. Export Laws.
DC-6.0 GHz InGaP HBT Packaged
Matched Gain Block Amplifier
April 2007 - Rev 19-Apr-07
CGB7006-SC

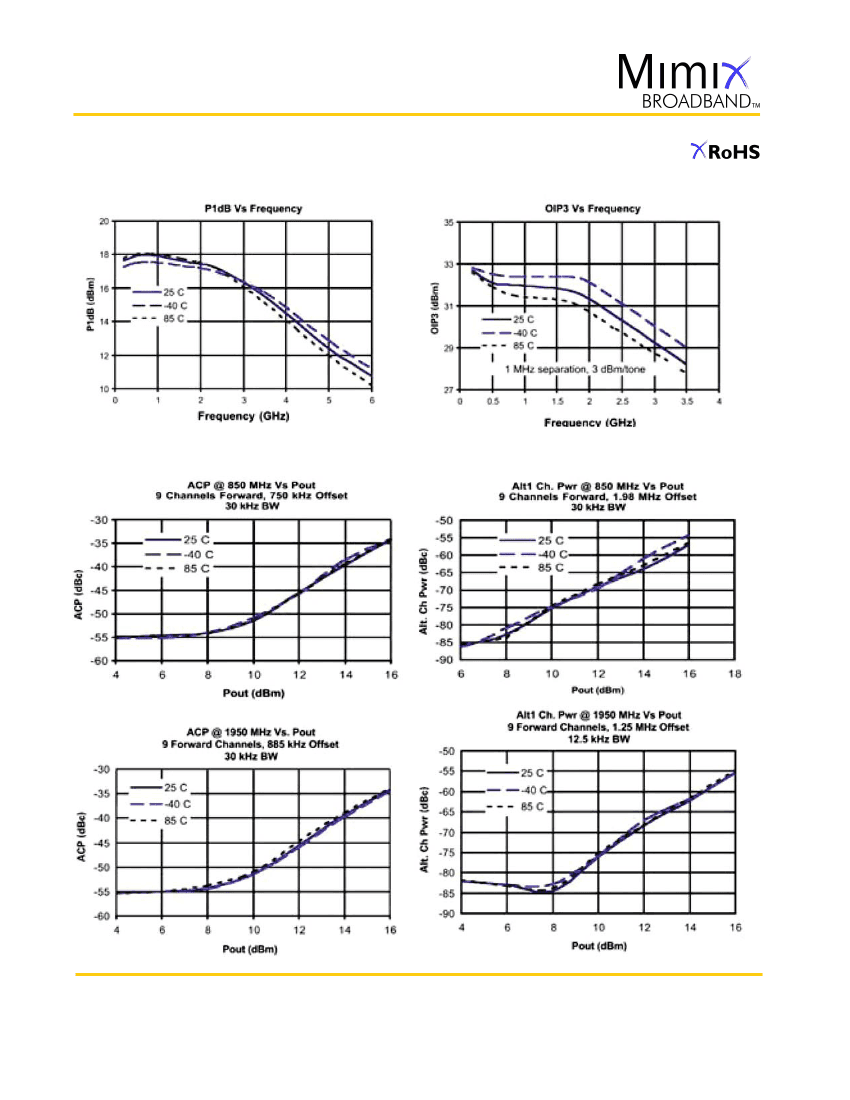

Typical Power and Linearity Performance
