TBU10/15/25/35 SERIES
SILICON BRIDGE RECTIFIERS
REVERSE VOLTAGE
- 50
to
1000Volts
FORWARD CURRENT
- 10/15/25/35
Amperes
TBU
.935(23.7)
.895(22.7)
.15? X23L
(3.8? X5.7L)
HOLE THRU
FEATURES
●
Surge overload rating -240~400 amperes peak
●
Ideal for printed circuit board
●
Reliable low cost construction utilizing
molded plastic technique
●
Plastic material has U/L
300
(7.5)
.748(19.0)
.709(18.0)
.780(19.8)
.740(18.8)
flammability classification 94V-0
●
Mounting postition:Any
1.00
MIN.
(25.4)
.052(1.3)DIA.
.048(1.2)TYP.
.087(2.2)
.071(1.8)
.220(5.6)
.180(4.6)
.244(6.2)
.205(5.2)
Dimensions in inches and (milimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
TBU
10005
15005
25005
35005
50
30
50
10
TBU
10
I
FSM
V
F
I
R
T
J
T
STG
1.0
3.0
240
TBU
15
TBU
1001
1501
2501
3501
100
70
100
TBU
1002
1502
2502
3502
200
140
200
15
3.2
300
TBU
1004
1504
2504
3504
400
280
400
TBU
1006
1506
2506
3506
600
420
600
25
3.6
400
TBU
1008
1508
2508
3508
800
560
800
TBU
1010
1510
2510
3510
1000
700
1000
35
TBU
35
4.2
400
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward (with heatsink Note 2)
Rectified Current
@ T
C
=100℃ (without heatsink)
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Maximum Forward Voltage at 5.0/7.5/12.5/17.5A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Operating Temperature Range
Storage Temperature Range
@ T
J
=25℃
@ T
J
=125℃
SYMBOL
UNIT
V
RRM
V
RMS
V
DC
I
(AV)
V
V
V
A
TBU
25
A
V
uA
℃
℃
1.1
10.0
500
-55 to +125
-55 to +125
NOTES: 1.Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
2.Device mounted on 100mm*100mm*1.6mm cu plate heatsink.
~ 329 ~

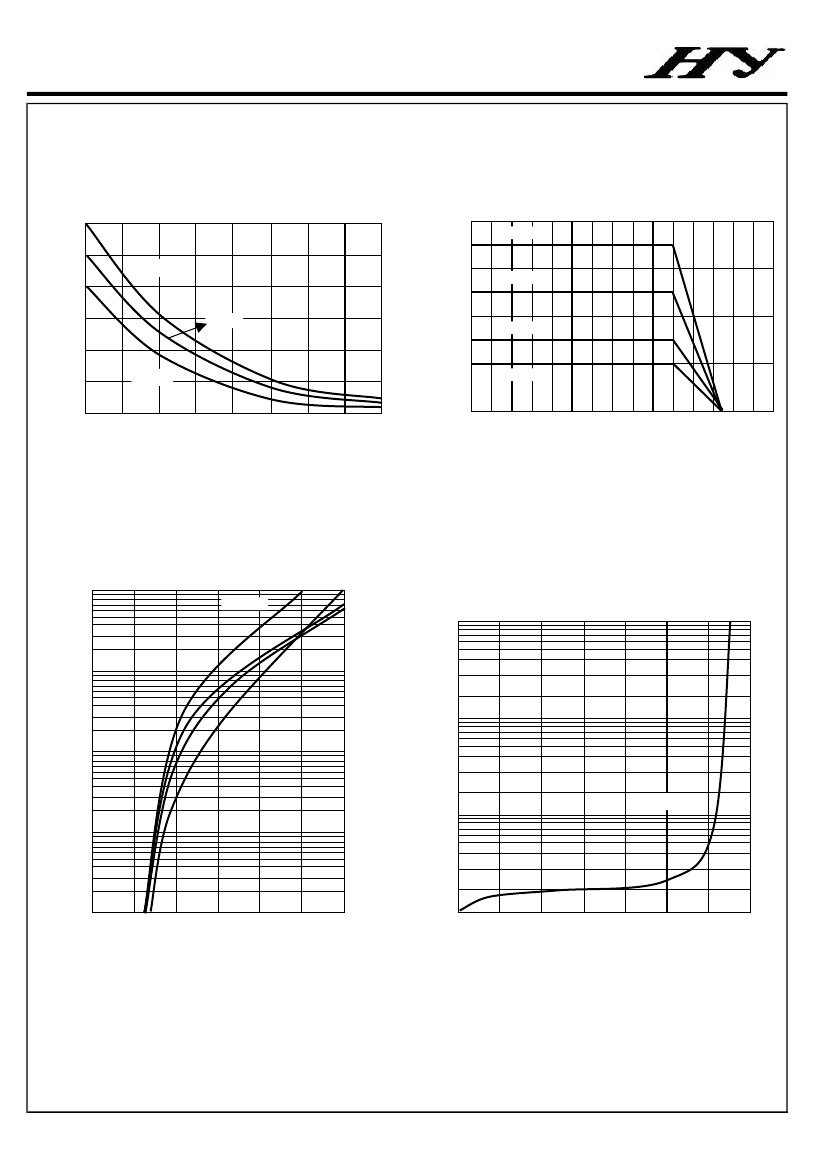

RATING AND CHARACTERISTIC CURVES
TBU10/15/25/35A SERIES
FIG. 1
–
MAXIMUM FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT
AMPERES
400
300
TBU25-35
FIG. 2
–
DERATING CURVE OUTPUT RECTIFIED CURRENT
AVERAGE FORWARD OUTPUT CURRENT
AMPERES
40
TBU35
30
240
TBU15
TBU25
20
TBU15
10
TBU10
TBU 10
0
50
100
150
1
10
NUMBER OF CYCLES AT 60Hz
100
TEMPERATURE (℃)
FIG.3– TYPICAL FORWARD CHARACTERISTICS
100
TBU 35
TBU 15
TBU 25
TBU 10
FIG.4
–
TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS FORWARD CURRENT
(AMPERES)
INSTANTANEOUS REVERSE CURRENT
MICROAMPERES
10
1.0
1.0
T
J
= 25
°C
0.1
0.1
0.01
0.4
0.6
0.8
1.0
1.2
1.4
`
1.6
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE
