ERF2B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ERF2B1

ERF2B1: DescriptionBridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size64KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

ERF2B1 Overview

Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4

ERF2B1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	O-XUPM-X4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	O-XUPM-X4
JESD-609 code	e0
Maximum non-repetitive peak forward current	250 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	4 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

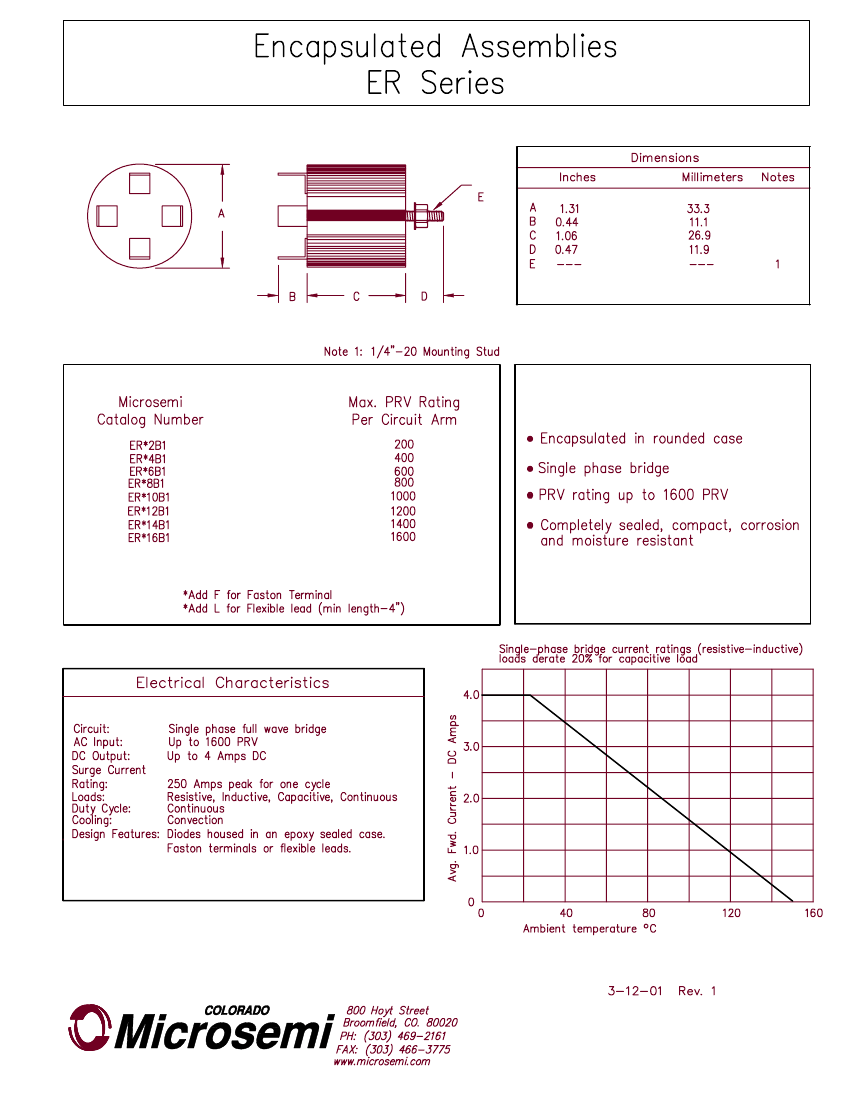

Preview

Download Datasheet

View All

ERF2B1 Related Products

	ERF2B1	ERF10B1	ERF14B1	ERF16B1	ERF6B1	ERL10B1	ERL16B1	ERL8B1
Description	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4	Bridge Rectifier Diode, 1 Phase, 4A, Silicon, PLASTIC PACKAGE-4
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi	Microsemi
package instruction	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4	O-XUPM-X4
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A	250 A	250 A	250 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum output current	4 A	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
JESD-609 code	e0	e0	-	e0	e0	-	e0	e0
Terminal surface	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD
