REVISION AK
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
REPRESENTS CRITICAL DIMENSION.
2. SHEAR TAILS TO DIMENSION SHOWN.
3. DO NOT CHECK, FOR CUSTOMER REFERENCE ONLY.
4. MAX CUT FLASH: .010 [.25] AWAY FROM PCB.
5. DIMENSIONS TO BE SYMETRIC ABOUT CENTER LINE.
6. BURR ALLOWANCE: .003 [.08] MAX., AND .006 [.15] IF AWAY FROM THE PCB.
7. 7 POSITION PARTS AVAILABLE IN -TR ONLY.
8. MININUM CONTACT RETENTION: 7 OUNCES
C

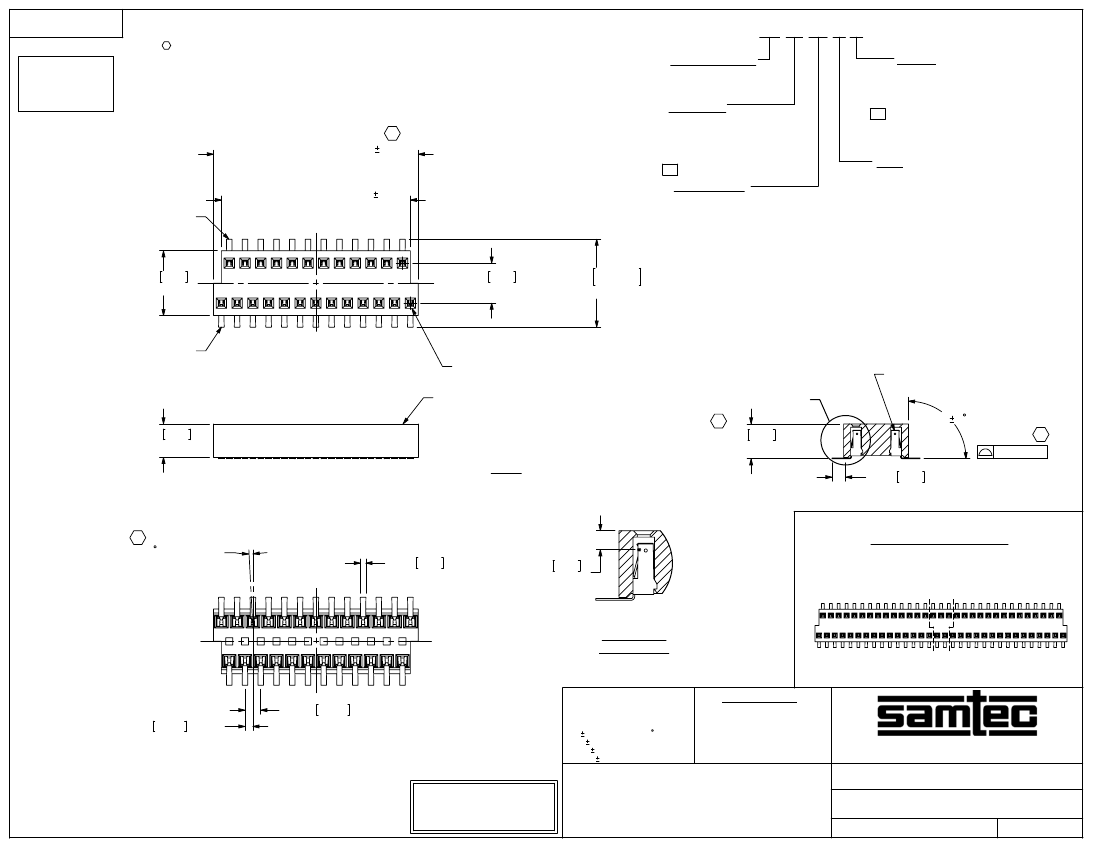

BKS-1XX-01-XX-V-X
No OF POSITIONS
-07 THRU -69
*SEE NOTE 7
BODY SPEC
-01: .087 OVERALL HEIGHT
[2.21]
OPTION
-A: ALIGNMENT PIN, USE SM-A5
(SEE FIG 2, SHEET 2)
(MINIMUM 11 POSITIONS)
-TR: TAPE & REEL PACKAGING
-P: PICK & PLACE PAD, USE LMP-03
(SEE FIG 3, SHEET 2)
(AVAILABLE ON POSITIONS
-13 THRU -69 ONLY)
AK
C4
((No OF POS x .0197) +.032) .005
[.50] [.81] [.13]
((No OF POS x .0197) -.010) .005
[.50] [.25] [.13]
POSITION #2
.162 4.11
REF
C
L
.100 2.54
REF
.220
- .010
5.59
- 0.25
(SEE NOTE 2)
+.005
+0.13
STYLE
AK
-V: VERTICAL
PLATING SPEC
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL.
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL.
-FM: 3µ" FLASH SELECTIVE GOLD IN CONTACT AREA
MATTE TIN ON TAIL
POSITION #1
C
L
.026 [.66] SQ REF (TYP)
BKS-XXX
C2
C-72-01-X
'A'
90° 3
C3
.0835 2.12
REF
.087 2.21
(MEASURE AT BEND)
FIG 1
.004 [.10]
.034 0.86 REF
C5
2 MAX SWAY
(ANY DIRECTION)
C
L
.014 0.36 REF
(FIVE POSITIONS WILL BE LOST FOR EVERY CUT MADE)
.024 0.60
REF
CUT IN-PROCESS VIEW
CUT
C
L
DETAIL 'A'
SCALE 8 : 1
.0394 1.000 (TYP)
.0197 0.500 (TYP)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.X: .1[2.54]
2
.XX: .01 [.25]
.XXX: .005 [1.27]
.XXXX: .0020 [.051]
MATERIAL:
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
PATENT NUMBERS
5713755
5961339
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
TERMINAL: PHOS BRONZE
STAGGERED 1MM C.L. SURFACE MOUNT SOCKET
BKS-1XX-01-XX-V-X
SHEET
1
OF
2
F:\DWG\MISC\MKTG\BKS-1XX-01-XX-V-X-MKT.SLDDRW
BY:
BRATCHER 03/27/1995
REVISION AK

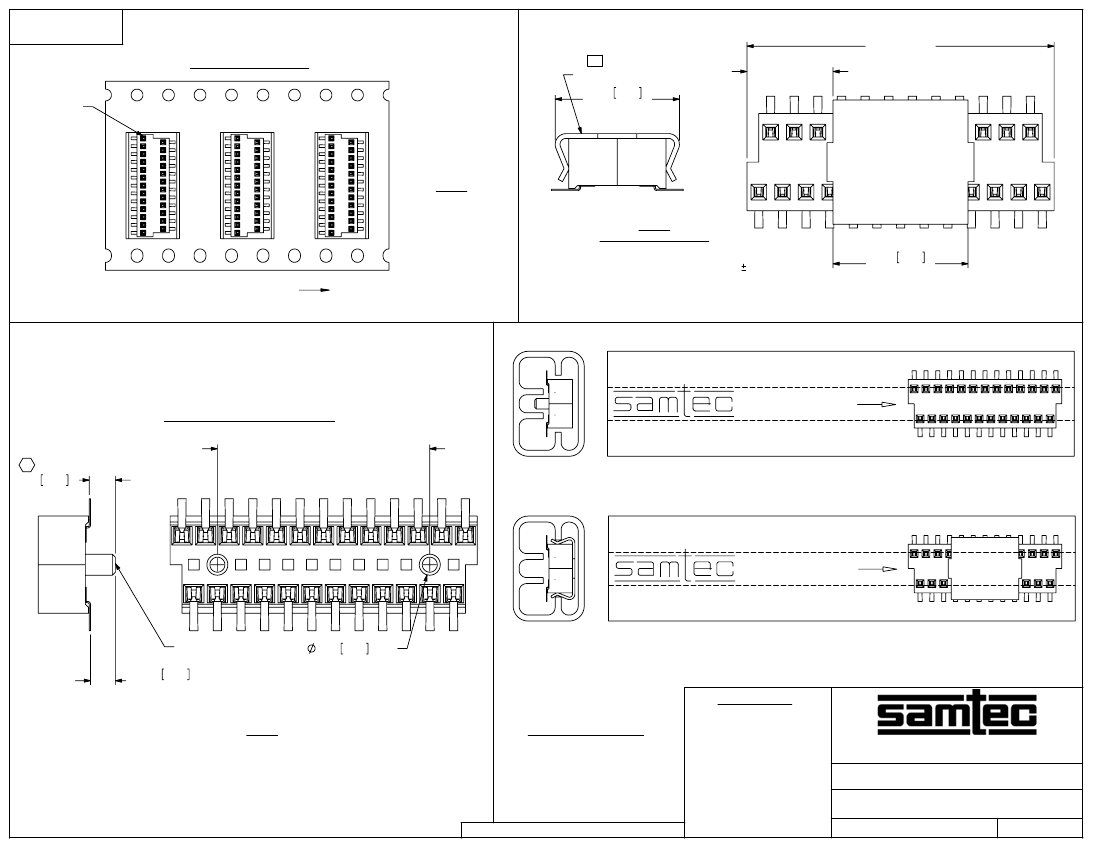

-TR: TAPE AND REEL
POSITION 1
AK
LMP-03
.207 5.26
REF
"P"
(SEE NOTE)
"M"
(SEE NOTE)
(SCALE: 2:1)
-P: PICK & PLACE PAD
FIG 4
FIG 3
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .2386 [6.060]) / 2} .020 [.51]
USER FEED DIRECTION
.225 5.72
REF
-A: ALIGNMENT PIN OPTION
((No OF POS -1)/2 X .03937) -.11811
[1.000] [3.000]
ANTI-STATIC
C1
.044 1.11
NOTE: PARTS ARE TO BE PACKAGED IN A PT-1-24-03-65
TUBE WITH TWO TP-12 PLUGS PER TUBE AND POS. 1 WITH ARROW.
ANTI-STATIC
SM-A5
.042 1.05
(SEE NOTE 3)
.035 0.89 REF
NOTE: PARTS WITH PAD ARE TO BE PACKAGED
IN A PT-1-24-03-65 TUBE WITH TWO TP-12 PLUGS
PER TUBE AND POS. 1 WITH ARROW.
PROPRIETARY NOTE
FIG 2
PACKAGING VIEW
(SCALE: 3:1)
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 8:1
STAGGERED 1MM C.L. SURFACE MOUNT SOCKET
DWG. NO.
DESCRIPTION:
BKS-1XX-01-XX-V-X
SHEET
2
OF
2
F:\DWG\MISC\MKTG\BKS-1XX-01-XX-V-X-MKT.SLDDRW
BY:
BRATCHER 03/27/1995
