51402R: DescriptionTelecom Transformer; CategoryPower management transformer; File Size176KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric Compare View All

51402R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51402R	-	-	View	Buy Now

51402R Overview

Telecom Transformer

51402R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Wurth Elektronik
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS COPPER WING CHIP SET
Certification	UL
high	9.78 mm
length	9.78 mm
Manufacturer's serial number	51402R
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L9.78XB8.89XH9.78 (mm)
main impedance	100 OHMS
secondary impedance	400 OHMS
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	8.89 mm

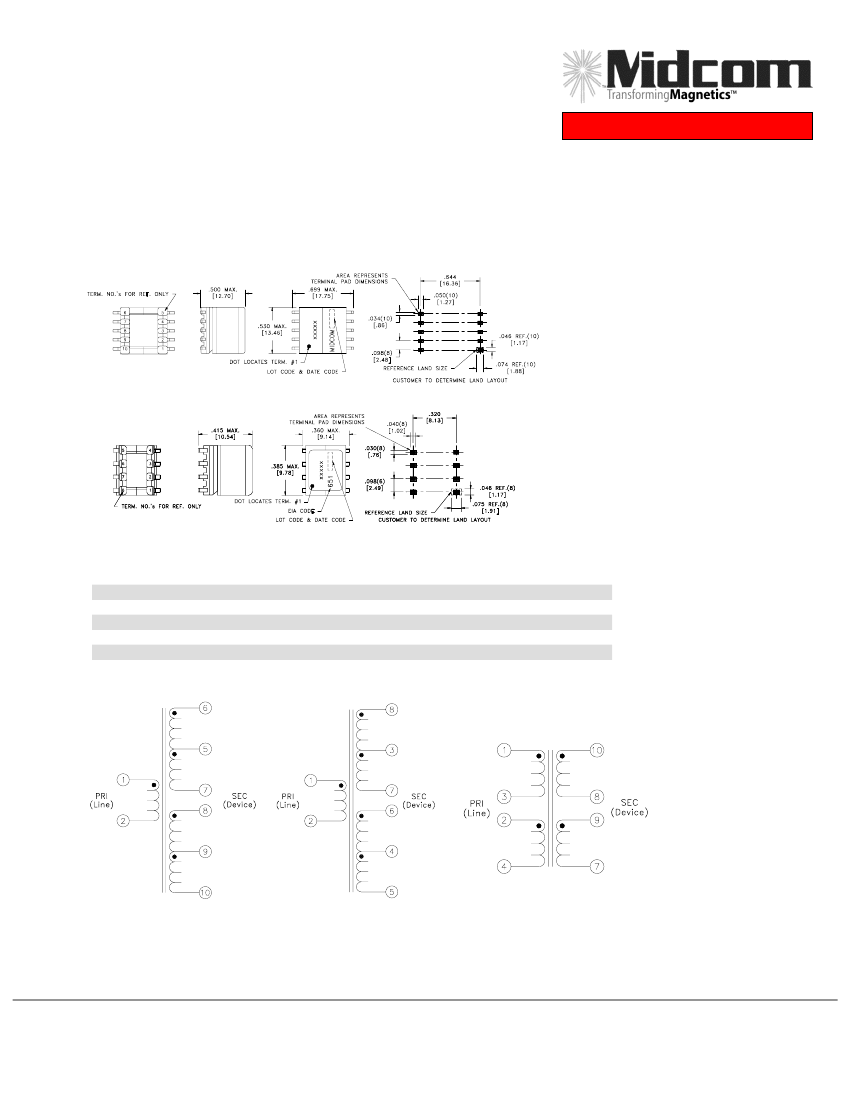

Preview

Download Datasheet

View All

Digital

Telecom

ST Microelectronics ADSL

recommendations

EP13-SMD

Features

•

RoHS compatible versions available

•

Designed for ST Microelectronics

chipsets

•

Good total harmonic distortion

characteristics

•

Optimized for size and performance

•

Customization available

•

100 ohm line impedance

•

For IC approval status, contact

Midcom

EP7-SMD

Part Number

51272R

51402R

51349R

51339R

51340R

Copper Wing

IL3 POTS

Application

CPE

IEC950

Supplementary

Functional

Supplementary

Mechanical

EP13 SMD

EP7 SMD

EP13 SMD

Schematic

Schematic 1

Schematic 2

Schematic 3

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are

±.010/0,25

and electrical specifications are @25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive – PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

email: asiasales@midcom-inc.com

10/19/2006

1/1

51402R Related Products

	51402R	51339R	51340R	51349R	51272R
Description	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS COPPER WING CHIP SET	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS IL3 POTS CHIP SETS	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS IL3 POTS CHIP SETS	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS COPPER WING CHIP SET	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH ST MICROELECTRONICS COPPER WING CHIP SET
Certification	UL	IEC	IEC	UL	IEC
high	9.78 mm	12.7 mm	12.7 mm	9.78 mm	12.7 mm
length	9.78 mm	13.46 mm	13.46 mm	9.78 mm	13.46 mm
Manufacturer's serial number	51402R	51339R	51340R	51349R	51272R
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
physical size	L9.78XB8.89XH9.78 (mm)	L13.46XB17.75XH12.7 (mm)	L13.46XB17.75XH12.7 (mm)	L9.78XB8.89XH9.78 (mm)	L13.46XB17.75XH12.7 (mm)
surface mount	YES	YES	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	8.89 mm	17.75 mm	17.75 mm	8.89 mm	17.75 mm
main impedance	100 OHMS	100 OHMS	-	-	100 OHMS
secondary impedance	400 OHMS	100 OHMS	-	-	196 OHMS
Base Number Matches	-	1	1	1	-
