84512-001 datasheet, PDF - EEWORLD Datasheet

84512-001: DescriptionBoard Connector, 100 Contact(s), 10 Row(s), Male, Straight, Solder Terminal, Plug; CategoryThe connector The connector; File Size174KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

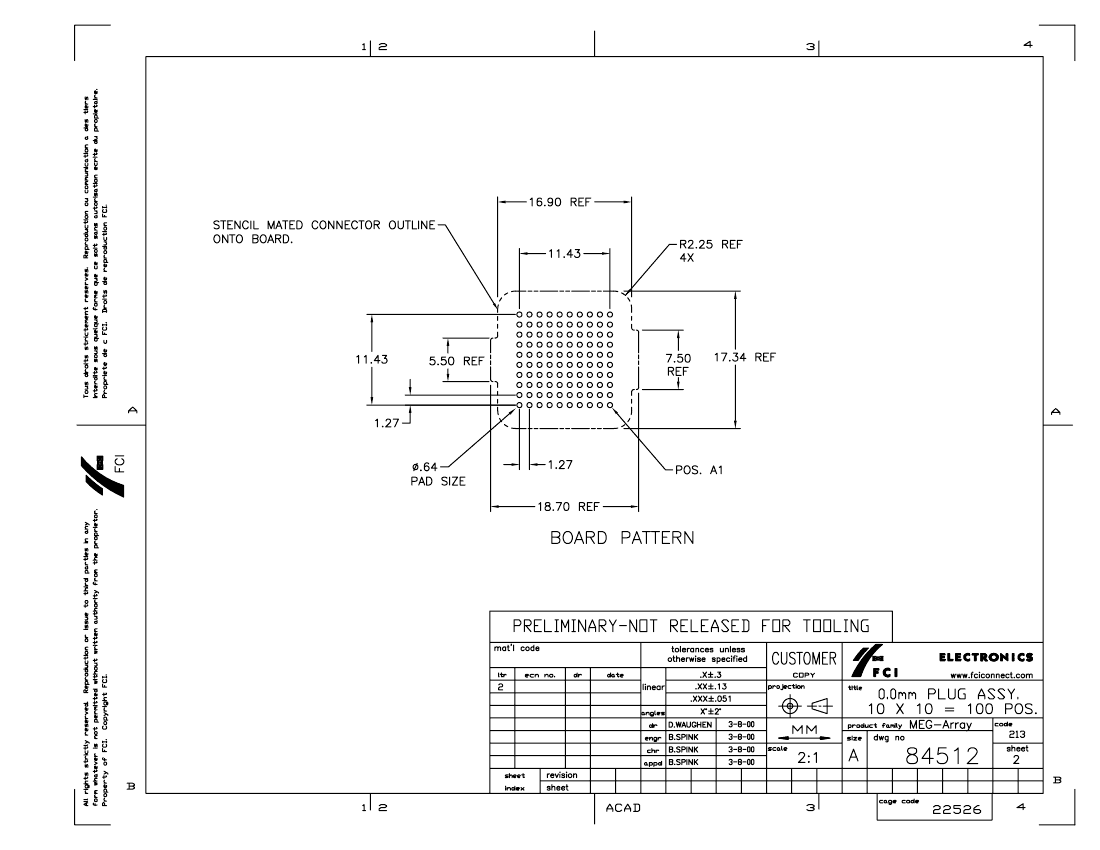

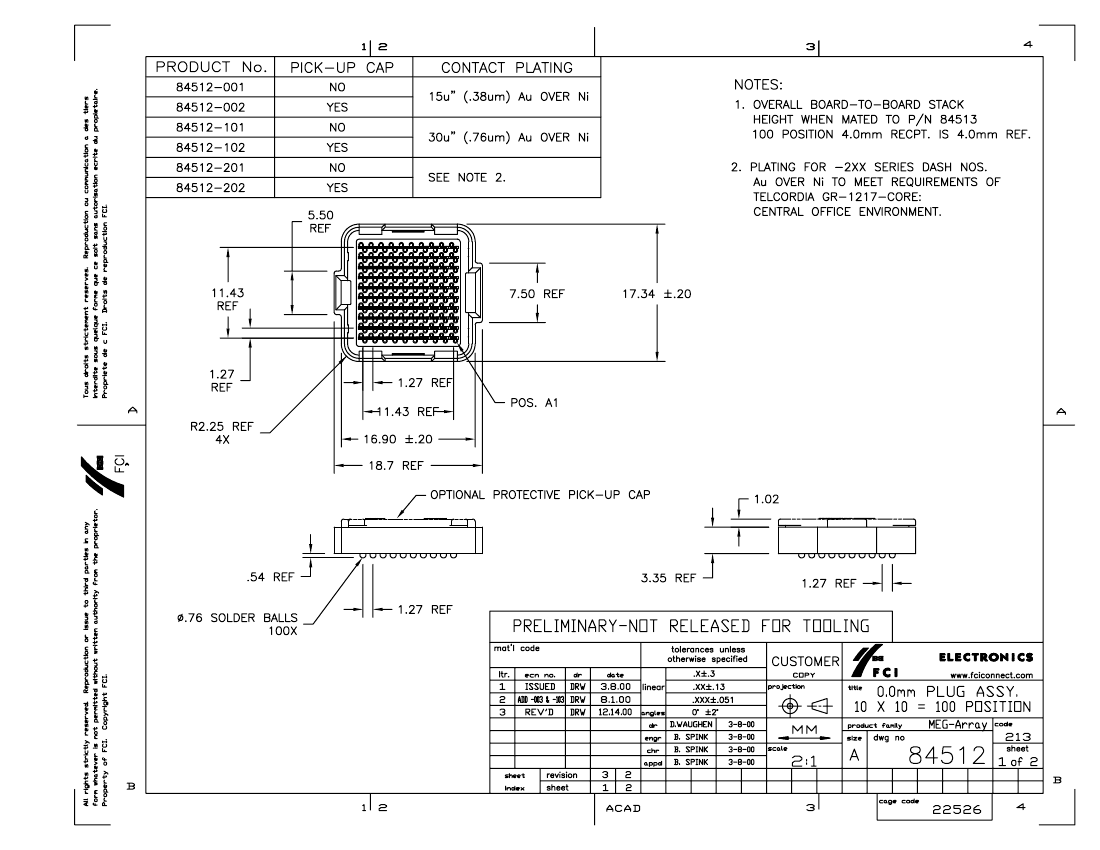

84512-001 Overview

Board Connector, 100 Contact(s), 10 Row(s), Male, Straight, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (15) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	84512
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	10
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100

	84512-001	84512-101	84512-201
Description	Board Connector, 100 Contact(s), 10 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 100 Contact(s), 10 Row(s), Male, Straight, Solder Terminal, Plug	Board Connector, 100 Contact(s), 10 Row(s), Male, Straight, Solder Terminal, Plug
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	84512	84512	84512
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	10	10	10
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	100	100	100
Contact completed and terminated	GOLD (15) OVER NICKEL	GOLD (30) OVER NICKEL	-
JESD-609 code	e4	e4	-
