BAW56T
BAV70T
BAV99T
Technical Data
Data Sheet N1727, Rev. A
BAW56T/BAV70T/BAV99T SWITCHING DIODE
Features
Low Forward Voltage Drop
Fast Switching
PN Junction Guard Ring for Transient and
ESD Protection
This is a Pb − Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request

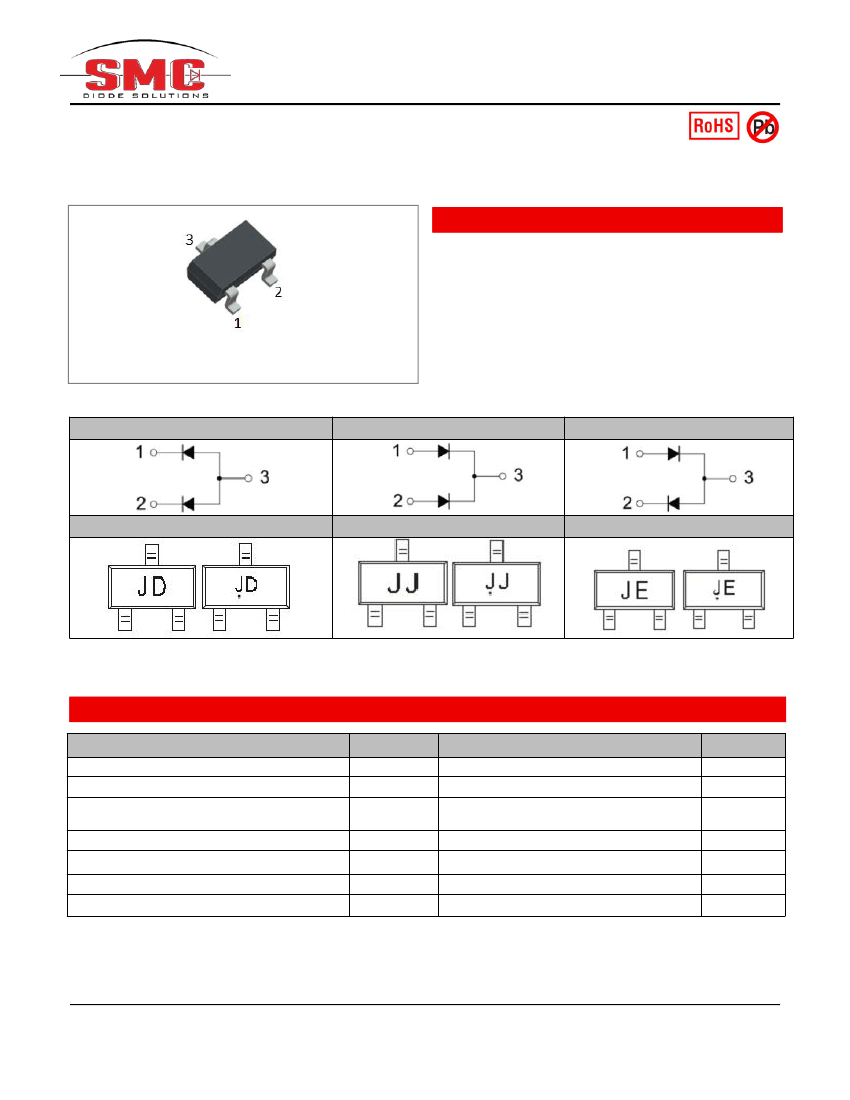

SOT-523
BAW56T
BAV70T
BAV99T
MARKING:JD
MARKING:JJ
MARKING:JE
Solid dot = Green molding compound device, if none, the normal device.
Maximum Ratings
@T
A
=25°C unless otherwise specified
Parameter
Reverse Voltage
Forward Current
Non-repetitive Peak Forward
Surge Current @t=8.3ms
Power Dissipation
Thermal Resistance from Junction to Ambient
Junction Temperature
Storage Temperature
Symbol
V
R
I
F
I
FSM
P
D
R
ΘJA
T
j
T
stg
Limit
85
75
2.0
150
833
150
-55~+150
Units
V
mA
A
mW
°C/W
°C
°C
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAW56T
BAV70T
BAV99T
Technical Data
Data Sheet N1727, Rev. A
Electrical Characteristic
s @T
A
=25°C unless otherwise specified
Parameter
Reverse breakdown voltage
*
Reverse voltage leakage current
*
Forward voltage
*
Symbol
V
(BR)
I
R1
I
R2
V
F
Test conditions
I
R
=1μA
V
R
=75V
V
R
=25V
I
F
=1mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=0V,f=1MHz
I
F
= I
R
=10mA, Irr=0.1×I
R
, R
L
=100Ω
Min
85
-
-
-
-
-
-
-
-
Max
-
2
0.03
715
855
1000
1250
1.5
4
Units
V
μA
μA
mV
Diode capacitance
Reverse recovery time
* Pulse width < 300 µs, duty cycle < 2%
C
D
T
rr
pF
ns

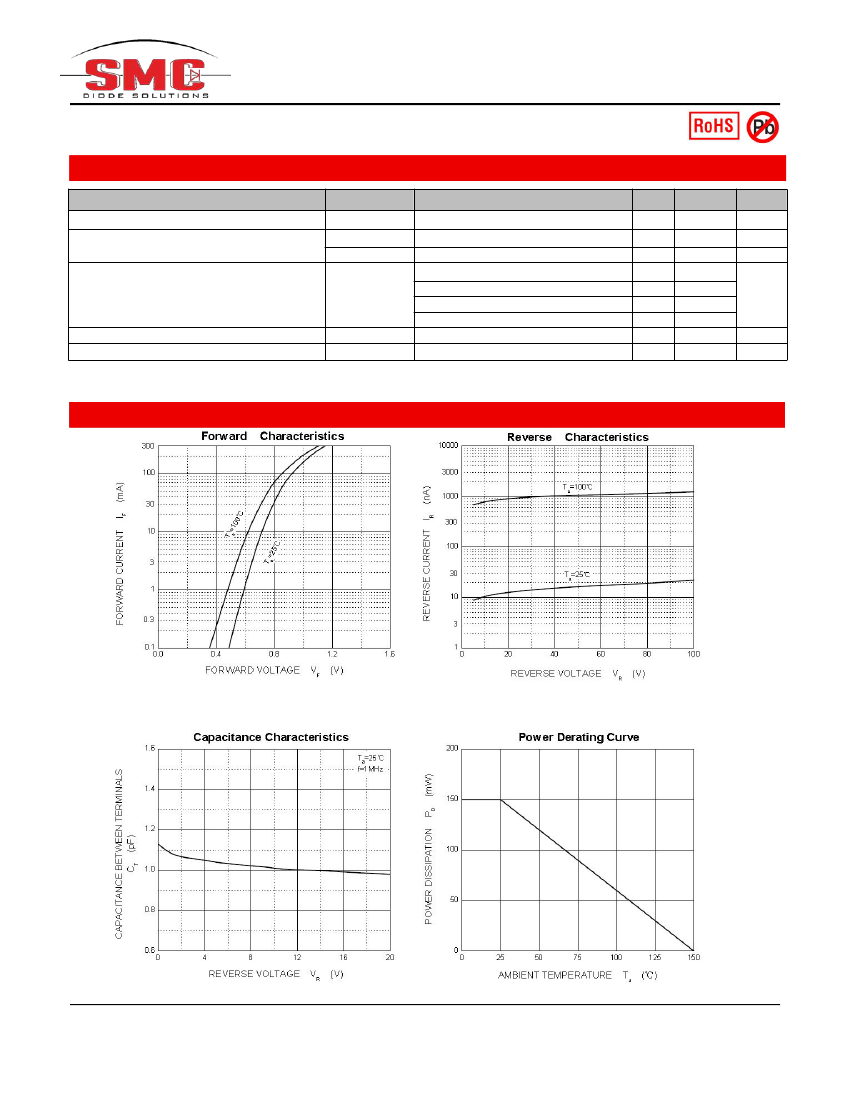

Ratings and Characteristics Curves
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAW56T
BAV70T
BAV99T
Technical Data
Data Sheet N1727, Rev. A
Ordering Information
Device
BAW56T/BAV70T/BAV99T
Package
SOT-523(Pb-Free)
Shipping
3000pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our tape and reel
packaging specification.

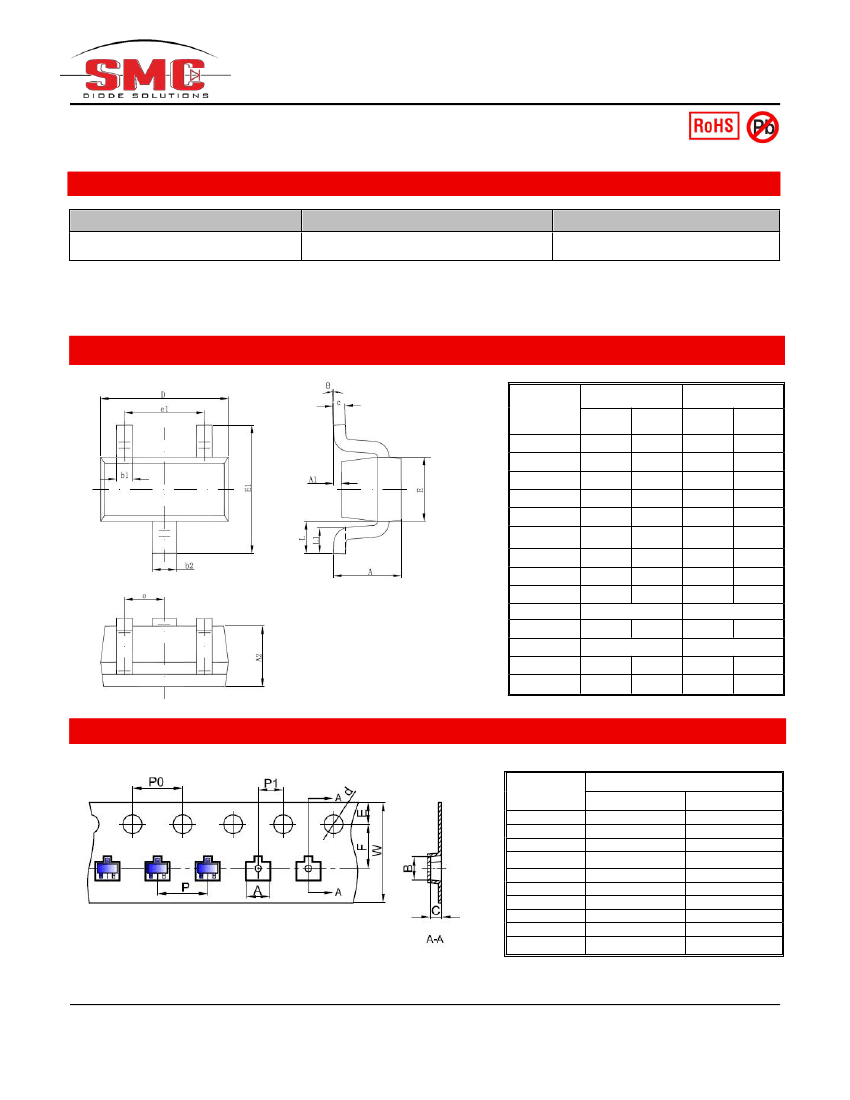

Mechanical Dimensions SOT-523
SYMBOL
A
A1
A2
b1
b2
c
D
E
E1
e
e1
L
L1
θ
Millimeters
MIN.
0.700
0.000
0.700
0.150
0.250
0.100
MAX.
0.900
0.100
0.800
0.250
0.350
0.200
Inches
MIN.
0.028
0.000
0.028
0.006
0.010
0.004
MAX.
0.035
0.004
0.031
0.010
0.014
0.008
1.500
1.700
0.700
0.900
1.450
1.750
0.500 TYP.
0.900
1.100
0.400 REF.
0.260
0.460
0°
8°
0.059
0.067
0.028
0.035
0.057
0.069
0.020 TYP.
0.035
0.043
0.016 REF.
0.010
0.018
0°
8°
Carrier Tape Specification SOT-523
SYMBOL
A
B
C
d
E
F
P
P0
P1
W
1.80
1.80
0.825
1.40
1.65
3.40
3.90
3.90
1.90
7.90
Millimeters
Min.
Max.
1.90
1.90
0.925
1.60
1.85
3.60
4.10
4.10
2.10
8.30
China - Germany - Korea - Singapore - United States
http://www.smc-diodes.com - sales@ smc-diodes.com
BAW56T
BAV70T
BAV99T
Technical Data
Data Sheet N1727, Rev. A
