0805USBF-421MRD datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> 0805USBF-421MRD

0805USBF-421MRD: DescriptionData Line Filter, 2 Function(s), EIA STD PACKAGE SIZE 0805, SMD, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size185KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

0805USBF-421MRD Overview

Data Line Filter, 2 Function(s), EIA STD PACKAGE SIZE 0805, SMD, 4 PIN

0805USBF-421MRD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	AEC-Q200
Maximum DC resistance	0.11 Ω
filter type	DATA LINE FILTER
high	1.4 mm
inductance	0.028 µH
JESD-609 code	e3
length	2.03 mm
Installation type	SURFACE MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
method of packing	TR, PLASTIC
Filter level	AEC-Q200
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
width	1.27 mm
Base Number Matches	1

Preview

Download Datasheet

View All

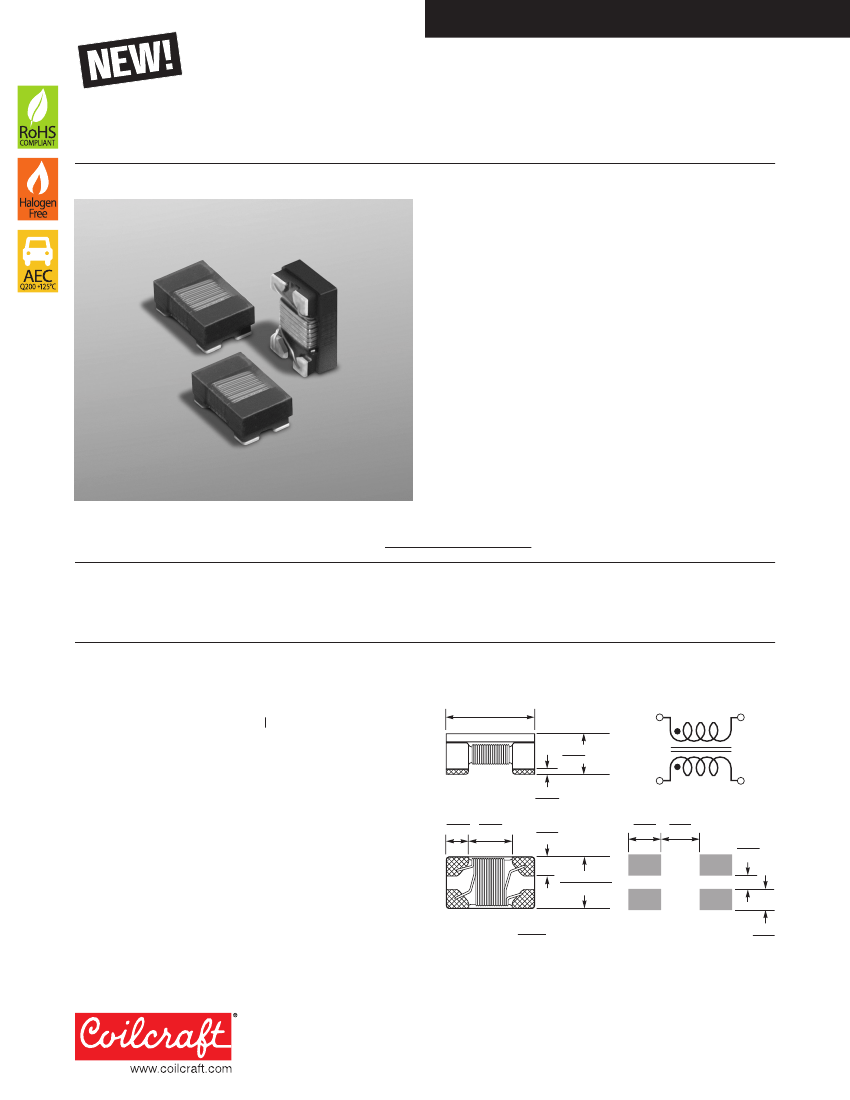

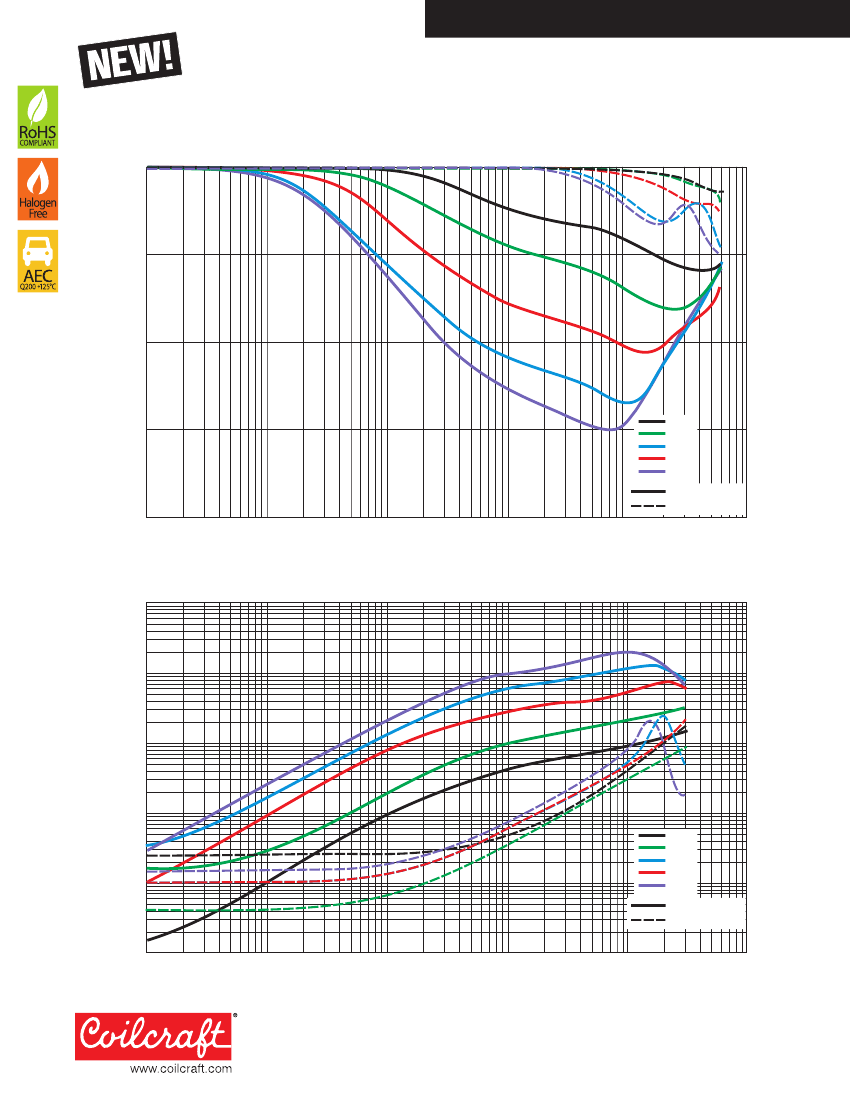

Document 1270-1

Low Profile USB Common Mode Choke

0805

• For noise suppression in super high speed signal lines: USB

3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.; and in high

speed differential signal lines: USB 2.0, IEEE1394, LVDS, etc.

• Suitable for USB-type C specification 1.0

• Up to 6 GHz differential mode 3 dB cutoff frequency; up to

30 dB common mode noise attenuation in GHz range

Core material

Ferrite

Environmental

RoHS compliant

Terminations

Matte tin over nickel over silver-platinum-glass frit.

Weight

14.7 – 15.5 mg

Ambient temperature

–40°C to +125°C with

Irms

current.

Maximum part temperature

140°C

Storage temperature

Component: –40°C to +140°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

2000/7″ reel; 7500/13″ reel; Plastic tape: 8 mm wide,

0.23 mm thick, 4 mm pocket spacing, 1.295 mm pocket depth

PCB washing

Tested to MIL-STD-202 Method 215 plus an additional

aqueous wash. See

Doc787_PCB_Washing.pdf.

Part

number

Common mode

peak impedance

(kOhms)

Common mode

Cutoff

attenuation typ (dB)

frequency

(GHz)

10 MHz 100 MHz 500 MHz

DCR

Inductance

max

min (nH)

(Ohms)

Isolation

Irms

(Vrms) (mA)

0805USBF-421MR_

0805USBF-901MR_

0805USBF-172MR_

0805USBF-262MR_

0805USBF-372MR_

0805USBF-502MR_

0805USBF-672MR_

0805USBF-902MR_

>0.14 @ >3.0 GHz

>0.30 @ >3.0 GHz

0.52 @ 2.5 GHz

0.69 @ 2.0 GHz

0.93 @ 1.8 GHz

1.22 @ 1.5 GHz

1.65 @ 1.2 GHz

1.91@ 1.0 GHz

6.6

5.8

3.3

2.4

1.4

0.93

0.69

0.73

0.5

2.1

4.0

5.7

5.8

11.2

11.3

12.6

4.6

9.1

12.8

15.4

18.1

21.6

23.3

25.4

6.9

11.8

15.7

18.5

22.3

25.2

27.7

30.0

101

165

241

315

434

560

0.11

0.14

0.22

0.235

0.27

0.32

0.37

0.63

250

500

450

350

1. When ordering, please specify

packaging

code:

0805USBF-902MRC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape (2000 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plas-

tic tape (7500 parts per full reel).

2 Frequency at which the differential mode attenuation equals −3 dB

3. Inductance measured at 100 MHz using an Agilent/HP 4286A

impedance analyzer and a Coilcraft SMD-A fixture.

4. DCR is specified per winding.

5. Winding to winding isolation (hipot) tested for one minute.

6. Current per winding that causes a 15°C rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

0.080 ±0.004

2,03 ±0,10

0.055

max

1,40

0.004

0,10

0.020 0.040

0,51 1,02

0.018

0,46

0.036

0,91

0.030

0,76

0.014

0,36

0.050 ±0.004

1,27 ±0,10

inches

Dimensions are in

Recommended

Land Pattern

0.020

0,51

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 1270-1

Revised 06/07/16

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

0805USBF-421MRD Related Products

	0805USBF-421MRD	0805USBF-421MRB	0805USBF-672MRD
Description	Data Line Filter, 2 Function(s), EIA STD PACKAGE SIZE 0805, SMD, 4 PIN	Data Line Filter, 2 Function(s), EIA STD PACKAGE SIZE 0805, SMD, 4 PIN	Data Line Filter, 2 Function(s), EIA STD PACKAGE SIZE 0805, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compli
Other features	AEC-Q200	AEC-Q200	AEC-Q200
Maximum DC resistance	0.11 Ω	0.11 Ω	0.37 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	1.4 mm	1.4 mm	1.4 mm
inductance	0.028 µH	0.028 µH	0.434 µH
JESD-609 code	e3	e3	e3
length	2.03 mm	2.03 mm	2.03 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2
Number of terminals	4	4	4
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
method of packing	TR, PLASTIC	TR, PLASTIC, 13 INCH	TR, PLASTIC
Filter level	AEC-Q200	AEC-Q200	AEC-Q200
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie
width	1.27 mm	1.27 mm	1.27 mm
Base Number Matches	1	1	-
Maker	-	COILCRAFT	COILCRAFT
