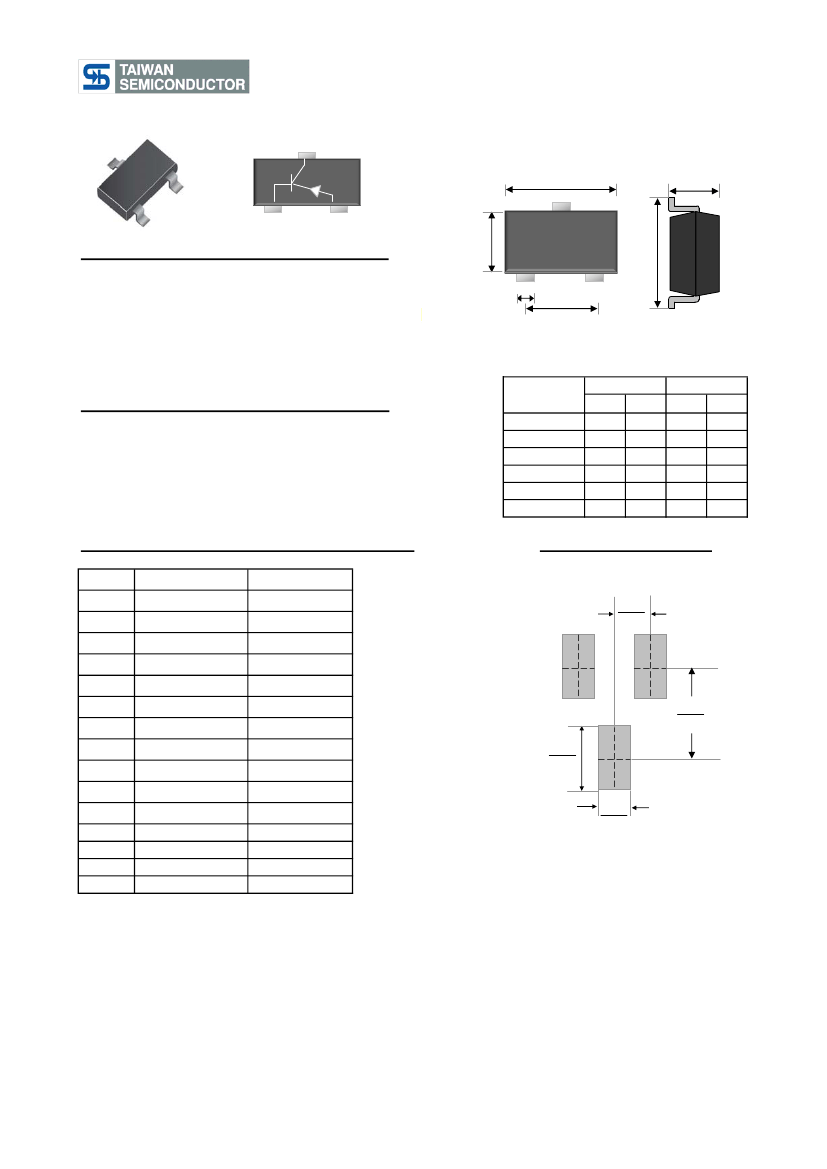

BC856AW/BW/CW-60AW/BW/CW.
PNP Transistor
Small Signal Diode
3 Collector
SOT-323
A
F
1 Base
2 Emitter
B
E
Features
Low
reverse current high reliability
Surface
device type mounting
Moisture
sensitivity level 1
Matte
Tin(Sn) lead finish with Nickel(Ni) underplate
Pb
free version and RoHS compliant
Green
compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
C
D
Mechanical Data
Case
: SOT-323 small outline plastic package
Terminal:
Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
High
temperature soldering guaranteed: 260°C/10s
Weight
: 0.005gram (approximately)
Dimensions
A
B
C
D
E
F
Unit (mm)
Min
1.90
1.15
0.25
1.20
2.00
0.80
Max
2.10
1.35
0.35
1.40
2.20
1.00
Unit (inch)
Min
0.075
0.045
0.010
0.047
0.079
0.031
Max
0.083
0.053
0.014
0.055
0.087
0.039
Ordering Information
Package
Part No.
Packing
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
Suggested PAD Layout
SOT-323 BC856AW RF/RFG
SOT-323 BC856BW RF/RFG
SOT-323 BC856CW RF/RFG
SOT-323 BC857AW RF/RFG
SOT-323 BC857BW RF/RFG
SOT-323 BC857CW RF/RFG
SOT-323 BC858AW RF/RFG
SOT-323 BC858BW RF/RFG
SOT-323 BC858CW RF/RFG
SOT-323 BC859AW RF/RFG
SOT-323 BC859BW RF/RFG
SOT-323 BC859CW RF/RFG
SOT-323 BC860AW RF/RFG
SOT-323 BC860BW RF/RFG
SOT-323 BC860CW RF/RFG
0.65
0.026
1.6
0.063
0.8
0.031
0.8
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
0.031
Version : A12
BC856AW/BW/CW-60AW/BW/CW.
PNP Transistor
Small Signal Diode
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Collector-Base Voltage
BC856AW/BW/CW
BC857AW/BW/CW
BC858AW/BW/CW
BC859AW/BW/CW
BC860AW/BW/CW
Collector-Emitter Voltage
BC856AW/BW/CW
BC857AW/BW/CW
BC858AW/BW/CW
BC859AW/BW/CW
BC860AW/BW/CW
Emitter-Base Voltage
Collector Current
Peak Collector Current
Junction and Storage Temperature Range
-V
CEO
65
45
30
30
45
5
0.1
0.2
-55 to + 150
V
-V
CBO
80
50
30
30
50
V
Symbol
P
D
Value
200
Units
mW
-V
EBO
-I
C
-I
CM
T
J
, T
STG
V
A
A
°C
Electrical Characteristics
Type Number
Collector-Base Breakdown Voltage
at -I
C
= 10 uA
BC856AW/BW/CW
BC857AW/BW/CW
BC858AW/BW/CW
BC859AW/BW/CW
BC860AW/BW/CW
BC856AW/BW/CW
BC857AW/BW/CW
BC858AW/BW/CW
BC859AW/BW/CW
BC860AW/BW/CW
Symbol
Min
80
50
30
30
50
65
45
30
30
45
5
Max
-
-
-
-
-
-
-
-
-
-
-
Units
-V
CBO
V
Collector-Emitter Breakdown
Voltage
at -I
C
= 10 mA
-V
CEO
V
Emitter-Base Breakdown Voltage
at -I
E
= 1 uA
Collector Cut-off Current
at -V
CB
= 30 V
Emitter Cut-off Current
at -V
EB
= 5 V
DC Current Gain
at -V
CE
= 5 V,-I
C
= 2 mA
Collector-Emitter saturation voltage
at -I
C
= 10 mA,-I
B
= 0.5 mA
- I
C
= 100 mA,-I
B
= 5 mA
Transition frequency
-V
CE
= 5V，-I
C
= 10 mA,f= 100 MHz
Base Emitter Voltage
at -V
CE
= 5V,-I
C
= 2 mA
-V
CE
= 5V,-I
C
= 10 mA
Collector Output Capacitance
at -V
CB
= 10 V,I
E
= 0， f= 1MHz
BC856AW~BC860AW
BC856BW~BC860BW
BC856CW~BC860CW
-V
EBO
V
-I
CBO
-I
EBO
-
-
125
220
420
-
-
15
100
250
475
800
0.3
0.65
nA
nA
-
-
-
h
FE
-V
CE(sat)
V
f
T
100
-
MHz
-V
BE
0.6
-
0.75
0.82
V
C
ob
-
4.5
pF
Version : A12
BC856AW/BW/CW-60AW/BW/CW.
PNP Transistor
Small Signal Diode

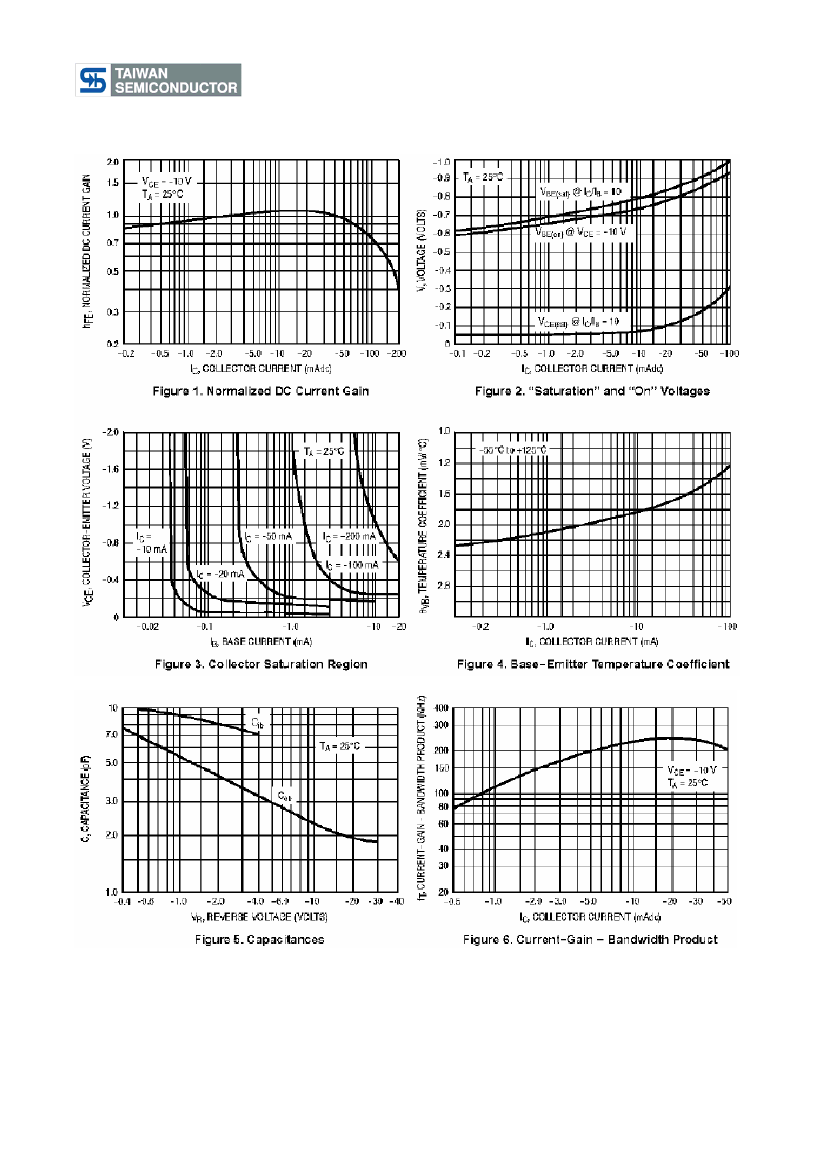

Rating and Characteristic Curves
Version : A12

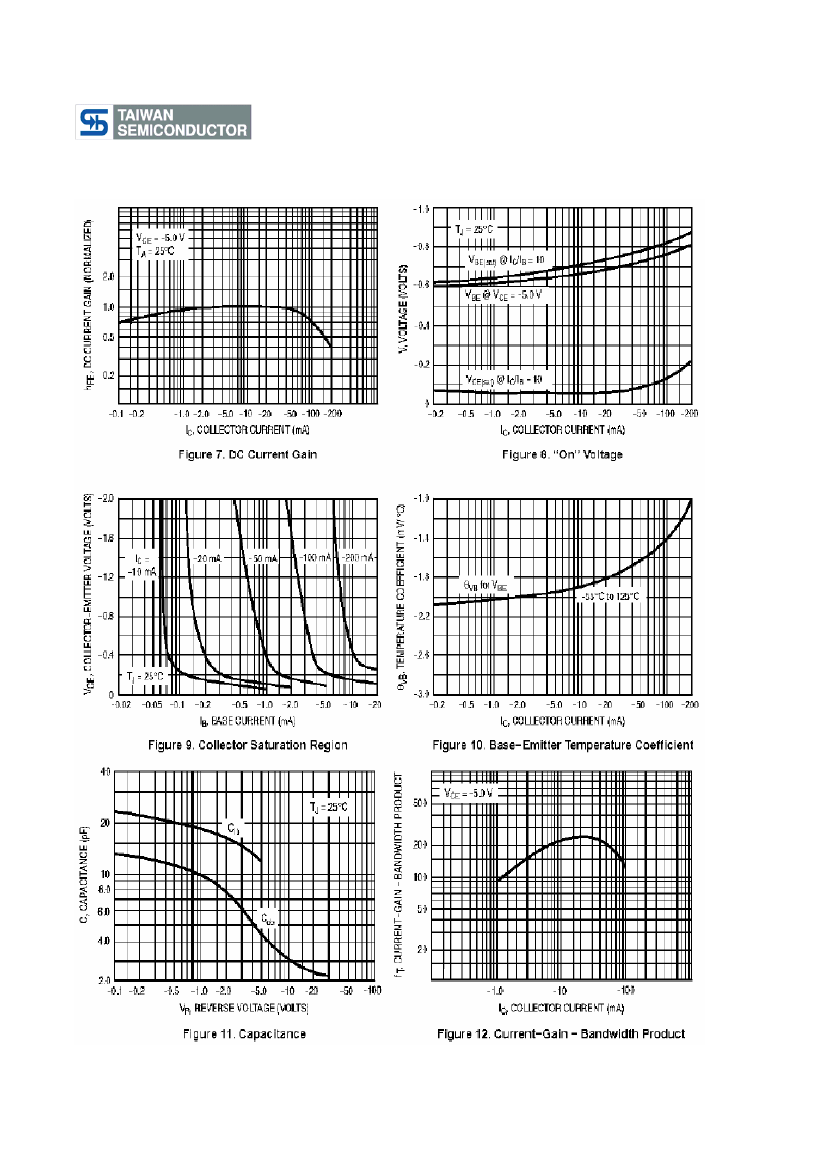

BC846AW/BW/CW-50AW/BW/CW
NPN Transistor
Small Signal Diode
Rating and Characteristic Curves
Version : A12
BC856AW/BW/CW-60AW/BW/CW.
PNP Transistor
Small Signal Diode

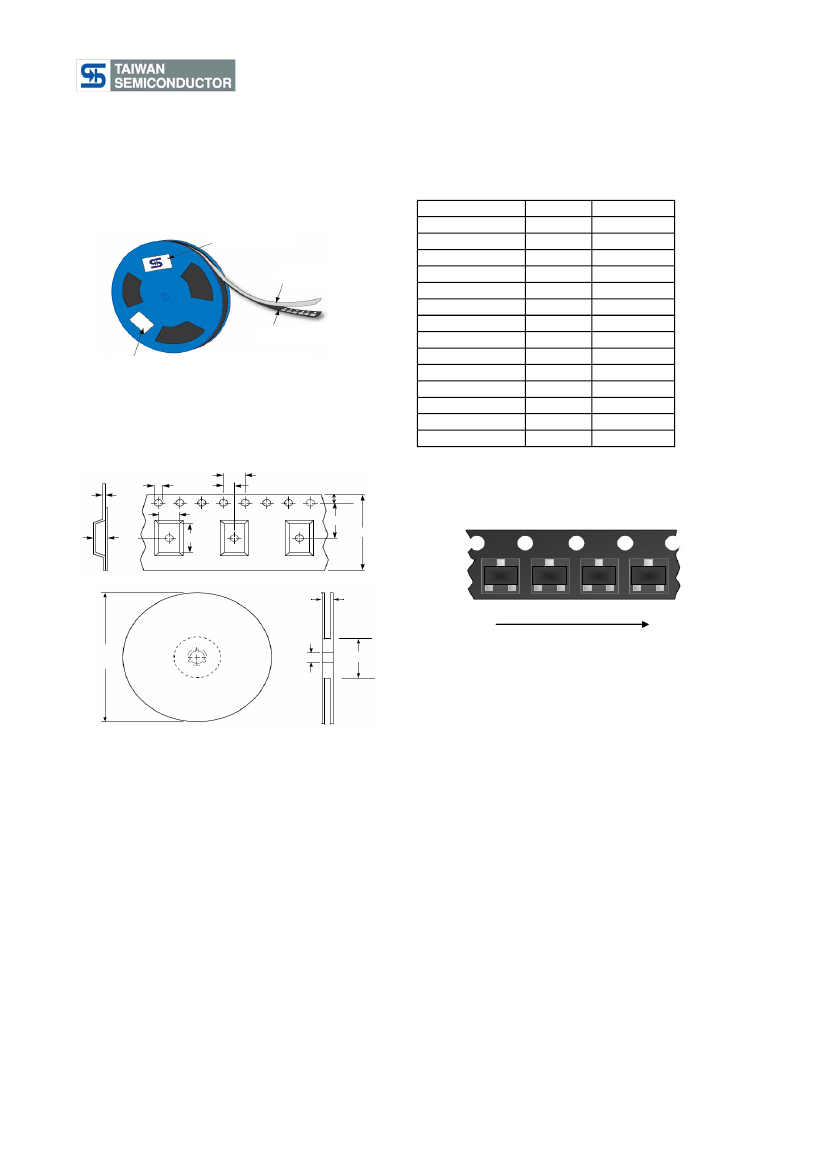

Tape & Reel specification
Item
Carrier width
TSC label
Symbol
A
B
C
d
D
D1
D2
E
F
P0
P1
T
W
W1
Dimension(mm)
3.15 ±0.10
2.77 ±0.10
1.22 ±0.10
1.50 ± 0.10
178 ± 1
55 Min
13.0 ± 0.20
1.75 ±0.10
3.50 ±0.05
4.00 ±0.10
2.00 ±0.05
0.229 ±0.013
8.10 ±0.20
12.30 ±0.20
Carrier length
Carrier depth
Top Cover Tape
Sprocket hole
Reel outside diameter
Reel inner diameter
Feed hole width
Carieer Tape
Sprocke hole position
Punch hole position
Sprocke hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
Any Additional Label (If Required)
P0
d
T
A
C
B
P1
E
F
W
W1
Direction of Feed
D
D2
D1
Version : A12
