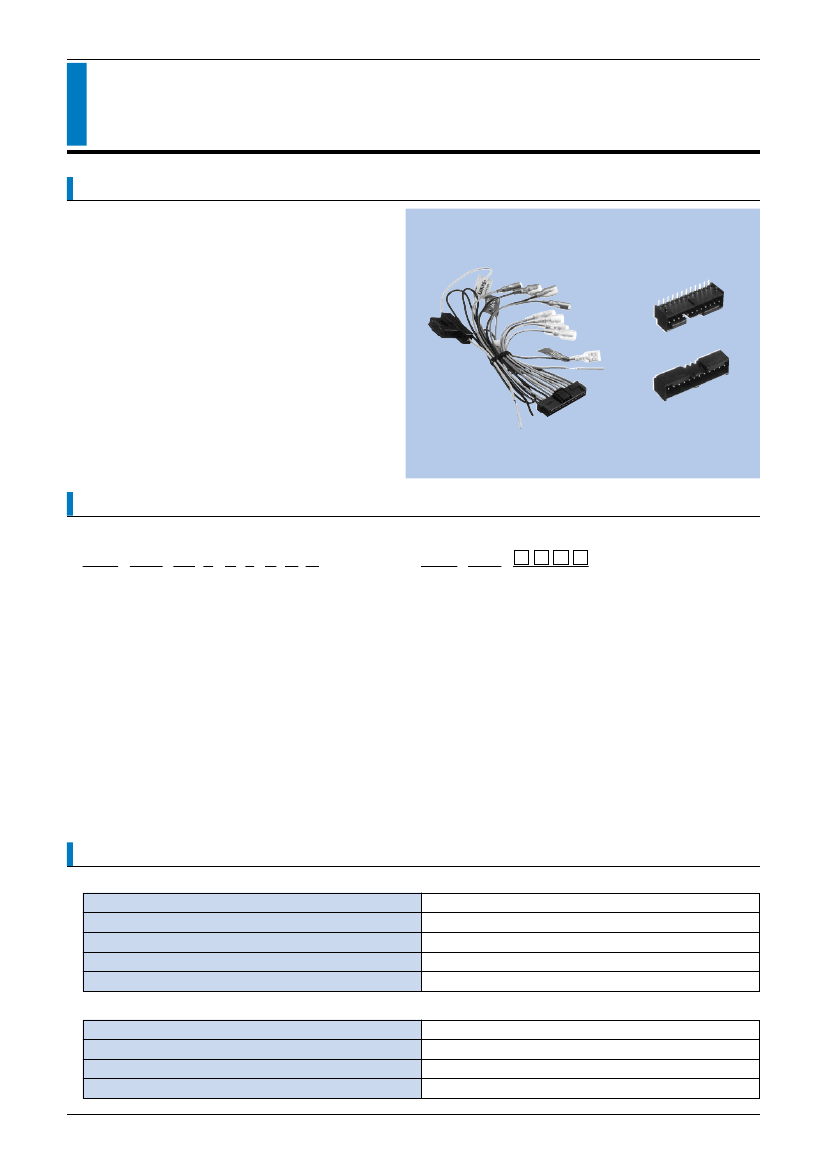

MITSUMI
Power Supply Voltage & Signal
CAM-B49, CCM-B50 Series
Connectors
FEATURES
1. 15 pin power connector of an angle type on
the plug side.
2. The lock device ensures secure fitting.
3. This type is common to both power and signal
contact pins.
CAM-B49(Plug)
CCM-B50(Socket)
HOW TO ORDER
1. CAM-B49 Series (Plug)
2. CCM-B50 Series (Socket)
B 4 9 - 015- 0 2 0 - I J B A A
1
1
2
3
4
5
6
7
8
9
2
3
4
5 6 7 8 9
Series No. (B49)
No. of contacts (015 : 15pins)
Housing material (02 : PBT resin)
Housing UL grade (0 : UL94V-0)
Contact plating (I : Tin reflow plating)
Contact plating thickness (J : 3.0µm)
Contact tail style (B : Angle)
Accessory for connector outside (A : None)
Accessory for connector inside (A : None)
B50-015-
1
2
3
1 Series No. (B50)
2 No. of contacts (015 : 15pins)
3 Running No. assigned by us
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Total Withdrawal Force
Using Temperature Range
30 times
117.6N (12kgf) max.
7.06N (0.72kgf) min.
-35~+85˚C
14V DC
10A
500V AC (rms) 1minute
100MΩ min. (at 500V DC)
70mΩ max.
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
MITSUMI
Power Supply Voltage & Signal
MATERIAL & FINISH
Component Parts
CAM-B49
Series (Plug)
CCM-B50
Series (Socket)
Housing
Contact
Shielded Case
Contact
Material
Glass filled PBT resin (Black)
Copper Alloy
46 Nylon
Copper Alloy
Finish
——
Tin reflow plating
——
Tin reflow plating
DIMENSIONS
CAM-B49
5.8
49
3.5
15- 1.8
2- 2.4
A
B
C
56
(53.8)
49
3.5
13
(7.1)
12-
1
Reference P.C.B hole size
(t=1.6)(Part loading surface)
13
10
7.5
1.5
3.5
±0.5
12-
L
49
±0.2
1
2
±0.1
5.7 5.8
2-C0.5
Boss pitch
9
Unit : mm
No. of Contacts
15
Part No.
B49-015-020-HJBAA
Dimensions
L
49
A
56
B
53.8
C
49
CCM-B50
B
55.1
A
(53.7)
11.4
7.4
10.3
9
1
1
8.2
(7)
3.5
L
(37)
49
13.2
0.3
1
5.7
Unit : mm
No. of Contacts
15
Part No.
B50-015-
L
49
1
Dimensions
A
53.7
B
55.1
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
