84XR500KLFTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 84XR500KLFTR

84XR500KLFTR: DescriptionRES,TAPPED,CERMET,500K OHMS,200WVDC,10% +/-TOL,-100,100PPM TC,2517 CASE; CategoryPassive components The resistor; File Size808KB，3 Pages; ManufacturerTT Electronics plc; Websitehttp://www.ttelectronics.com/; Environmental Compliance

Download Datasheet Parametric View All

84XR500KLFTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84XR500KLFTR	-	-	View	Buy Now

84XR500KLFTR Overview

RES,TAPPED,CERMET,500K OHMS,200WVDC,10% +/-TOL,-100,100PPM TC,2517 CASE

84XR500KLFTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TT Electronics plc
package instruction	SMT, 2517
Reach Compliance Code	compliant
Actuator direction	HORIZONTAL
Actuator type	SCREW
structure	Square
gang number	1
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	3
number of turns	12
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package height	7.49 mm
Package length	6.35 mm
Package form	SMT
Package width	4.32 mm
method of packing	TR, EMBOSSED, 13 INCH
Rated power dissipation(P)	0.25 W
Rated temperature	85 °C
resistance	500000 Ω
resistance law	LINEAR
Resistor type	TRIMMER
rotation angle	4320 deg
size code	2517
surface mount	YES
technology	CERMET
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

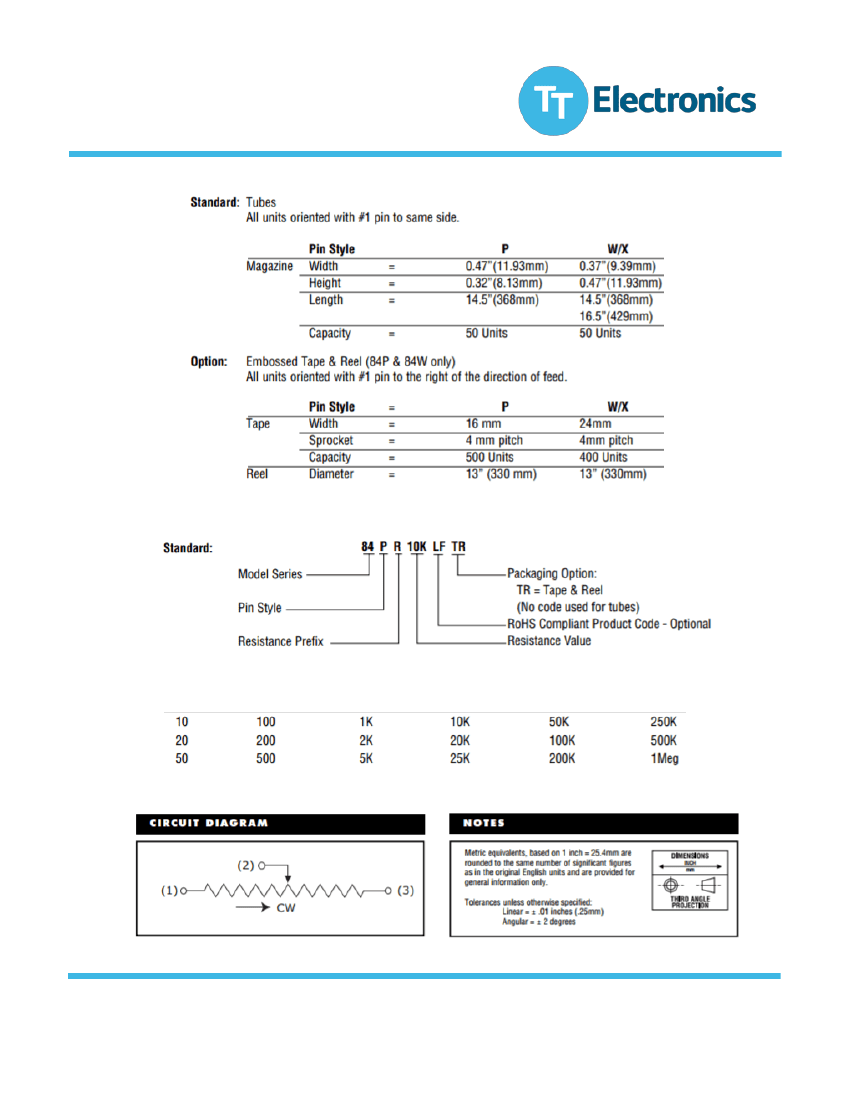

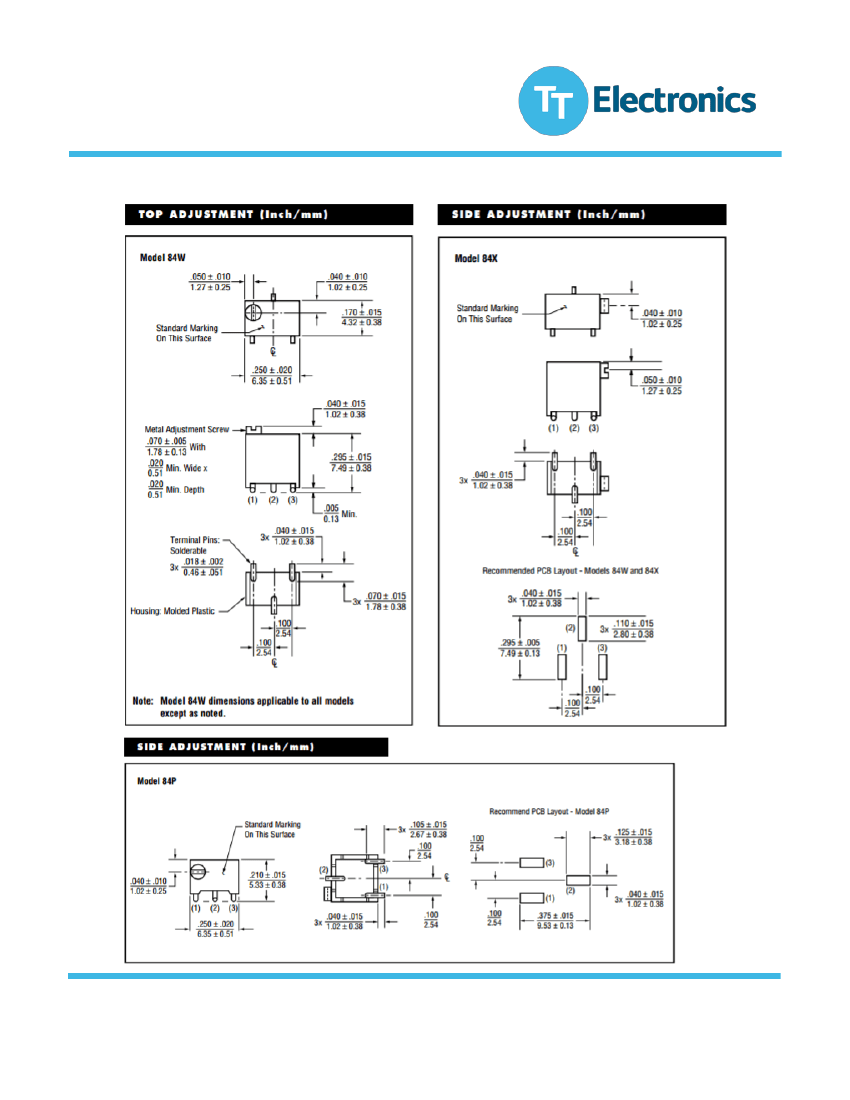

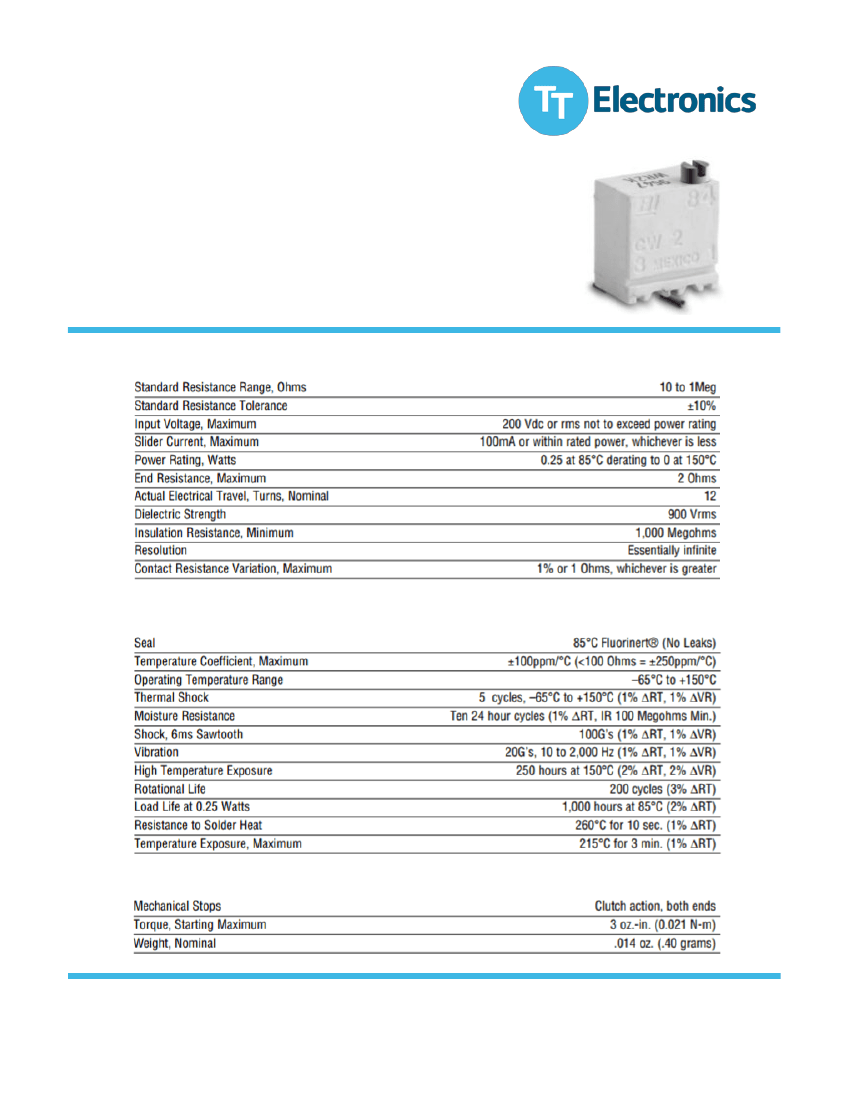

Multi-Turn Trimmer

Model 84

Features:



1/4” square



Surface mount



Cermet

Electrical

Environmental

Mechanical

General Note

TT Electronics reserves the right to make changes in product specification without

notice or liability. All information is subject to TT Electronics’ own data and is

considered accurate at time of going to print.

TT Electronics | BI Technologies

4200 Bonita Place, Fullerton, CA USA 92835-1053 |Ph: +1 714-447-2300

www.ttelectronics.com | sensors@ttelectronics.com

Issue A

11/2016

Page 1
