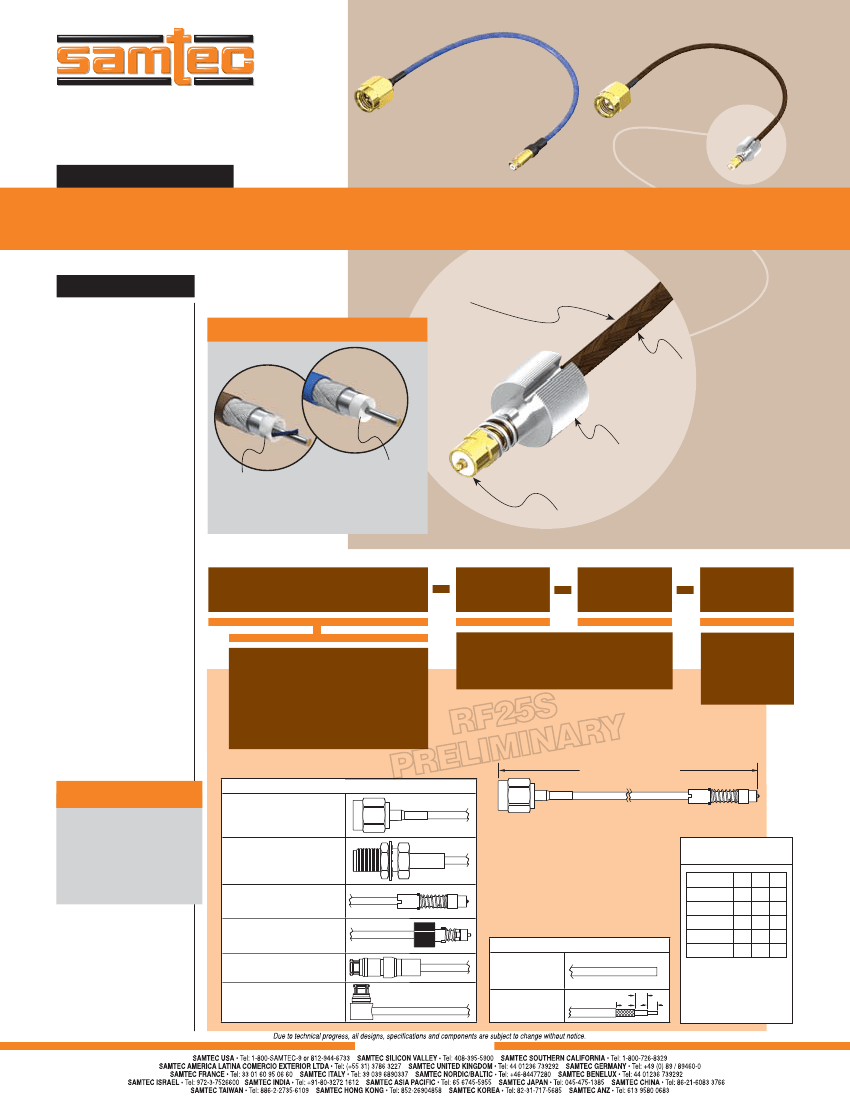

RF-11
RF25S–01SP1–00SJ7–0100
RF25M–01SP1–SCC21–0100
RF25M, RF25S SERIES
50Ω MICROWAVE CABLE ASSEMBLIES
SPECIFICATIONS
For complete specifications
see www.samtec.com?RF25M
or www.samtec.com?RF25S
Mates with:
CCH, SMA, SMP
High frequency
performance to 20 GHz
APPLICATION
25 AWG air enhanced
or rugged solid dielectric
microwave cable
RF Connector:
Outer Contact Material:
Brass (SMA), Gold (SMP)
Center Contact Material:
Brass (SMA Plug)
BeCu (SMA & SMP Jack)
Insulator Material:
PTFE
Operating Temperature:
-65°C to +165°C
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
Frequency Range:
0~20 GHz (SMA),
DC to 20 GHz (SMP)
V.S.W.R:
1.3 max
RoHS Compliant:
Yes
SMA, SMP or Bull’s Eye
®
terminations
air enhanced
dielectric
rugged
solid FEP
dielectric
Cable assembly for
1-position test point
Lower cost alternatives
to semi-flexible cables.
CCA-25M/
MWC-2550-01
Cable:
Type:
Low Loss Microwave Coax
Gauge:
25 AWG Silver plated Copper
Dielectric:
Air enhanced FEP (CCA-25M),
Rugged solid FEP
(MWC-2550-01)
Jacket Material:
FEP
Impedance:
50Ω ±1Ω
Propagation Delay:
3.84 nsec/meter
Capacitance:
75.4 pF/meter
CABLE
TYPE
END 1
CONNECTOR
END 2
CONNECTOR
OVERALL
LENGTH
RF25M
= Air Enhanced Dielectric 25 AWG,
CCA-25M Tempflex Microwave Cable
Specify
END OPTIONS
from chart
–“XXXX”
= Overall Length
in millimeters
–0100 (100mm)
3.94" minimum
RF25S
= Rugged solid FEP Dielectric 25 AWG,
MWC-2550-01 Microwave Cable
XXXX = OAL (millimeters)
ALSO AVAILABLE
• –SCC11 Extraction Tool:
CAT-EX-SCC-01
• SMP Extraction Tool:
CAT-EX-SMP-01
• Additional plating
options available.
Call Samtec.
END OPTIONS
–01SP1
= SMA,
Straight Plug
–01SP1–SCC11 SHOWN
INSTRUMENT
END
PROBE
END
STRIPPED & TINNED
(Dimensions in mm)
CALLOUT
–303030
–303040
–403030
–403040
–404040
A
3.0
3.0
4.0
4.0
4.0
B
3.0
3.0
3.0
3.0
4.0
C
3.0
4.0
3.0
4.0
4.0
–01BJ1
= SMA,
Bulkhead Jack
–SCC11
=
Bull’s Eye
®
Coax Test Point
with standard ferrule
–SCC21
=
Bull’s Eye
®
Coax Test Point
with knurled ferrule
–00SJ7
= SMP
,
Straight Jack
–00RJ7
= SMP
,
Right Angle Jack
Note:
Cable lengths longer than
40.00" (1 meter) are not
supported with S.I. test data.
Note:
Some lengths, styles and
options are non-standard,
non-returnable.
END OPTIONS
–SING
=
Single Ended
(End 2 only)
XXXXXX
=
Stripped & Tinned
(End 2 only)
B
C
A
Both center conductor and
braid shield are stripped,
only the center
conductor is tinned.
Call Samtec for other
sizes or tinning options.
WWW.SAMTEC.COM
