CY54FCT2543CTLM datasheet, PDF

Datasheet> All Categories > logic> logic> CY54FCT2543CTLM

CY54FCT2543CTLM: DescriptionRegistered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28; Categorylogic logic; File Size154KB，4 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

CY54FCT2543CTLM Overview

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28

CY54FCT2543CTLM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	QCCN, LCC28,.45SQ
Contacts	28
Reach Compliance Code	compliant
Other features	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	S-CQCC-N28
JESD-609 code	e0
length	11.43 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.012 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC28,.45SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	6.1 ns
propagation delay (tpd)	8 ns
Certification status	Not Qualified
Maximum seat height	1.9812 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	11.43 mm

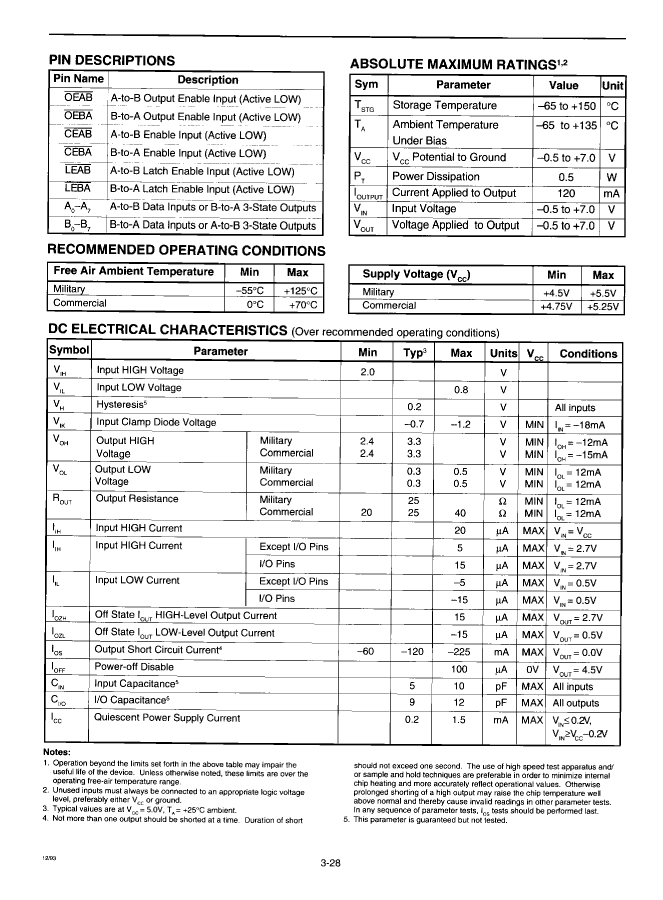

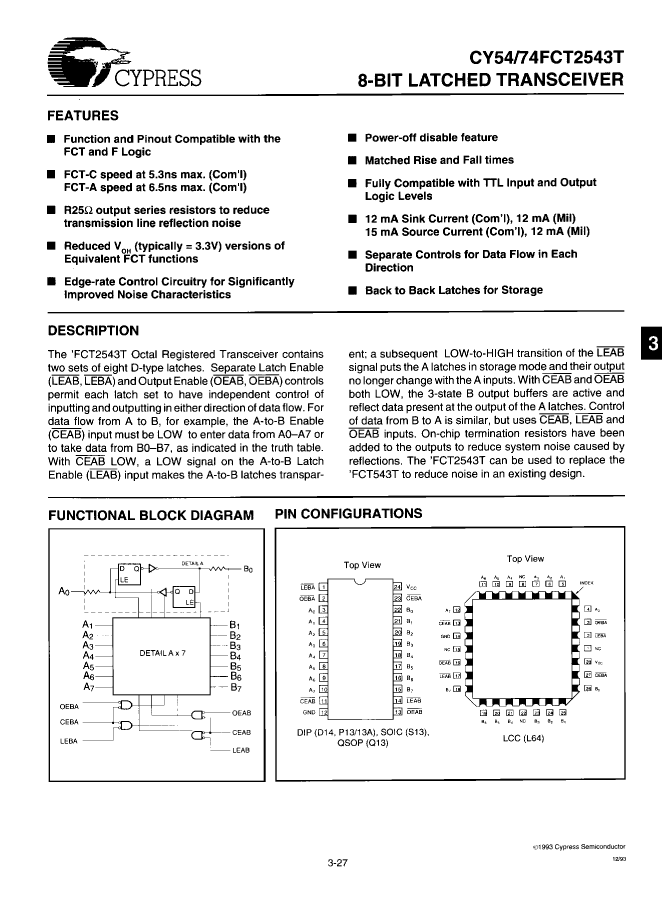

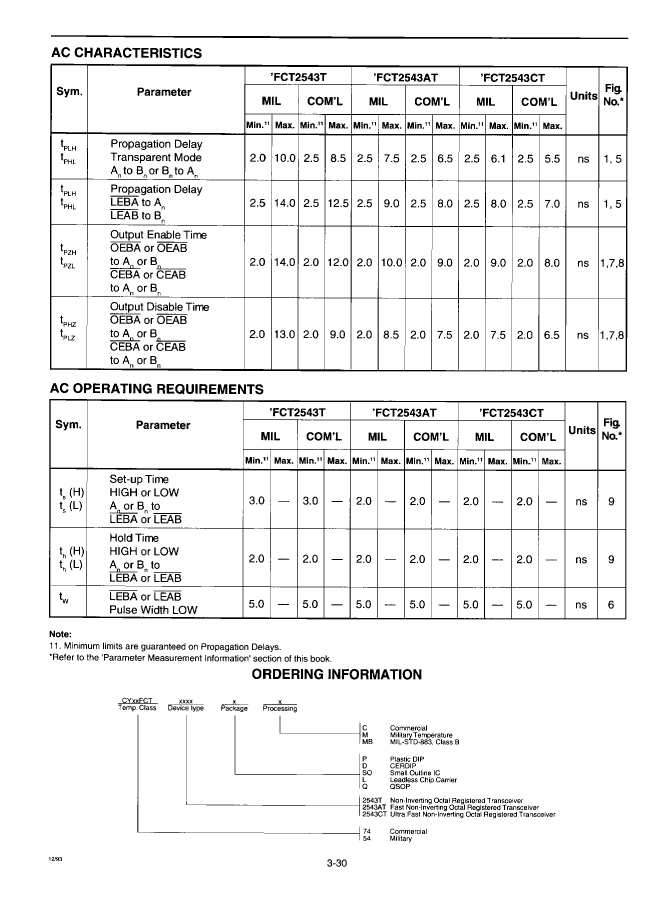

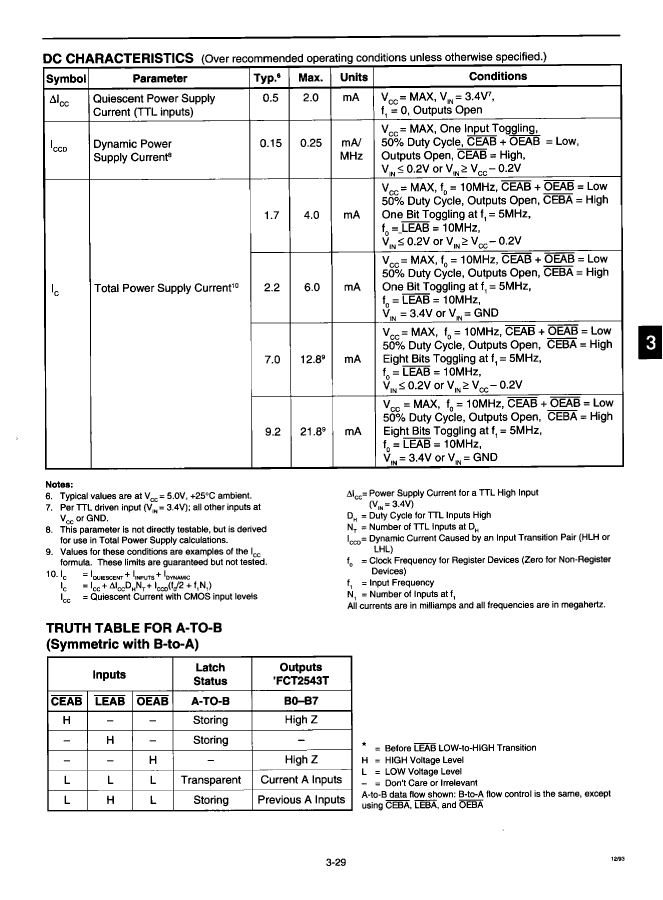

Preview

Download Datasheet

View All

CY54FCT2543CTLM Related Products

	CY54FCT2543CTLM	CY54FCT2543CTDM	CY54FCT2543ATDM	CY54FCT2543ATLM	CY54FCT2543TDM	CY54FCT2543TLM
Description	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24	Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CQCC28, LCC-28
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor	Cypress Semiconductor
Parts packaging code	QLCC	DIP	DIP	QLCC	DIP	QLCC
package instruction	QCCN, LCC28,.45SQ	0.300 INCH, CERDIP-24	DIP, DIP24,.3	QCCN, LCC28,.45SQ	DIP, DIP24,.3	QCCN, LCC28,.45SQ
Contacts	28	24	24	28	24	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR	MASTER CONTROL FOR LATCH AND OUTPUT ENABLES IN EACH DIRECTION; 25 OHM OUTPUT SERIES RESISTOR
Control type	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
series	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	S-CQCC-N28	R-GDIP-T24	R-GDIP-T24	S-CQCC-N28	R-GDIP-T24	S-CQCC-N28
JESD-609 code	e0	e0	e0	e0	e0	e0
length	11.43 mm	31.877 mm	31.877 mm	11.43 mm	31.877 mm	11.43 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A	0.012 A
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of ports	2	2	2	2	2	2
Number of terminals	28	24	24	28	24	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR	3-STATE WITH SERIES RESISTOR
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	QCCN	DIP	QCCN
Encapsulate equivalent code	LCC28,.45SQ	DIP24,.3	DIP24,.3	LCC28,.45SQ	DIP24,.3	LCC28,.45SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	6.1 ns	6.1 ns	7.5 ns	7.5 ns	10 ns	10 ns
propagation delay (tpd)	8 ns	8 ns	9 ns	9 ns	14 ns	14 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.9812 mm	5.08 mm	5.08 mm	1.9812 mm	5.08 mm	1.9812 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
translate	N/A	N/A	N/A	N/A	N/A	N/A
width	11.43 mm	7.62 mm	7.62 mm	11.43 mm	7.62 mm	11.43 mm
