MCSOFV/BJ104.0MHZ: DescriptionCMOS Output Clock Oscillator, 104MHz Nom; CategoryPassive components oscillator; File Size65KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

MCSOFV/BJ104.0MHZ Overview

CMOS Output Clock Oscillator, 104MHz Nom

MCSOFV/BJ104.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRAY; 10 YEARS AGING AVAILABLE
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	MCSOFV
Installation features	SURFACE MOUNT
Nominal operating frequency	104 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
physical size	14.1mm x 9.3mm x 2.4mm
longest rise time	3 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

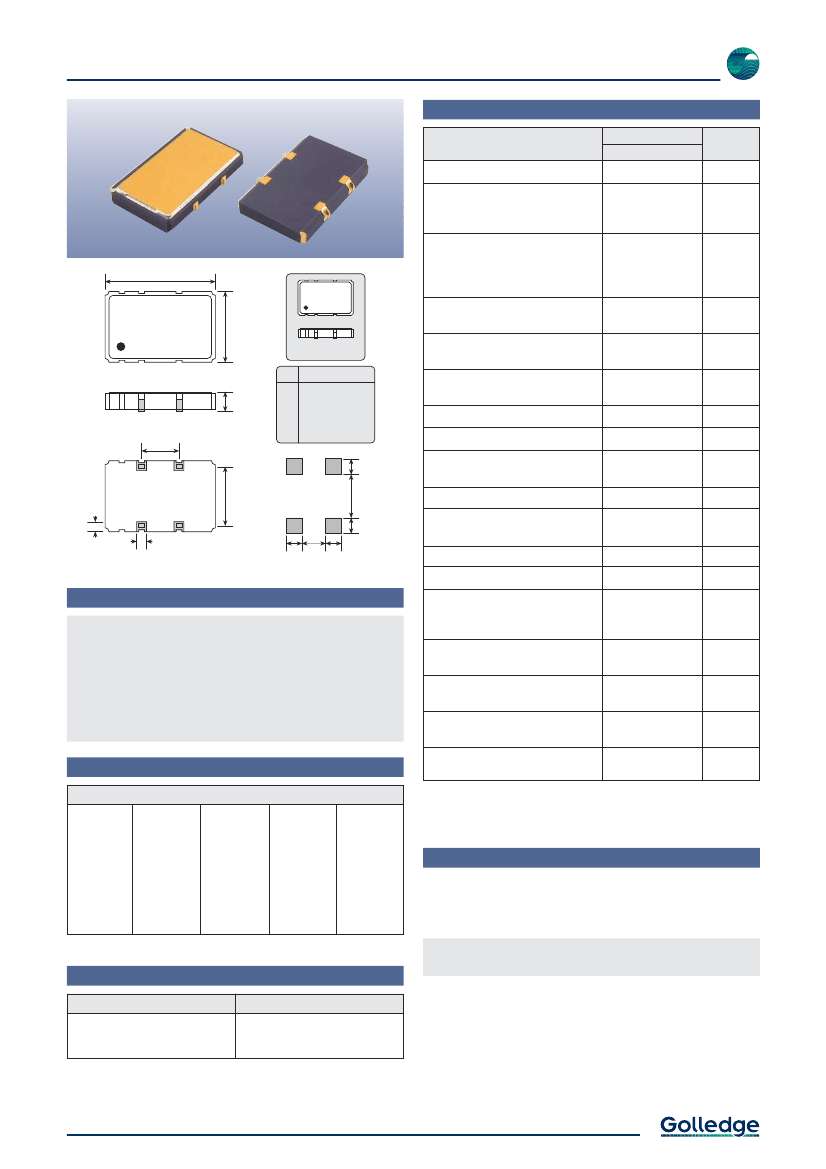

3.3V CMOS Oscillator Low Jitter

Specifications

MCSOFV

Parameters

Product

MCSOFV

Option

Codes

Frequency range:

40.0 ~ 160MHz

Frequency stability*:

±100ppm

±50ppm

tighter stabilities on request

specify

14.10

Operating temperature range:

0 to +70°C

-40 to +85°C

-55 to +125°C

Operable temperature range:

-55 to +125°C

ACTUAL SIZE

PAD

2.40

CONNECTION

Not connected or

Enable/Disable

9.30

Storage temperature range:

-65 to +125°C

Supply voltage (V

Supply current (max):

Driving ability:

2.00

Ground

Output

Supply

+3.3V (±5%)

30mA

CMOS

5.08

1.30

7.30

5.62

2.00

Logic levels:

‘0' level = +0.4V max

‘1' level = V

-0.5V min

Start up time:

5ms max

1.30

Waveform symmetry:

40:60 max @ 50%V

Jitter:

1ps max

3ns max

2.00 3.08 2.00

TOP VIEW

Scale 2:1

Rise / fall times:

Features

Low jitter

Military temperature range option

Excellent shock & vibration resistance

Enable / disable tristate option

Enable / disable function:

None (pad 1 NC)

Tristate (control via pad 1)

Terminations:

Stand-offs

J-leads (drawing on request)

Shock resistance:

5,000G, 0.3ms, ½ sine

Vibration resistance:

10G rms 10.0 ~ 2,000Hz

Soldering condition:

260°C, 10 sec max

Standard.

125.00000

128.00000

131.07200

132.71040

144.00000

150.00000

160.00000

Optional - Please specify required code(s) when ordering

Standard Frequencies

Frequencies in MHz

40.00000

40.60000

40.96000

44.23680

48.00000

49.15200

50.00000

50.75000

51.15000

51.20000

52.00000

55.29600

58.98240

60.00000

60.90000

61.38000

61.44000

64.00000

65.00000

65.53600

66.35520

72.00000

73.72800

76.80000

78.00000

80.00000

81.20000

81.84000

81.92000

88.47360

90.00000

96.00000

98.30400

100.00000

102.40000

104.00000

108.00000

110.59200

117.94600

120.00000

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change and ageing over 10 years.

Ordering Information

Product name + option codes (if any) + frequency

eg:

MCSOFV/A 80.0MHz

±100ppm 0 to +70°C

MCSOFV/TBE 120MHz

±50ppm -40 to +85°C Enable / disable

Option code X (eg MCSOFV/X) denotes a custom specification.

Available on T&R (1k pcs/reel) or trays (50pcs/tray).

Refer to our website for T&R and soldering details.

Other frequencies available. Please consult our sales office.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Tel:

+44 1460 256 100

18 Oct 2004

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
