Not for new designs, this product will be discontinued soon

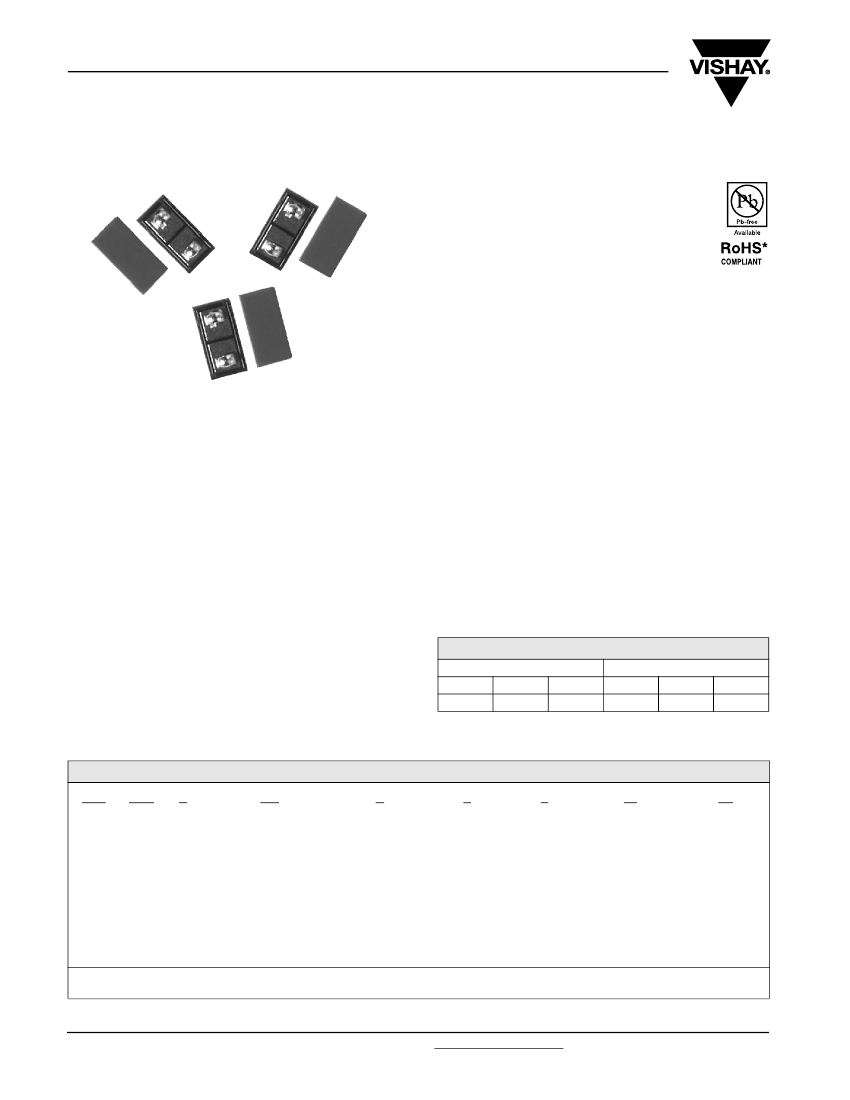

HPC0201A
Vishay
High Performance, High Precision
Surface Mount 0201 Capacitor
FEATURES
•
Terminations are Sn/Ag/Cu or Au.
The standard product is lead (Pb)-free and
RoHS compliant, but terminations containing
lead are available
•
New technology surface mount capacitor based
on a special semiconductor process
•
Construction reduces the parasitic inductance and brings
the SRF values to ultra-high frequencies
•
Capacitance is extremely stable in a wide range of
frequencies from 1 MHz to several GHz
•
High Q and low ESR
•
Tight tolerance to ± 1 % or 0.05 pF
•
Ultra high SRF
•
Low parasitic inductance (~ 0.035 nH)
•
Capacitance range: 0.1 pF to 39 pF
PATENTED
ELECTRICAL SPECIFICATIONS
Operating Temperature:
- 55 °C to + 125 °C
Temperature Coefficient
of Capacitance (TCC):
0 ± 30 ppm/°C
Insulation Resistance:
Voltage:
Ageing:
10
11
Ω
min
2.5 x rated voltage (DC)
for 5 seconds
none
APPLICATIONS
•
•
•
•
•
•
•
•
Wireless communications
Mobile phones
Cordless phones
GPS
VCO
Filter Networks
Matching Networks
Embedded Substrates
ENVIRONMENTAL SPECIFICATIONS
Life Test:
Thermal Shock:
Moisture Resistance:
1000 hours, + 125 °C at
2 x rated voltage (DC)
100 Cycles, - 55 °C/+ 150 °C
1000 hours at rated VDC,
85 % RH, + 85 °C
CAPACITANCE TOLERANCE CODE
FOR LESS THAN 10 pF
A
B
C
± 0.05 pF ± 0.10 pF ± 0.25 pF
FOR 10 pF AND HIGHER
F
±1%
G
±2%
J
±5%
ORDERING INFORMATION
HPC
MODEL
0201
SIZE
A
TYPE
100
CAPACITANCE VALUE
G
CAPACITANCE
TOLERANCE
X
TERMINATION
X
VOLTAGE
T0
PACKAGING
XX
SPECIAL
ENGINEERING
CONTROL
CODE
Leave blank
when no special
requirements
apply
The first two digits are see chart above
significant, the third is a
multiplier. An “R”
indicates a decimal point.
Examples: 101 = 100 pF
4R7 = 4.7 pF
X = Tin/Lead
termination
W = Lead
(Pb)-free
termination
1=6V
Z = 10 V
Y = 16 V
X = 25 V
T0 = 10 000 pcs
T5 = 5000 pcs
T1 = 1000 pcs
tape and reel
“W” terminations preferred.
“See Part Numbering System, Document 10147, for complete explanations.”
* Pb containing terminations are not RoHS compliant, exemptions may apply.
www.vishay.com
8
For technical questions, contact: siliconRFcap@vishay.com
Document Number: 10129
Revision: 16-Dec-08
