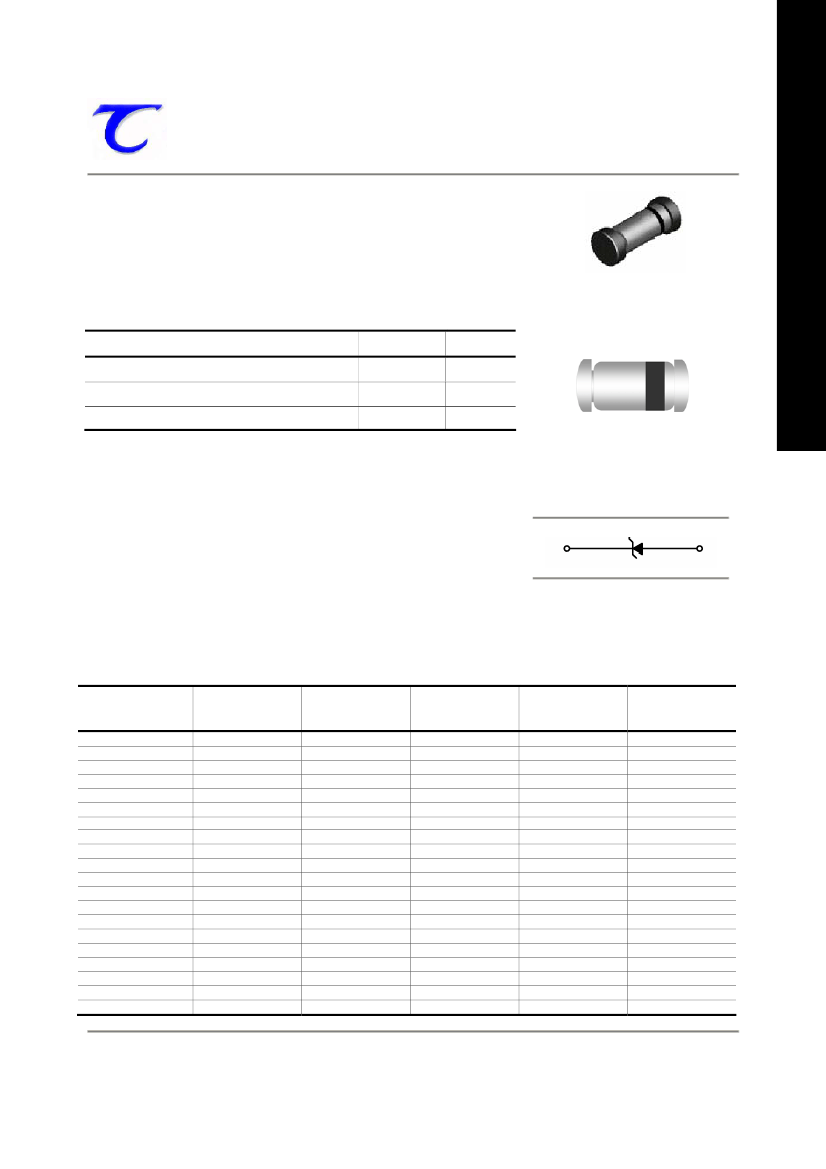

TAK CHEONG
®
SEM IC O N DU C TO R
500 mW LL-34 Hermetically
Sealed Glass Zener Voltage
Regulators
SURFACE MOUNT
LL34
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
T
A
= 25°C unless otherwise noted
Value
500
-65 to +175
+175
Units
mW
°C
°C
Cathode Band Color : Blue
DEVICE MARKING DIAGRAM
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 2.0 to 75 Volts
LL-34 (Mini-MELF) Package
Surface Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Surfaces Are Corrosion Resistant And Terminals Are Readily Solderable
RoHS Compliant
Matte Tin (Sn) Terminal Finish
Color band Indicates Negative Polarity
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device Type
TCLLZ2V0
TCLLZ2V2
TCLLZ2V4
TCLLZ2V7
TCLLZ3V0
TCLLZ3V3
TCLLZ3V6
TCLLZ3V9
TCLLZ4V3
TCLLZ4V7
TCLLZ5V1
TCLLZ5V6
TCLLZ6V2
TCLLZ6V8
TCLLZ7V5
TCLLZ8V2
TCLLZ9V1
TCLLZ10V
TCLLZ11V
TCLLZ12V
Number: DB-059
June 2008 / E
V
Z
@ I
ZT
(Volts)
Nominal
2.0
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZT
@ I
ZT
(Ω)
Max
100
100
100
110
120
120
100
100
100
80
80
60
60
20
20
20
25
30
30
30
I
R
@ V
R
(μA)
Max
120
120
120
100
50
20
10
5
5
5
5
5
5
2
0.5
0.5
0.5
0.2
0.2
0.2
V
R
(Volts)
0.5
0.7
1
1
1
1
1
1
1
1
1.5
2.5
3
3.5
4
5
6
7
8
9
Page 1
TCLLZ2V0 through TCLLZ75V
TAK CHEONG
Electrical Characteristics
Device Type
V
Z
@ I
ZT
(Volts)
Nominal
®
SEM IC O N DU C TO R
T
A
= 25°C unless otherwise noted
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
35
40
40
45
45
30
35
45
55
65
75
85
90
90
110
110
201
230
240
I
R
@ V
R
(μA)
Max
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
V
R
(Volts)
10
11
12
13
15
17
19
21
23
25
27
30
33
36
39
43
47
51
56
TCLLZ13V
13
5
TCLLZ15V
15
5
TCLLZ16V
16
5
TCLLZ18V
18
5
TCLLZ20V
20
5
TCLLZ22V
22
5
TCLLZ24V
24
5
TCLLZ27V
27
2
TCLLZ30V
30
2
TCLLZ33V
33
2
TCLLZ36V
36
2
TCLLZ39V
39
2
TCLLZ43V
43
2
TCLLZ47V
47
2
TCLLZ51V
51
2
TCLLZ56V
56
2
TCLLZ62V
62
2
TCLLZ68V
68
2
TCLLZ75V
75
2
V
F
Forward Voltage = 1.2 V Maximum @
I
F
= 200 mA for all types
Notes:
1.
2.
3.
The type numbers listed have zener voltage min/max limits as shown and have a standard tolerance on the nominal zener
voltage of 5%.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Tak Cheong Electronics representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
Number: DB-059
June 2008 / E
Page 2
TAK CHEONG
Typical Characteristics
600
®
SEM IC O N DU C TO R
1000
Total Capacitance [pF]
f = 1MHz
Ta = 25
℃
100
VR = 0V
VR = 2V
VR = 5V
PD-Power Passipation [mW]
500
400
300
200
100
VR = 20V
10
VR = 30V
0
0
40
1
Temperature [
℃
]
80
120
160
200
0
20
40
VZ - Reverse Voltage [V]
60
80

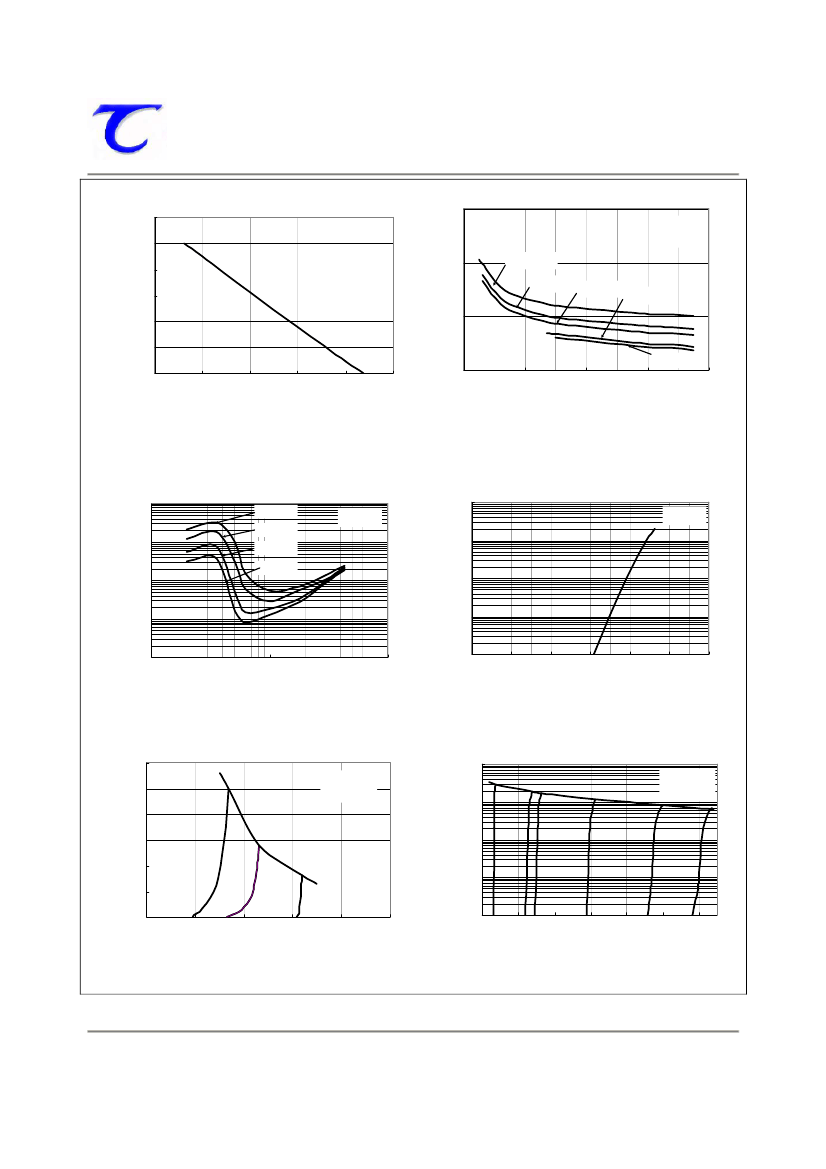

Figure 1. Power Dissipation vs Ambient Temperature
Valid provided leads at a distance of 0.8mm from case are kept at
ambient temperature
Figure 2. Total Capacitance
Differential Zener Impedance [Ω]
1000
1000
Iz=1mA
Iz=2mA
Ta = 25
℃
Forward Current [mA]
100
Ta = 25
℃
100
Iz=5mA
Iz=10mA
10
10
1
1
0.1
1
10
VZ - Reverse Voltage [V]
100
0.1
0
0.2
0.4
0.6
0.8
VF - Forw ard Voltage [m V]
1
1.2
Figure 3. Differential Impedance vs. Zener Voltage
Figure 4. Forward Current vs. Forward Voltage
300
250
Reverse Current [mA]
200
150
100
50
0
0
2
4
6
VZ - Reverse Voltage [V]
8
10
PD = 500mW
Ta = 25
℃
100
PD = 500mW
Ta = 25
℃
Reverse Current [mA]
10
1
0.1
0.01
15
25
35
45
55
65
VZ - Reverse Voltage [V]
75
Figure 5. Reverse Current vs. Reverse Voltage
Figure 6. Reverse Current vs. Reverse Voltage
Number: DB-059
June 2008 / E
Page 3
TAK CHEONG
Package Outline
Package
®
SEM IC O N DU C TO R
Case Outline
B
LL-34
DIM
LL34
A
A
B
C
C
Min
3.302
1.397
0.350
Millimeters
Max
3.505
1.499
0.500
Min
0.130
0.055
0.014
Inches
Max
0.138
0.059
0.020
Notes:
1.
2.
All dimensions are within DO213AC JEDEC standard.
LL-34 polarity denoted by cathode band.
Number: DB-059
June 2008 / E
Page 4
TAK CHEONG
®
DISC LA I MER NOTIC E
NOTICE
The information presented in this document is for reference only. Tak Cheong reserves the right to make
changes without notice for the specification of the products displayed herein.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not
designed to be used with equipment or devices which require high level of reliability and the malfunction of with
would directly endanger human life (such as medical instruments, transportation equipment, aerospace
machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Tak Cheong Semiconductor
Co., Ltd., or anyone on its behalf, assumes no responsibility or liability for any damagers resulting from such
improper use of sale.
This publication supersedes & replaces all information reviously supplied. For additional information, please visit
our website
http://www.takcheong.com,
or consult your nearest Tak Cheong’s sales office for further assistance.
Number: DB-100
April 14, 2008 / A
