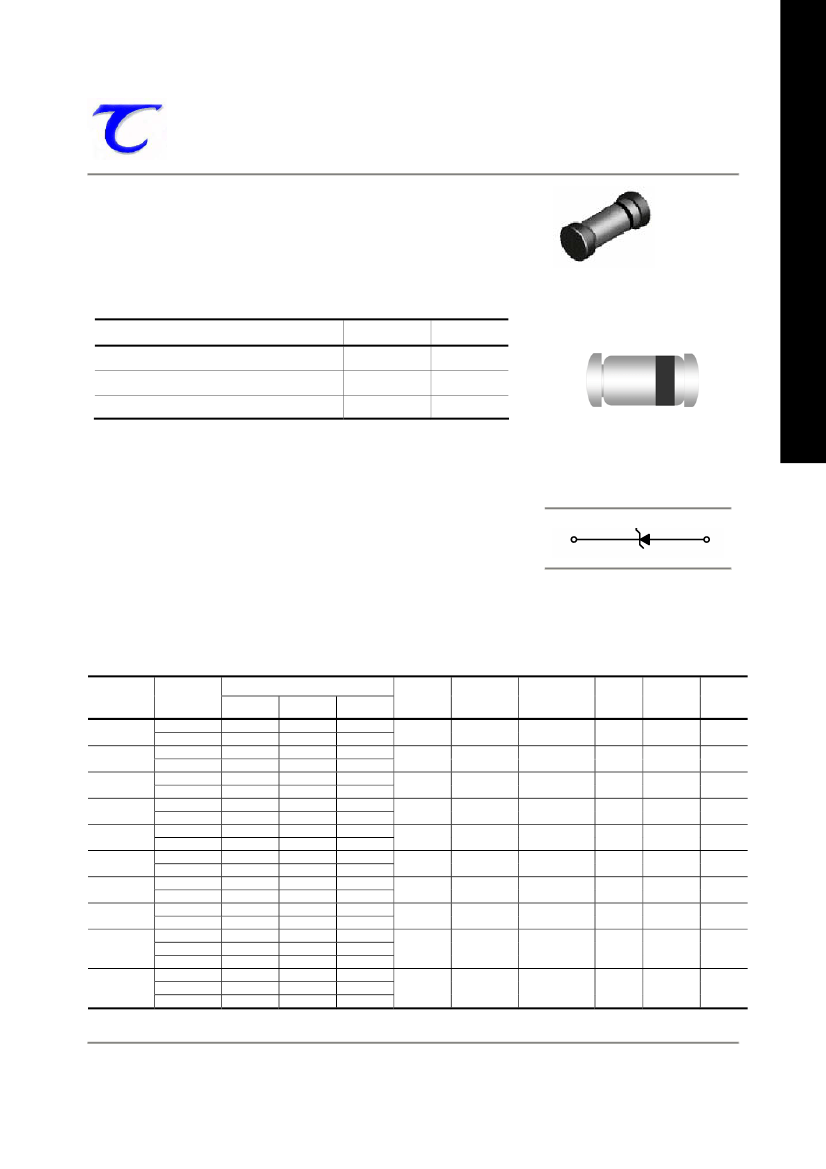

500 mW LL-34 Hermetically
Sealed Glass Zener Voltage
Regulators
SURFACE MOUNT
LL34
Absolute Maximum Ratings
Parameter
Power Dissipation
Storage Temperature Range
Operating Junction Temperature
T
A
= 25°C unless otherwise noted
Value
500
-65 to +175
+175
Units
mW
°C
°C
Cathode Band Color : Blue
DEVICE MARKING DIAGRAM
These ratings are limiting values above which the serviceability of the diode may be impaired.
Specification Features:
Zener Voltage Range 2.0 to 39 Volts (Graded)
LL-34 (Mini-MELF) Package
Surface Device Type Mounting
Hermetically Sealed Glass
Compression Bonded Construction
All External Surfaces Are Corrosion Resistant And Terminals Are Readily Solderable
RoHS Compliant
Matte Tin (Sn) Terminal Finish
Color band Indicates Negative Polarity
ELECTRICAL SYMBOL
Cathode
Anode
Electrical Characteristics
Device
Type
TCLZJ2V0
TCLZJ2V2
TCLZJ2V4
TCLZJ2V7
TCLZJ3V0
TCLZJ3V3
TCLZJ3V6
TCLZJ3V9
TCLZJ4V3
VZ
Tolerance
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
A
B
C
A
B
C
Min
1.880
2.020
2.120
2.220
2.330
2.430
2.540
2.690
2.850
3.010
3.160
3.320
3.455
3.600
3.740
3.890
4.040
4.170
4.300
4.44
4.55
4.68
T
A
= 25°C unless otherwise noted
VZ@IZT
Nom
1.990
2.110
2.210
2.315
2.425
2.530
2.645
2.800
2.960
3.115
3.270
3.425
3.575
3.723
3.875
4.025
4.165
4.300
4.435
4.56
4.68
4.81
Max
2.100
2.200
2.300
2.410
2.520
2.630
2.750
2.910
3.070
3.220
3.380
3.530
3.695
3.845
4.010
4.160
4.290
4.430
4.570
4.68
4.80
4.93
Izt
(mA)
5
5
5
5
5
5
5
5
5
Zzt@Izt
(Ohms)
Max
100
100
100
110
120
120
100
100
100
Zzk@Izk
(Ohms)
Max
1000
1000
1000
1000
1000
1000
1000
1000
1000
Izk
(mA)
0.5
0.5
0.5
0.5
0.5
0.5
1
1
1
I
R
@V
R
(uA)
Max
120
100
120
100
50
20
10
5
5
V
R
(V)
0.5
0.7
1.0
1.0
1.0
1.0
1.0
1.0
1.0
TCLZJ4V7
5
80
900
1
5
1.0
Number: DB-067
July 2008 / B
Page 1
TCLZJ2V0 through TCLZJ39V
®
TAK CHEONG
SEM IC O N DU C TO R
Electrical Characteristics
Device
Type
TCLZJ5V1
T
Tolerance
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
D
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
D
A
B
C
D
A
B
C
D
A
B
C
D
Min
4.81
4.94
5.09
5.28
5.45
5.61
5.78
5.96
6.12
6.29
6.49
6.66
6.85
7.07
7.29
7.53
7.78
8.03
8.29
8.57
8.83
9.12
9.41
9.70
9.94
10.18
10.50
10.82
11.13
11.44
11.74
12.11
12.55
12.99
13.44
13.89
14.35
14.80
15.25
15.69
16.22
16.82
17.42
18.02
18.63
19.23
19.72
20.15
20.64
21.08
21.52
22.05
22.61
23.12
23.63
24.26
24.97
25.63
26.29
T
A
= 25°C unless otherwise noted
V
Z
@Izt
Nom
4.94
5.07
5.23
5.41
5.59
5.76
5.94
6.12
6.28
6.46
6.66
6.84
7.04
7.26
7.48
7.73
7.99
8.24
8.51
8.79
9.07
9.36
9.66
9.95
10.19
10.45
10.78
11.10
11.42
11.74
12.05
12.43
12.88
13.33
13.79
14.26
14.72
15.19
15.65
16.10
16.64
17.26
17.88
18.49
19.11
19.73
20.22
21.68
21.18
21.63
22.08
22.62
23.19
23.72
24.24
24.89
25.62
26.29
26.97
Max
5.07
5.20
5.37
5.55
5.73
5.91
6.09
6.27
6.44
6.63
6.83
7.01
7.22
7.45
7.67
7.92
8.19
8.45
8.73
9.01
9.30
9.59
9.90
10.20
10.44
10.71
11.05
11.38
11.71
12.03
12.35
12.75
13.21
13.66
14.13
14.62
15.09
15.57
16.04
16.51
17.06
17.70
18.33
18.96
19.59
20.22
20.72
21.20
21.71
22.17
22.63
23.18
23.77
24.31
24.85
25.52
26.26
26.95
27.64
Izt
(mA)
5
Zzt@Izt
(Ohms)
Max
80
Zzk@Izk
(Ohms)
Max
800
Izk
(mA)
1
I
R
@V
R
(uA)
Max
5
V
R
(V)
1.5
TCLZJ5V6
5
60
500
1
5
2.5
TCLZJ6V2
5
60
300
1
5
3.0
TCLZJ6V8
5
20
150
0.5
2
3.5
TCLZJ7V5
5
20
120
0.5
0.5
4.0
TCLZJ8V2
5
20
120
0.5
0.5
5.0
TCLZJ9V1
5
25
120
0.5
0.5
6.0
TCLZJ10V
5
30
120
0.5
0.2
7.0
TCLZJ11V
5
30
120
0.5
0.2
8.0
TCLZJ12V
5
30
110
0.5
0.2
9.0
TCLZJ13V
5
35
110
0.5
0.2
10
TCLZJ15V
5
40
110
0.5
0.2
11
TCLZJ16V
5
40
150
0.5
0.2
12
TCLZJ18V
5
45
150
0.5
0.2
13
TCLZJ20V
5
55
200
0.5
0.2
15
TCLZJ22V
5
30
200
0.5
0.2
17
TCLZJ24V
5
35
200
0.5
0.2
19
TCLZJ27V
5
45
250
0.5
0.2
21
Number: DB-067
July 2008 / B
Page 2
®
TAK CHEONG
SEM IC O N DU C TO R
Electrical Characteristics
Device
Type
T
Tolerance
Min
T
A
= 25°C unless otherwise noted
V
Z
@Izt
Nom
Max
Izt
(mA)
Zzt@Izt
(Ohms)
Max
55
Zzk@Izk
(Ohms)
Max
Izk
(mA)
I
R
@V
R
(uA)
Max
0.2
V
R
(V)
A
26.99
27.69
28.39
B
27.70
28.42
29.13
TCLZJ30V
C
28.36
29.09
29.82
D
29.02
29.77
30.51
A
29.68
30.45
31.22
B
30.32
31.10
31.88
TCLZJ33V
C
30.90
31.70
32.50
D
31.49
32.30
33.11
A
32.14
32.97
33.79
B
32.79
33.64
34.49
TCLZJ36V
C
33.40
34.27
35.13
D
34.01
34.89
35.77
A
34.68
35.58
36.47
B
35.36
36.28
37.19
TCLZJ39V
C
36.00
36.93
37.85
D
36.63
37.58
38.52
VF (forward voltage) = 1.2 V maximum @ IF = 200mA for all types
5
250
0.5
23
5
65
250
0.5
0.2
25
5
75
250
0.5
0.2
27
5
85
250
0.5
0.2
30
Notes:
1. TOLERANCE AND VOLTAGE DESIGNATION
The type numbers listed have zener voltage as shown
2. SPECIALS AVAILABLE INCLUDE
Nominal zener voltages between the voltages shown and tighter voltage, for detailed information on price, availability and delivery,
contact you nearest Tak Cheong representative.
3. ZENER VOLTAGE (V
Z
) MEASUREMENT
The zener voltage is measured under pulse conditions such that T
J
is no more than 2℃ above T
A
.
4. ZENER IMPEDANCE (Z
Z
) DERIVATION
Zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an RMS value equal to 10% of the
dc zener current (I
ZT
) is superimposed to
I
ZT
.
5. WHEN ORDERING, PLEASE SPECIFY TOLERANCE A, B. C OR D
Number: DB-067
July 2008 / B
Page 3
®
TAK CHEONG
SEM IC O N DU C TO R

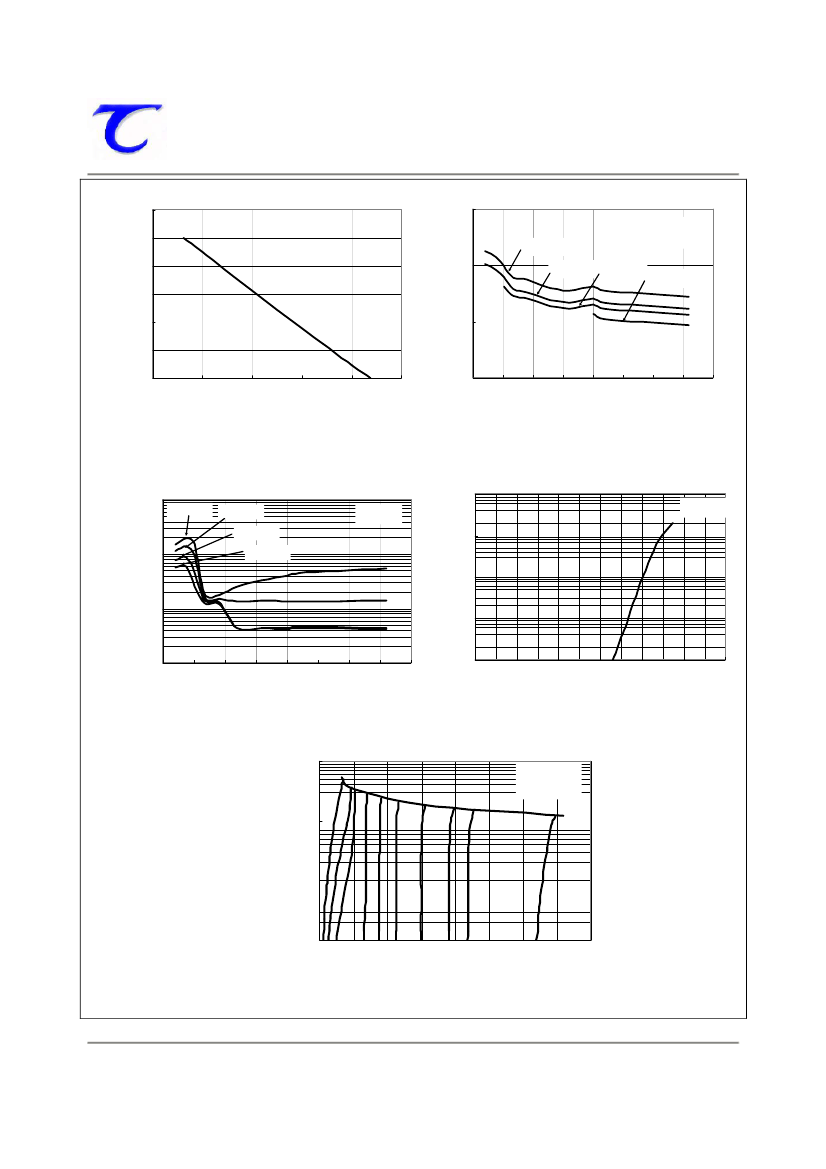

Typical Characteristics
600
1000
PD-Power Passipation [mW]
Total Capacitance [pF]
500
400
300
200
100
0
0
40
VR = 0V
f = 1MHz
Ta = 25
℃
VR = 5V
100
VR = 2V
VR = 20V
10
1
Temperature [
℃
]
80
120
160
200
0
5
10
15
20
25
30
35
40
VZ - Reverse Voltage [V]
Figure 1. Power Dissipation vs Ambient Temperature
Valid provided leads at a distance of 0.8mm from case are kept at
ambient temperature
Figure 2. Total Capacitance
Differential Zener Impedance [Ω]
10000
Iz=1mA
Iz=2mA
Iz=5mA
1000
Ta = 25
℃
Forward Current [mA]
100
Ta = 25
℃
100
Iz=10mA
10
1
1
0.01
0
5
10
15
20
25
30
VZ - Reverse Voltage [V]
35
40
0.1
0
0.2
0.4
0.6
0.8
VF - Forw ard Voltage [m V]
1
1.2
Figure 3. Differential Impedance vs. Zener Voltage
Figure 4. Forward Current vs. Forward Voltage
1000
PD = 500mW
Ta = 25
℃
Reverse Current [mA]
10
0.1
0.001
0
5
10
15
20
25
30
VZ - Reverse Voltage [V]
35
40
Figure 5. Reverse Current vs. Reverse Voltage
Number: DB-067
July 2008 / B
Page 4
®
TAK CHEONG
SEM IC O N DU C TO R
Package Outline
Package
Case Outline
B
LL-34
DIM
LL34
A
A
B
C
C
Min
3.302
1.397
0.350
Millimeters
Max
3.505
1.499
0.500
Min
0.130
0.055
0.014
Inches
Max
0.138
0.059
0.020
Notes:
1.
2.
All dimensions are within DO213AC JEDEC standard.
LL-34 polarity denoted by cathode band.
Number: DB-067
July 2008 / B
Page 5
