50825-3046FC datasheet, PDF - EEWORLD Datasheet

50825-3046FC: DescriptionBoard Connector, 138 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size211KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

50825-3046FC Overview

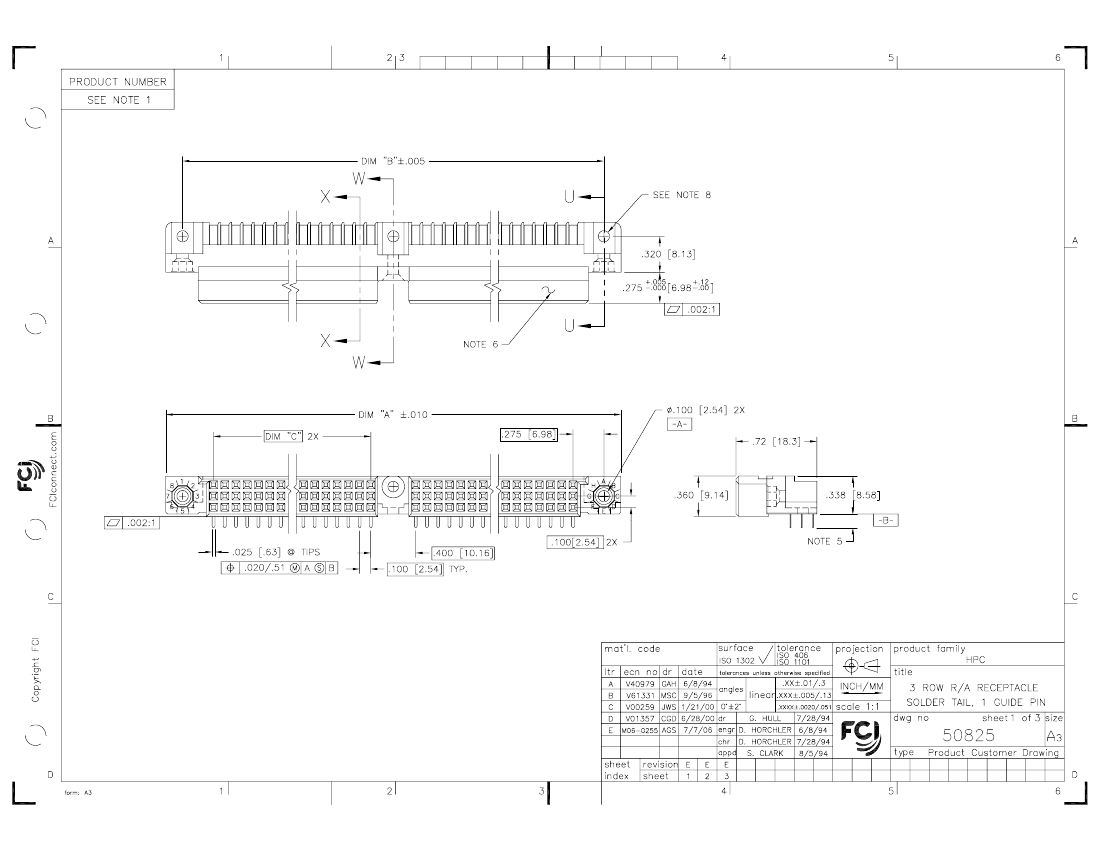

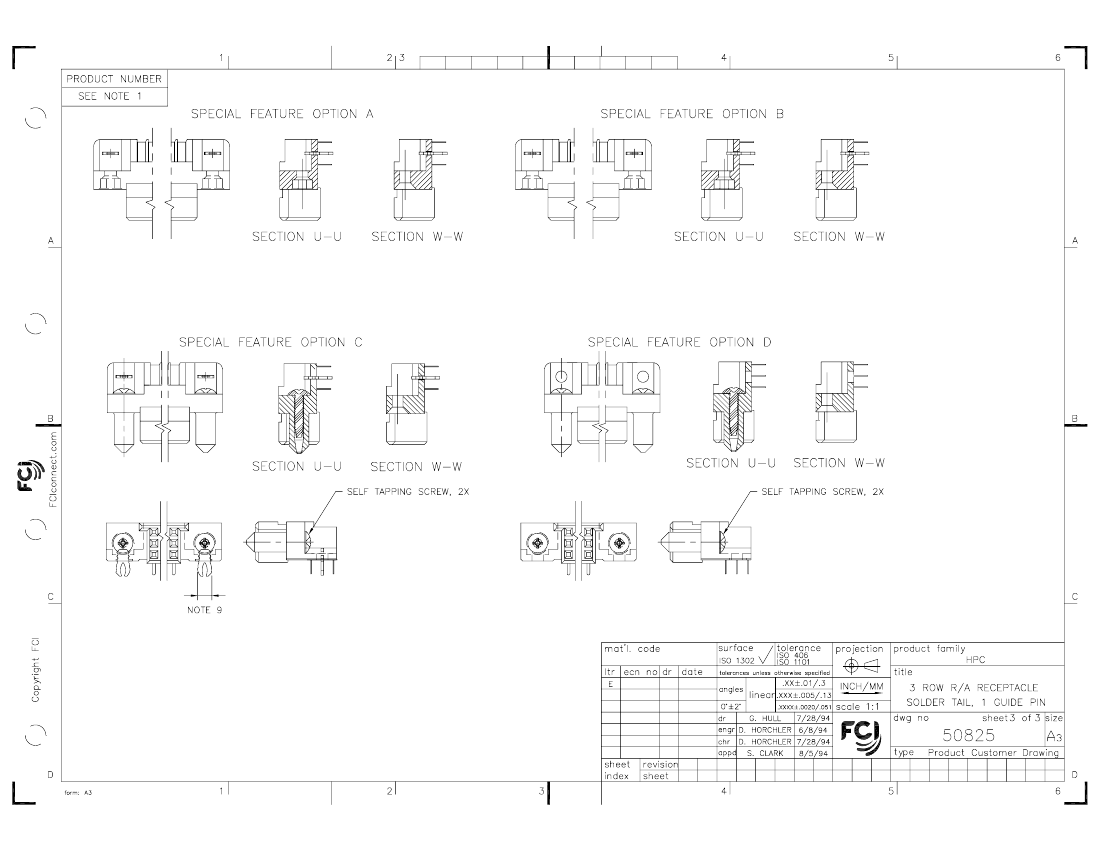

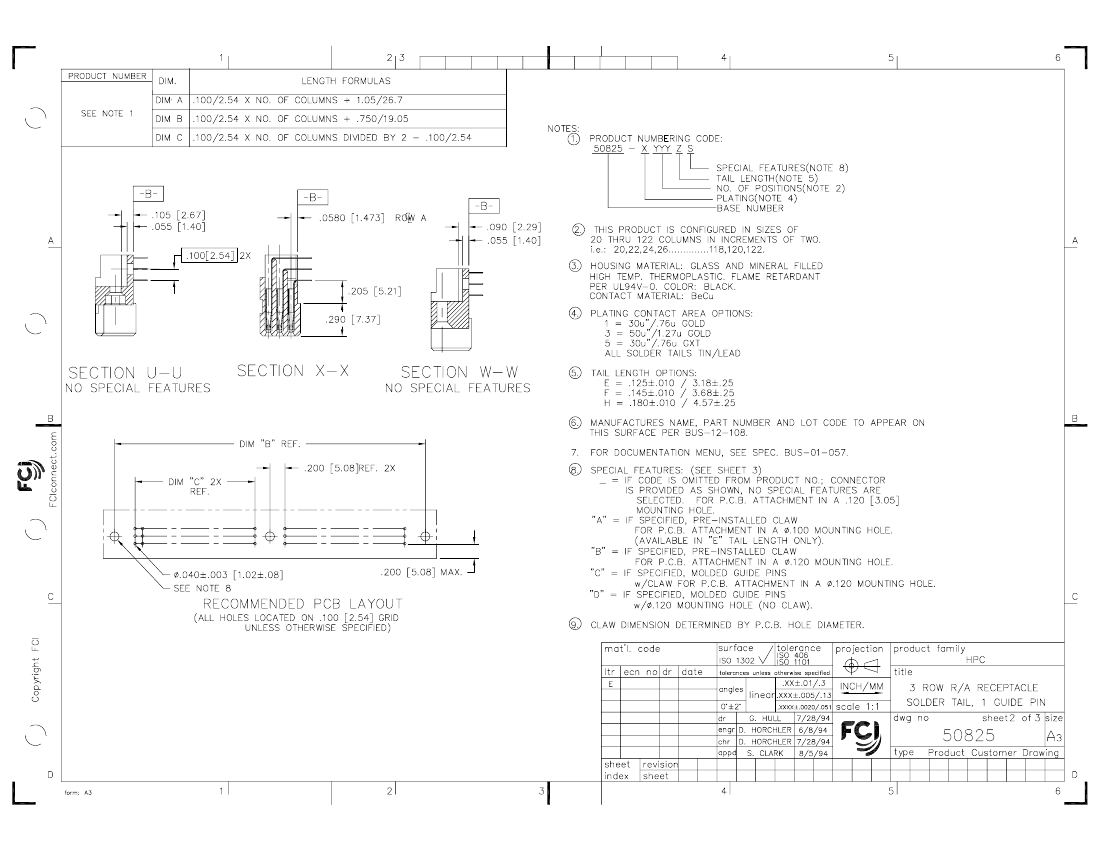

Board Connector, 138 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Pin, Black Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1745582239
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.36 inch
subject depth	0.72 inch
body length	4.641 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	50825
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	138
UL Flammability Code	94V-0

PDM: Rev:E

STATUS:

Released

Printed: Sep 10, 2009
