Dual System
Elevated-Feed-Point Antennas
Models
ASPD913TGPS
ASPSD917TGPS
Dual-System Design
cellular with active GPS
capabilities
Cellular Elevated-Feed-Point Design
for ground-
plane-independent applications
Choice of Mounts
Angle adjustable trunk lid or
mirror bracket (for horizontal or vertical mirror
supports on side of cab)
Versatile
ASPSD917TGPS offers patented OMNI-LOC
swivel allows for up to 25° vertical angle
adjustment to meet the needs of sloping car
trunks
ASPD913TGPS ground-plane independent
design allows installation on horizontal or
vertical mirror supports on side of cab
Economical
need to install only one antenna
instead of two, maximizing installation time and
labor
Problem Solver
corrects coverage problems when
rooftop antennas cannot be installed
Weatherproof
ultrasonic seal protects GPS
antenna against extreme weather conditions
Tele-Locator
NEW!
NEW!

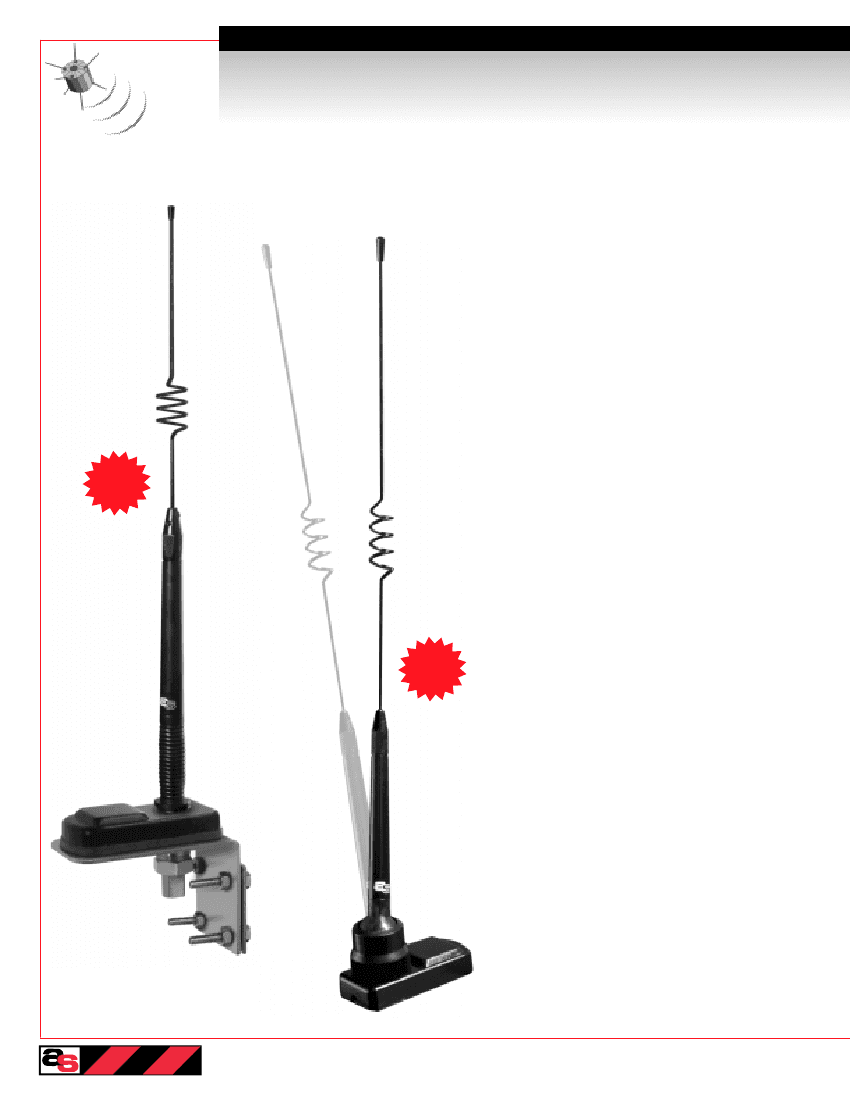

ASPSD917TGPS
ASPD913TGPS
Cellular/GPS
elevated-feed-point
antenna for mirror
mount style
applications;
includes cables and
connectors.
Cellular/GPS
elevated-feed-point
trunk lid mount
antenna with cable.
®Stripes of Quality
8
w w w . a n t e n n a . c o m
A
N
T
E
N
N
A
S
Specifications
Electrical
Frequency Range
Gain
VSWR
Power Rating
Bandwidth
Impedance
E-plane Beamwidth
H-plane Beamwidth
Polarization
Mechanical
Cable
Connector
Weather Protection
Whip Material
Bracket Material
Antenna Length
Mount Material
Mount Length
ASPD913TGPS
824-894 MHz
3 dBd (5 dBi)
1.9:1 typical
10 watts
70 MHz
50 Ohms
29°
Omnidirectional
Vertical
17 ft (5.2 m)
RG-58/U
TNC male
Ultrasonic seal
Stainless steel with black
DURA-COAT finish
Stainless Steel
24 inches (61 cm)
ABS
3-7/8 inches (9.8 cm)
ASPSD917TGPS
824-894 MHz
3 dBd (5 dBi)
1.9:1
10 watts
70 MHz
50 Ohms
35°
Omnidirectional
Vertical
17 ft (5.2 m)
PRO-FLEX PLUS
TNC loose
Ultrasonic seal
Stainless steel with black
DURA-COAT finish
24 inches (61 cm)
ABS
3-7/8 inches (9.8 cm)
GPS
1575.42 MHz
21 dBic @ zenith
1.5:1
50 Ohms
RHCP
10 ft (3.0 m)
RG-174/U
MCX plug
Ultrasonic seal

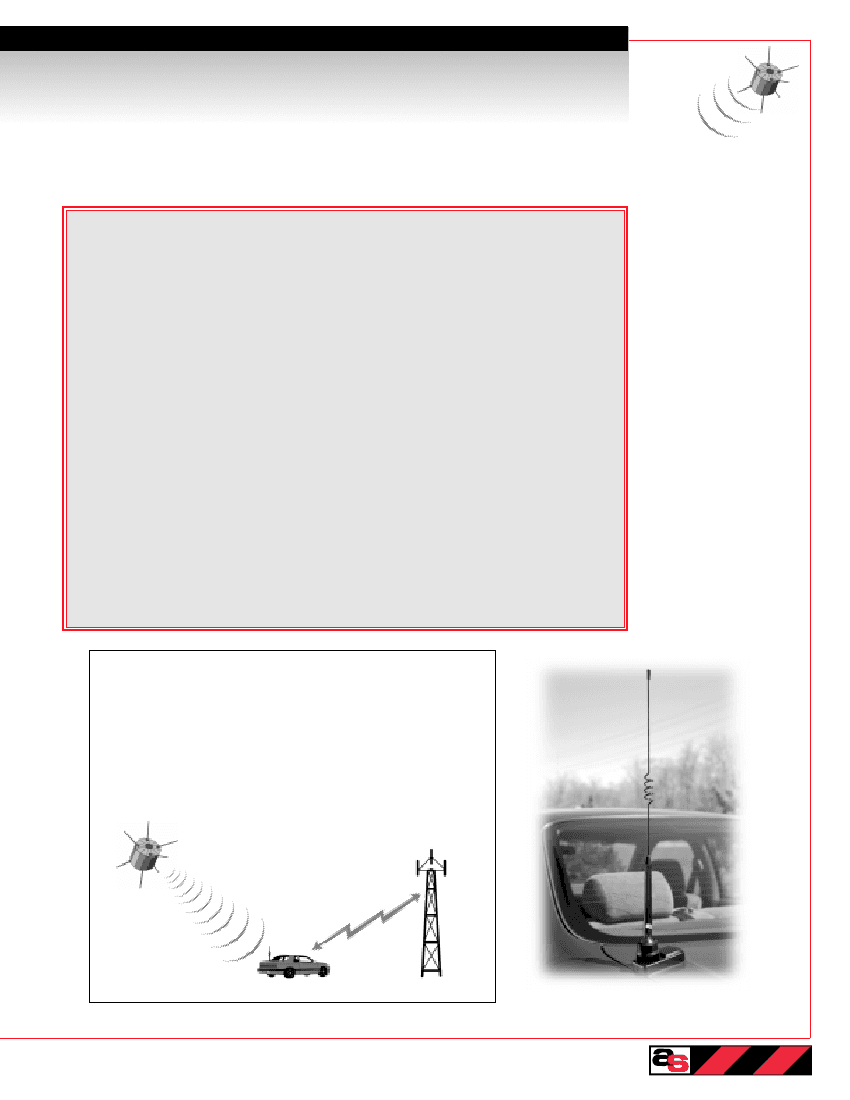

As GPS technologies have matured, more consumer aftermarket
applications have been developed. Service providers have joined
together to combine integrated voice and data cellular service
along with the benefits of GPS location capabilities to provide
many user benefits, including an ideal solution to the E9-1-1
problem for cellular phone users. Stranded motorists, for
example, may use their in-vehicle GPS system to identify their
location, and their cellular phone to call for help. Additionally,
trucking fleets are able to track their assets while the driver has
nationwide cellular communications at his fingertips.
GPS Satellite
Cell Site
