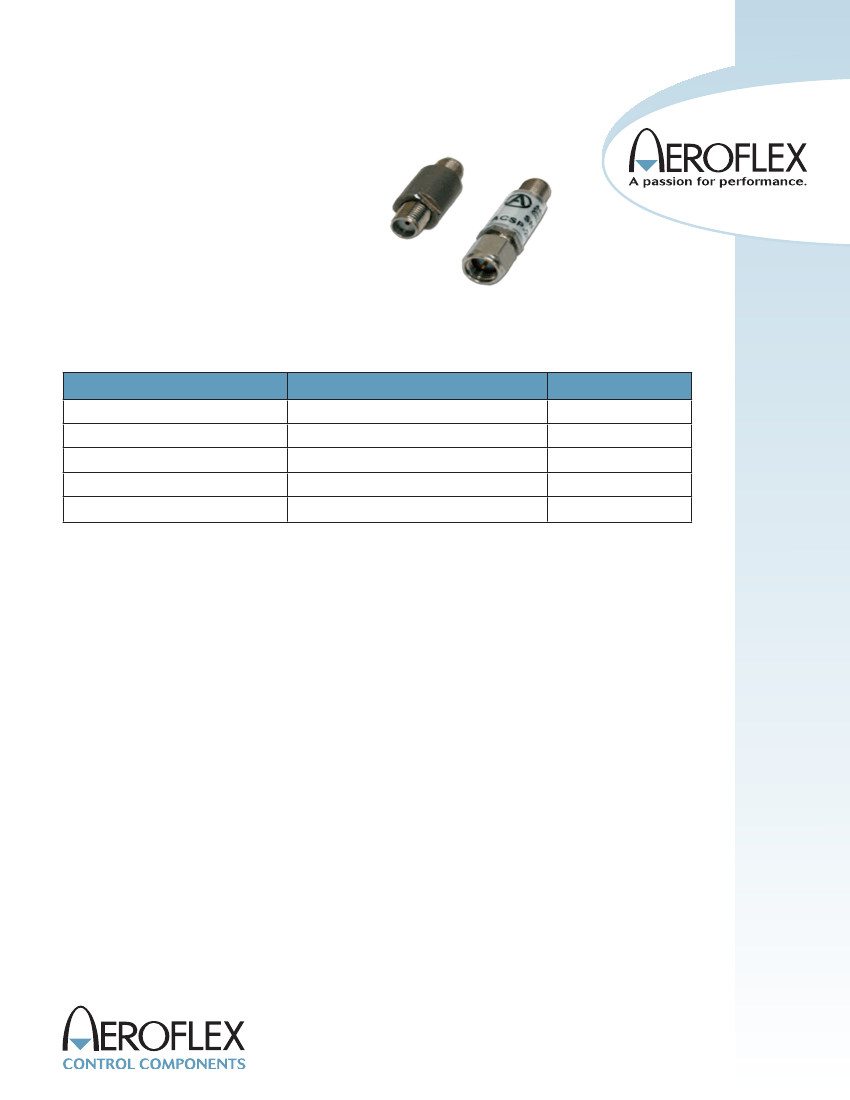

ACSP-2544
Padded Zero Bias Schottky Detector
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Flatness vs. Frequency (max)
Typical TSS
Internal Attenuation
Sensitivity (min)
Specification
Units
GHz
mV/mW
±dB
dBm
pF
0.01 – 18
0.5/octave
-45
6
500
Notes:
Maximum input power: +23dBm
Sensitivity is measured into an open circuit load
(>10k ohm).
The temperature performance of the zero bias
schottky is poor when operating at low input power
levels.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method
2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/acc, email: acc-sales@aeroflex.com
Revision Date: 2/23/2011

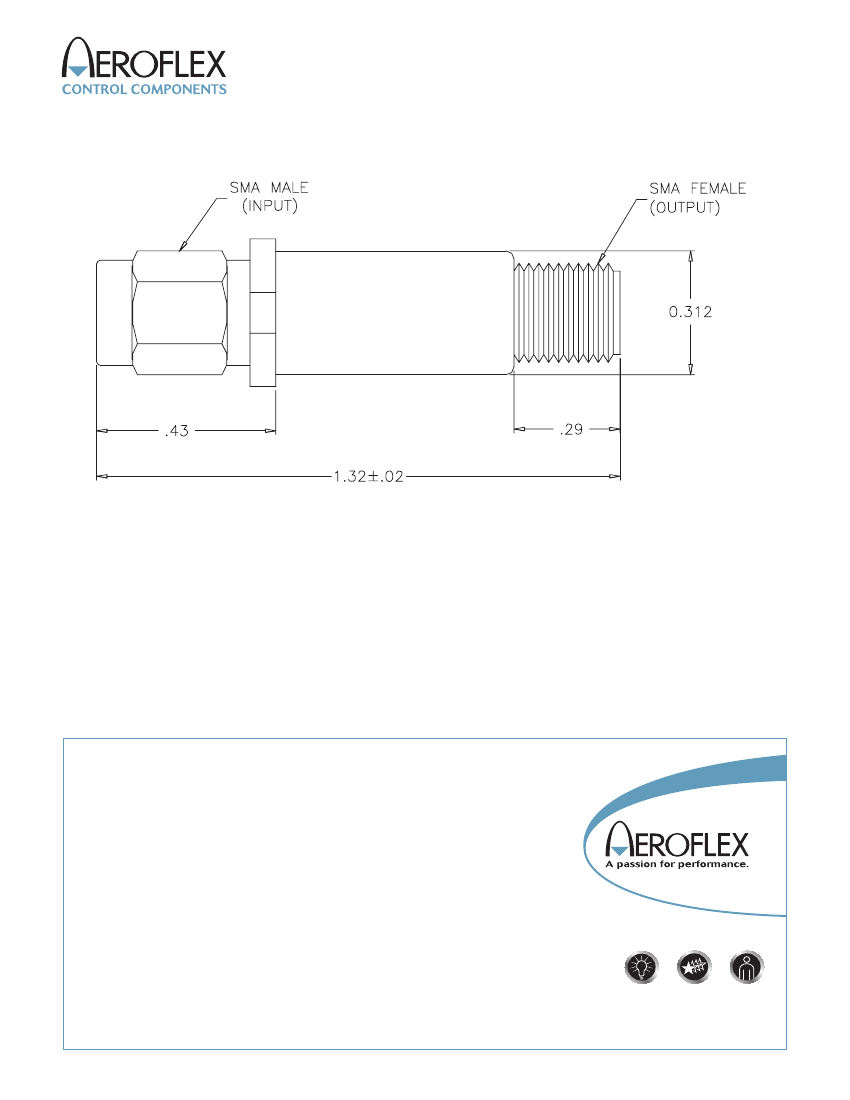

Outline Drawing:
STANDARD CASE STYLE C3
(Optional Case Styles – C8, C15, C32)
Part Number Ordering Information:
•
•
•
•
•
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACSP-2544N)
Add “Z” for zero biased schottky (Ex: ACSP-2544NZ)
Add desired case style suffix: “C3” (Ex: ACSP-2544NZC3)
Add “R” suffix: Reverse Connector Configuration (Ex: ACLM-2544NZC3R) (SMA Female
Input/SMA Male Output)
Add “-RC” suffix: RoHS-compliant (Ex: ACSP-2544NZC3-RC)
Aeroflex Control Components
Aeroflex Microelectronic Solutions
40 Industrial Way East
Eatontown , NJ 07724 [USA]
Fax: (732) 460-0214
Sales
Phone: (732) 460-0212
ACC-sales@aeroflex.com
ISO 9001:2008 certified
www.aeroflex.com/Microwave www.aeroflex.com/ACC
Aeroflex Control Components reserves the right to make changes to any products
and services herein at any time without notice. Consult Aeroflex or an authorized
sales representative to verify that the information in this data sheet is current before
using this product. Aeroflex does not assume any responsibility or liability arising
out of the application or use of any product or service described herein, except as
expressly agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a
product or service from Aeroflex convey a license under any patent rights, copyrights,
trademark rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2011 Aeroflex Control Components. All rights reserved.
