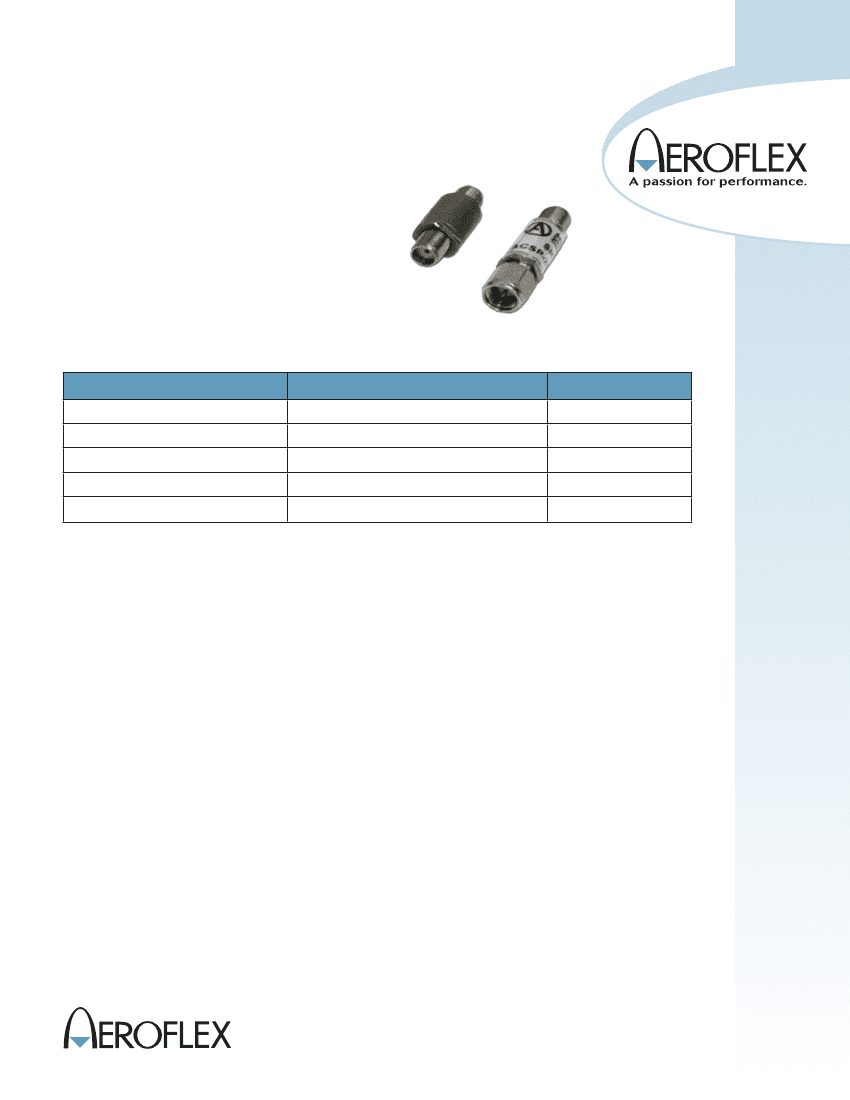

ACSP-2544

Padded Zero

Bias

Schottky Detector

Features:

•

Contains hermetically sealed modules, inter-

nal RF matching, DC return, and RF

Bypass

capacitor.

The video port is protected from static or

transient charges.

Input impedance matching.

Models may

Be

chosen for

BroadBand

RF

performance of for optimized narrow

Bands

•

Specifications:

Parameter

Frequency Range (min)

Flatness vs. Frequency (max)

Typical TSS

Internal Attenuation

Sensitivity (min)

Specification

Units

GHz

±dB

dBm

dB

mV/mW

0.01 – 18

0.5/octave

-45

7

500

Notes:

Maximum input power: +23 dBm

Sensitivity is measured into an open circuit load

(>10k ohm).

The temperature performance of the zero

Bias

schottky is poor when operating at low input power

levels.

OPTIONAL HIGH-REL SCREENING

(Ref MIL-PRF-38534):

StaBilization

Bake

per MIL-STD-883, Method 1008

Temperature Cycle per MIL-STD-883, Method 1010

Constant Acceleration per MIL-STD-883,

Method 2001

Burn-in

per MIL-STD-883, Method 1015

Leak Test per MIL-STD-883, Method 1014

External Visual per MIL-STD-883, Method 2009

SCREENING:

Internal Visual per MIL-STD-883, Method 2017

Temperature Cycle: -65°C to +100°C, 10 cycles

SIGNAL & CONTROL SOLUTIONS

Revision Date: 10/6/2013

40 Industrial Way East, Eatontown , NJ 07724 [USA]

Phone: (732) 460-0212, Fax: (732) 460-0214

www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
