PE15F-L2: DescriptionSingle Phase EMI Filter, 250V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size621KB，2 Pages; ManufacturerPower Dynamics, Inc.; Websitehttp://www.powerdynamics.com/

Download Datasheet Parametric Compare View All

PE15F-L2 Overview

Single Phase EMI Filter, 250V, 50/60HzHz,

PE15F-L2 Parametric

Parameter Name	Attribute value
Maker	Power Dynamics, Inc.
Reach Compliance Code	compliant
Certification	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER
high	37 mm
high potential	1800 V
Minimum insulation resistance	100 MΩ
Maximum leakage current	0.8 mA
length	89 mm
Manufacturer's serial number	PE15F-L2
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
physical size	L89XB51XH37 (mm)
Rated current	15 A
Rated voltage	250 V

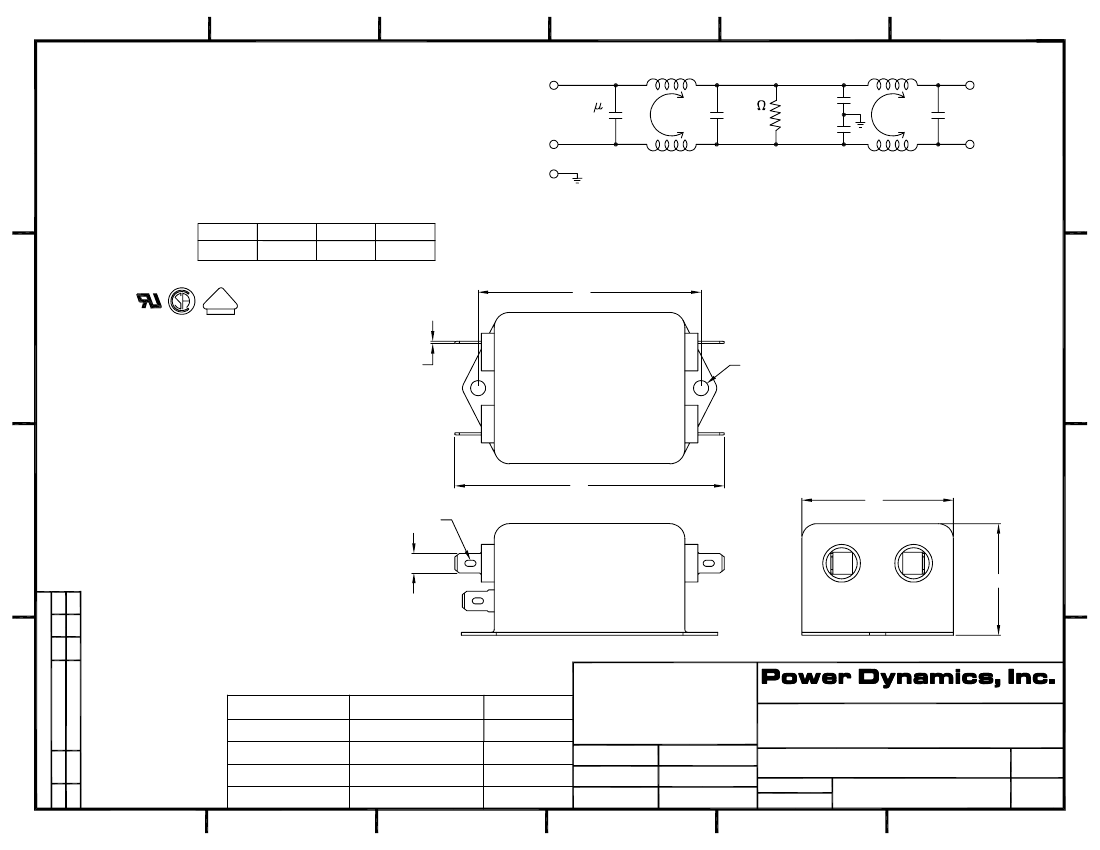

Preview

Download Datasheet

View All

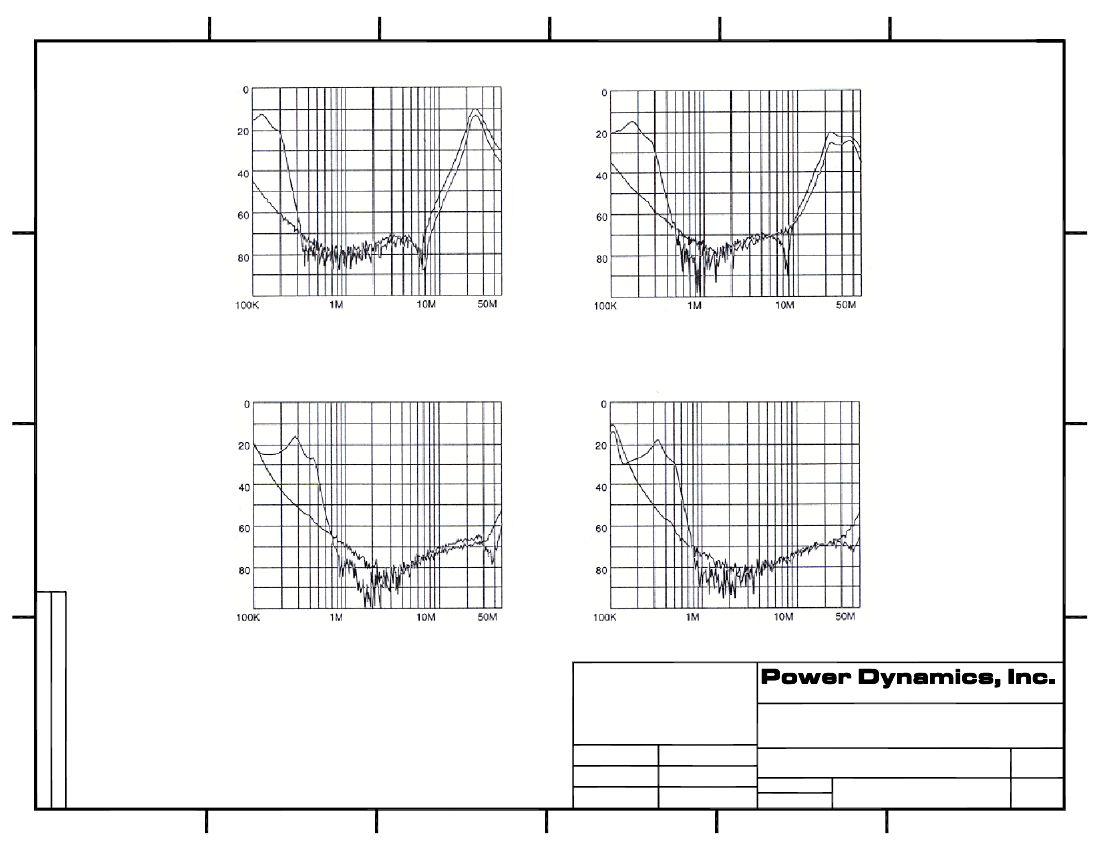

2-

3

(0

3

2-

3

(6

2-

,

(()

3

2-

3

!"#

$%& ' ($

)*+!,('(-.

/!(0122304 ($(-.

!"&%%5

-)%*%%2#

%& ($

%%5 1(($

&% ! ((6%"2204 ($

!! !

(

;

: #

(0230 (0 230 (0 230 (0(230

%"2#

)2)7 8%918

$

" #

$

"

% #

& #

!

PE15F-L2 Related Products

	PE15F-L2	PE05F-L2	PE20F-L2	PE10F-L2
Description	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,	Single Phase EMI Filter, 250V, 50/60HzHz,
Reach Compliance Code	compliant	compliant	compliant	compliant
Certification	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE	UL; CSA; VDE
filter type	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	37 mm	37 mm	37 mm	37 mm
high potential	1800 V	1800 V	1800 V	1800 V
Minimum insulation resistance	100 MΩ	100 MΩ	100 MΩ	100 MΩ
Maximum leakage current	0.8 mA	0.8 mA	0.8 mA	0.8 mA
length	89 mm	89 mm	89 mm	89 mm
Manufacturer's serial number	PE15F-L2	PE05F-L2	PE20F-L2	PE10F-L2
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
physical size	L89XB51XH37 (mm)	L89XB51XH37 (mm)	L89XB51XH37 (mm)	L89XB51XH37 (mm)
Rated current	15 A	5 A	20 A	10 A
Rated voltage	250 V	250 V	250 V	250 V
Maker	Power Dynamics, Inc.	-	Power Dynamics, Inc.	Power Dynamics, Inc.
