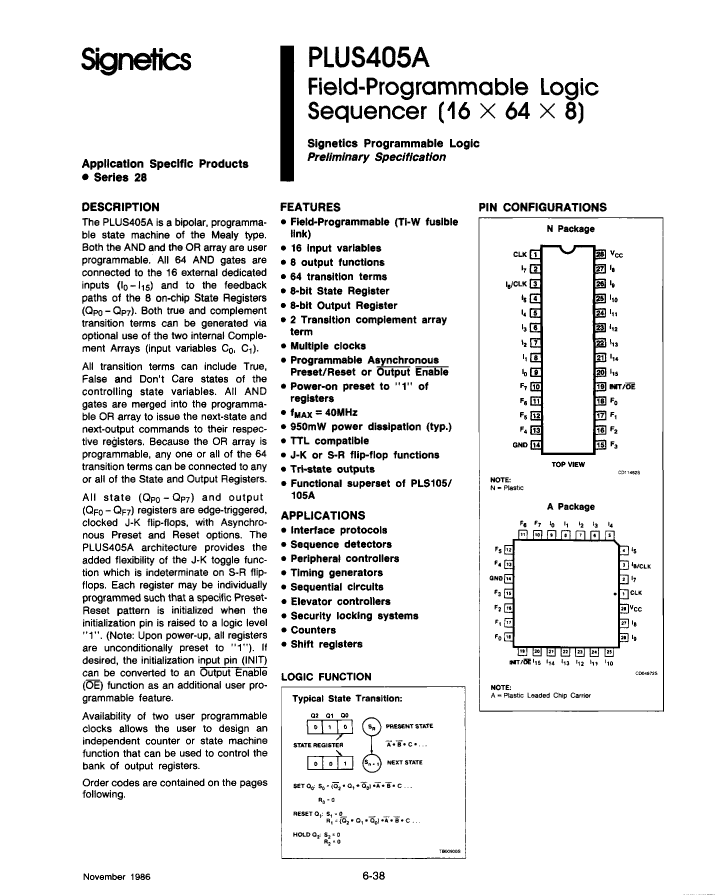

PLUS405AA datasheet, PDF - EEWORLD Datasheet

PLUS405AA: DescriptionIC FPGA, PQCC28, Field Programmable Gate Array; CategoryProgrammable logic devices Programmable logic; File Size430KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

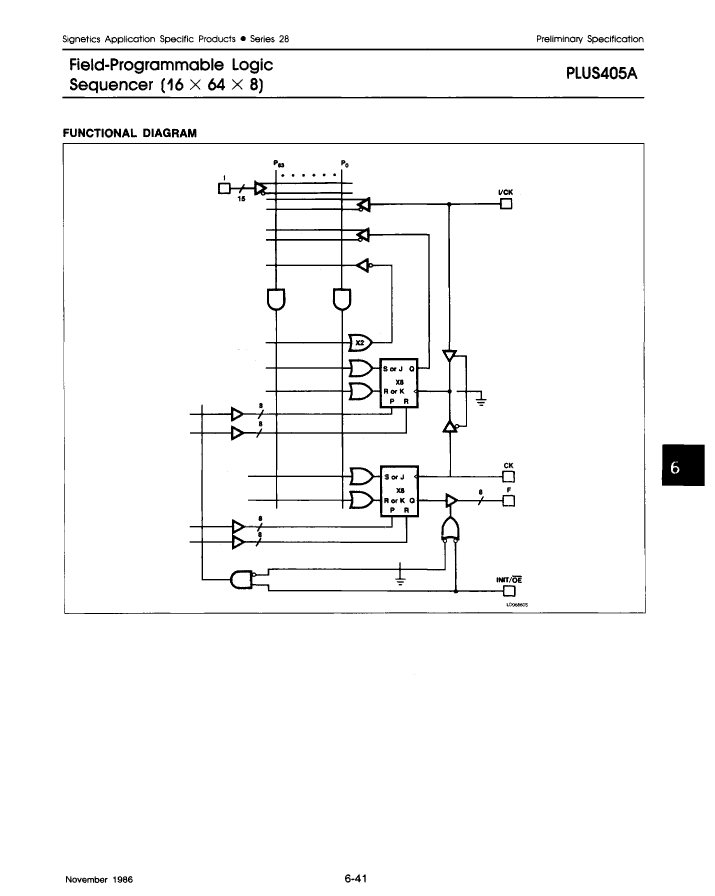

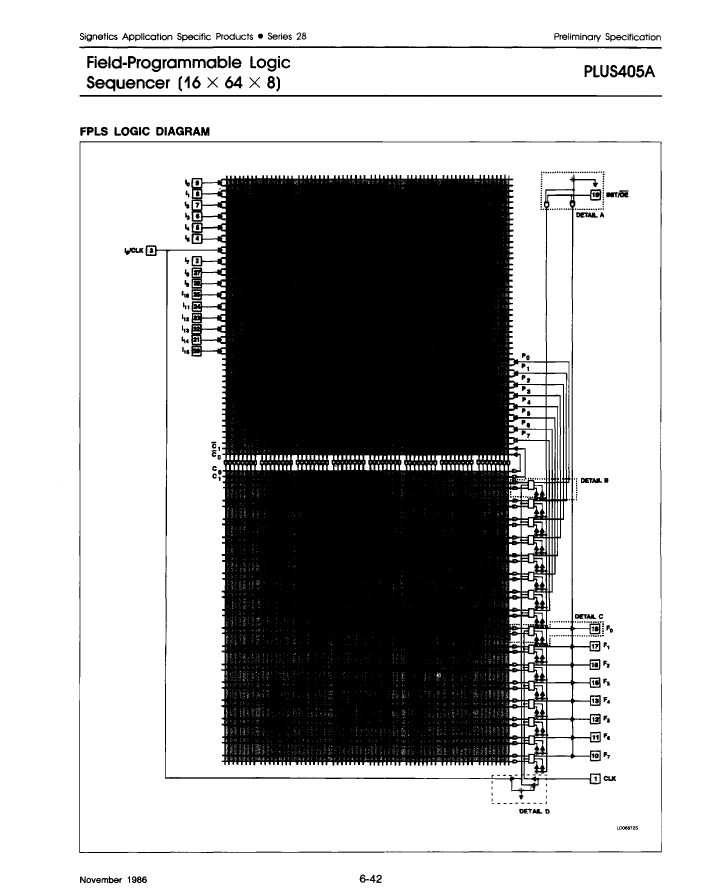

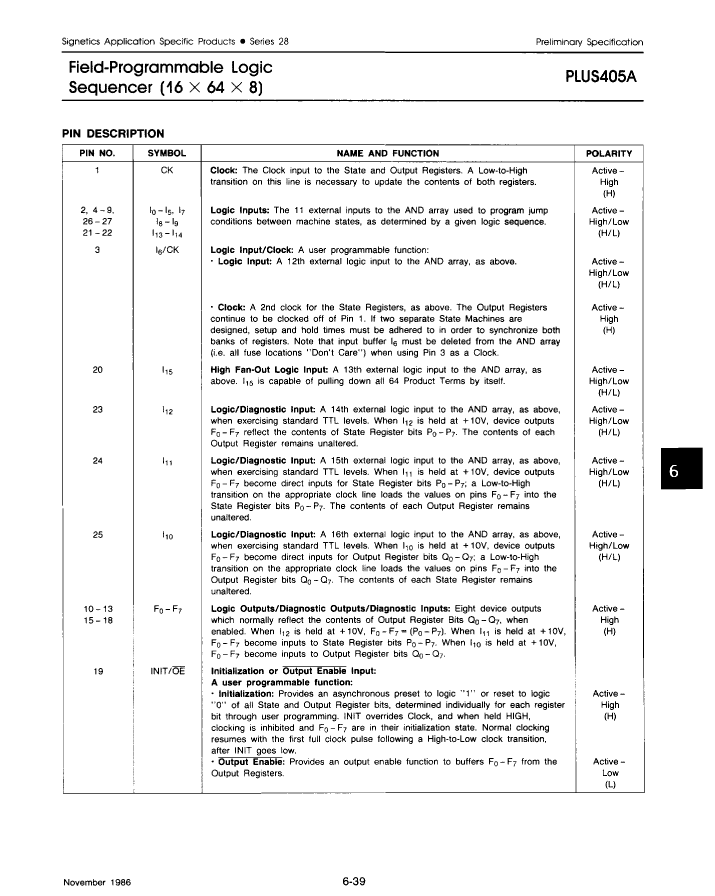

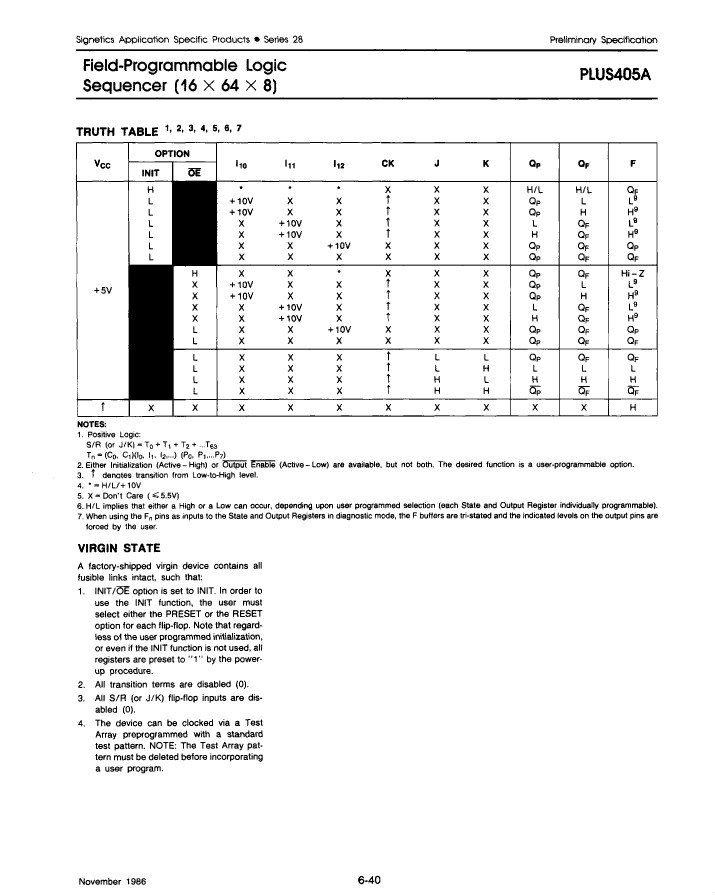

PLUS405AA Overview

IC FPGA, PQCC28, Field Programmable Gate Array

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	QCCJ, LDCC28,.5SQ
Reach Compliance Code	unknown
Architecture	PLS-TYPE
maximum clock frequency	40 MHz
JESD-30 code	S-PQCC-J28
JESD-609 code	e0
Number of entries	16
Output times	8
Number of product terms	64
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC28,.5SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

	PLUS405AA	PLUS405AN
Description	IC FPGA, PQCC28, Field Programmable Gate Array	IC FPGA, PDIP28, Field Programmable Gate Array
Is it Rohs certified?	incompatible	incompatible
Maker	NXP	NXP
package instruction	QCCJ, LDCC28,.5SQ	DIP, DIP28,.6
Reach Compliance Code	unknown	unknown
Architecture	PLS-TYPE	PLS-TYPE
maximum clock frequency	40 MHz	40 MHz
JESD-30 code	S-PQCC-J28	R-PDIP-T28
JESD-609 code	e0	e0
Number of entries	16	16
Output times	8	8
Number of product terms	64	64
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP
Encapsulate equivalent code	LDCC28,.5SQ	DIP28,.6
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
