DE-09PDZCD1 datasheet, PDF - EEWORLD Datasheet

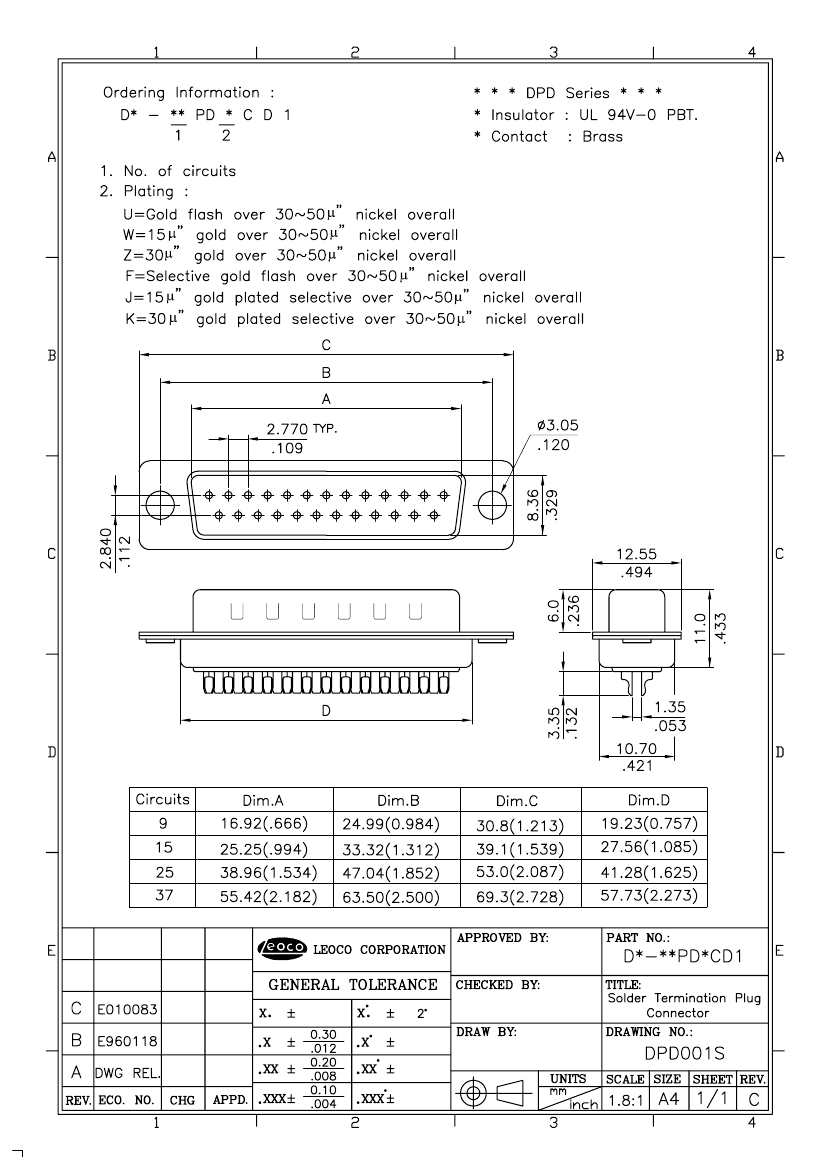

DE-09PDZCD1: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .115-.125, Receptacle; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

DE-09PDZCD1 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Hole .115-.125, Receptacle

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
body width	0.494 inch
subject depth	0.197 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DPD
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .115-.125
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.132 inch
Termination type	SOLDER LUG
Total number of contacts	9
