A120650R-20D0

Description
RF/MICROWAVE FIXED ATTENUATOR, SURFACE MOUNT PACKAGE-3
CategoryWireless rf/communication    Radio frequency and microwave
File Size291KB,2 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Download Datasheet Parametric View All

A120650R-20D0 Overview

RF/MICROWAVE FIXED ATTENUATOR, SURFACE MOUNT PACKAGE-3

A120650R-20D0 Parametric

Parameter NameAttribute value
Objectid1654742122
Reach Compliance Codeunknown
YTEOL0
Nominal attenuation20 dB
Characteristic impedance50 Ω
structureCOMPONENT
Maximum input power (CW)20.97 dBm
RF/Microwave Device TypesFIXED ATTENUATOR
Thin Film Surface Mount
Attenuators

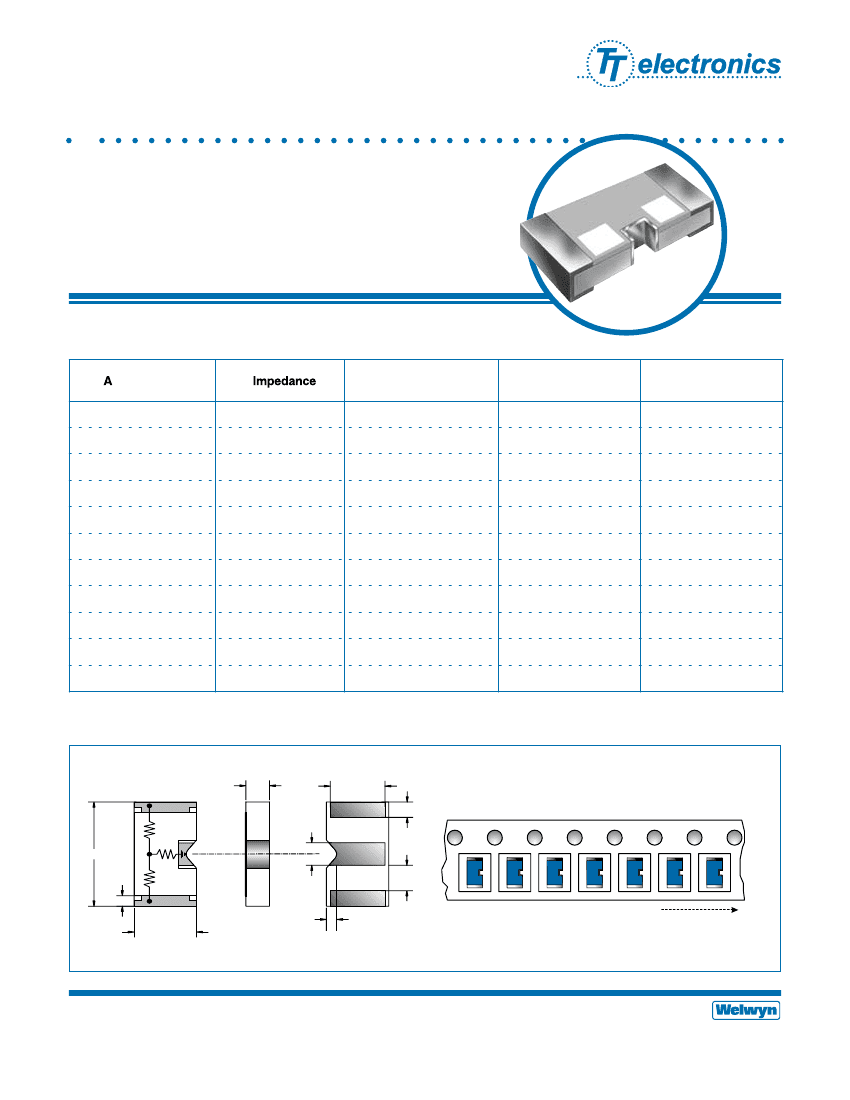

PFC A1206 Attenuator Series
Excellent high frequency characteristics
Available in 50Ω and 75Ω impedances
Ultra-reliable TaNFilm
®
element
Absolute TCR ±100ppm/°C
Welwyn Components
Electrical Data
ttenuation
1dB
2dB
3dB
4dB
5dB
6dB
7dB
8dB
9dB
10dB
20dB
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
50
Ω,
75
Tolerance

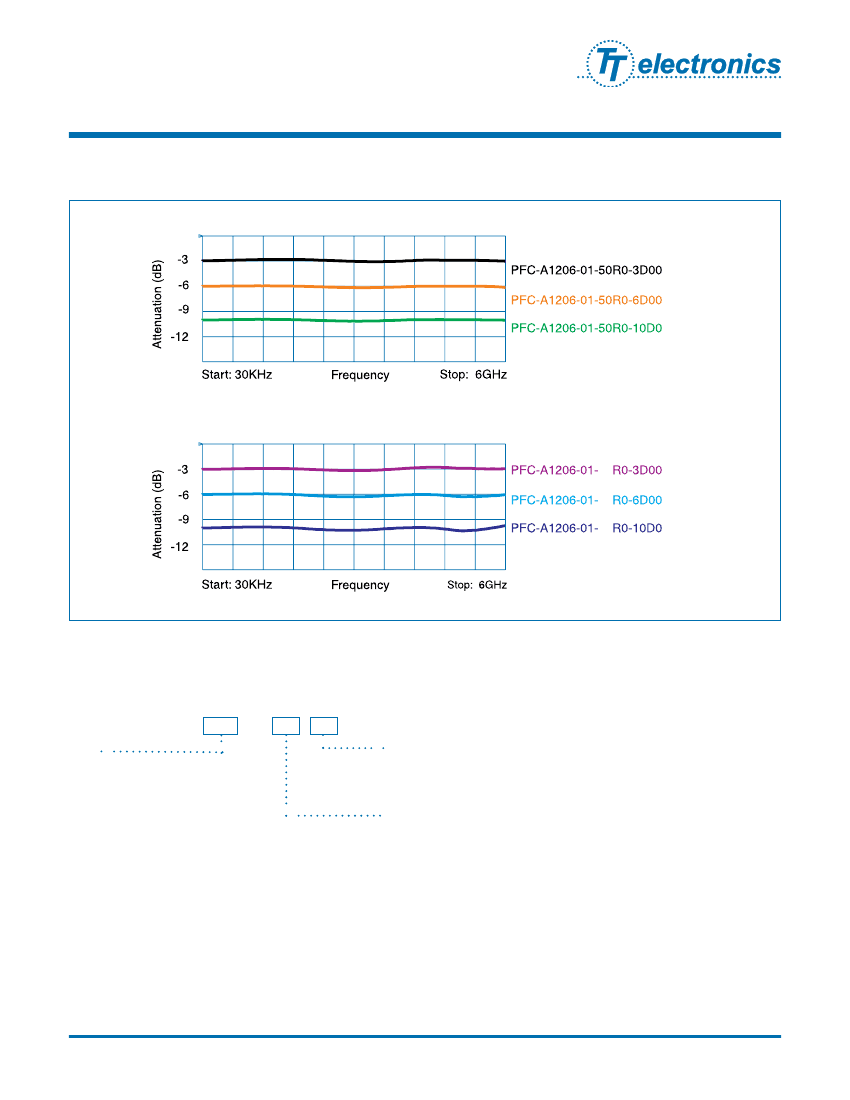

(typical from 0 to 6GHz)
±0.3dB
±0.3dB
±0.3dB
±0.5dB
±0.5dB
±1.0dB
±1.0dB
±1.0dB
±1.0dB
±1.0dB
±2.0dB
TCR
(ppm/°C)
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
±100
Power
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
0.125W
Outline and Packaging Data
TOP
0.61 ± 0.1
SIDE
BO TT OM
1.47 ± 0.13
0.38 ± 0.13
R1
PACKAGING ON 8mm TAPE
0.69 ± 0.08
3.20 ± 0.15
R1
R2
0.76
0.38 ±.013
1.60 ± 0.13
NOTE: Equivalent ‘T’ network schematic
0.25 ± 0.1
USER DIRECTION OF FEED
General Note
Welwyn Components reserves the right to make changes in product specification without notice or liability.
All information is subject to Welwyn’s own data and is considered accurate at time of going to print.
© Welwyn Components Limited
Bedlington, Northumberland NE22 7AA, UK
A subsidiary of
TT electronics plc
PFC Attenuator Series Issue June 2006
Telephone: +44 (0) 1670 822181 • Facsimile: +44 (0) 1670 829465 • Email: info@welwyn-tt.com • Website: www.welwyn-tt.com
