HY62V8100ALR1-15 datasheet, PDF

Datasheet> All Categories > storage> storage> HY62V8100ALR1-15

HY62V8100ALR1-15: DescriptionStandard SRAM, 128KX8, 85ns, CMOS, PDSO32, 8 X 20 MM, REVERSE, TSOP1-32; Categorystorage storage; File Size196KB，13 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HY62V8100ALR1-15 Overview

Standard SRAM, 128KX8, 85ns, CMOS, PDSO32, 8 X 20 MM, REVERSE, TSOP1-32

HY62V8100ALR1-15 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SK Hynix
Parts packaging code	TSOP1
package instruction	TSOP1-R, TSSOP32,.8,20
Contacts	32
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum access time	85 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	18.4 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSSOP32,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
reverse pinout	YES
Maximum seat height	1.2 mm
Maximum standby current	0.000005 A
Minimum standby current	2 V
Maximum slew rate	0.07 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

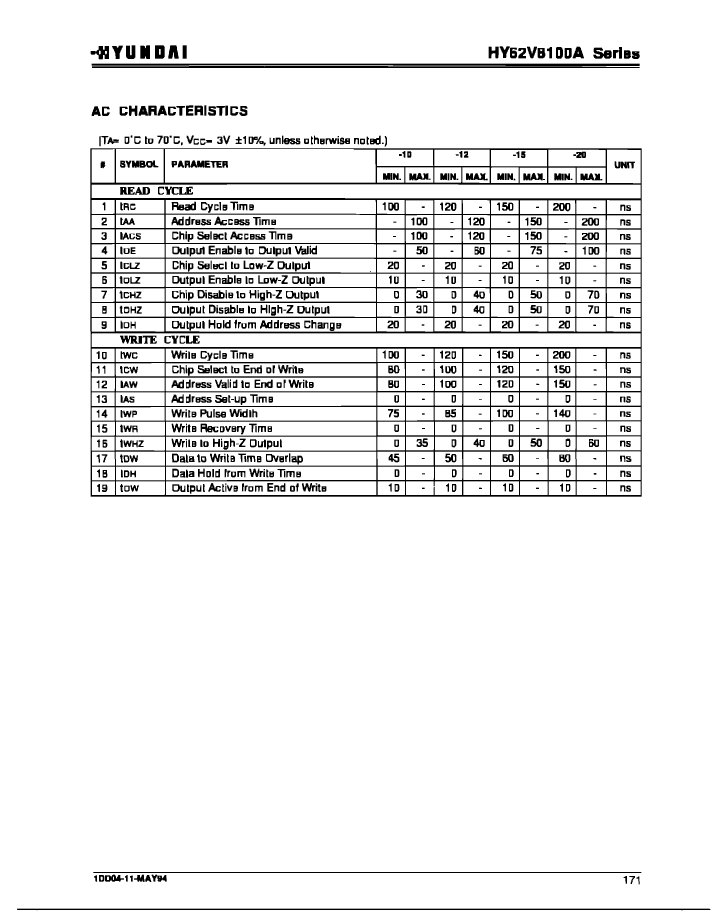

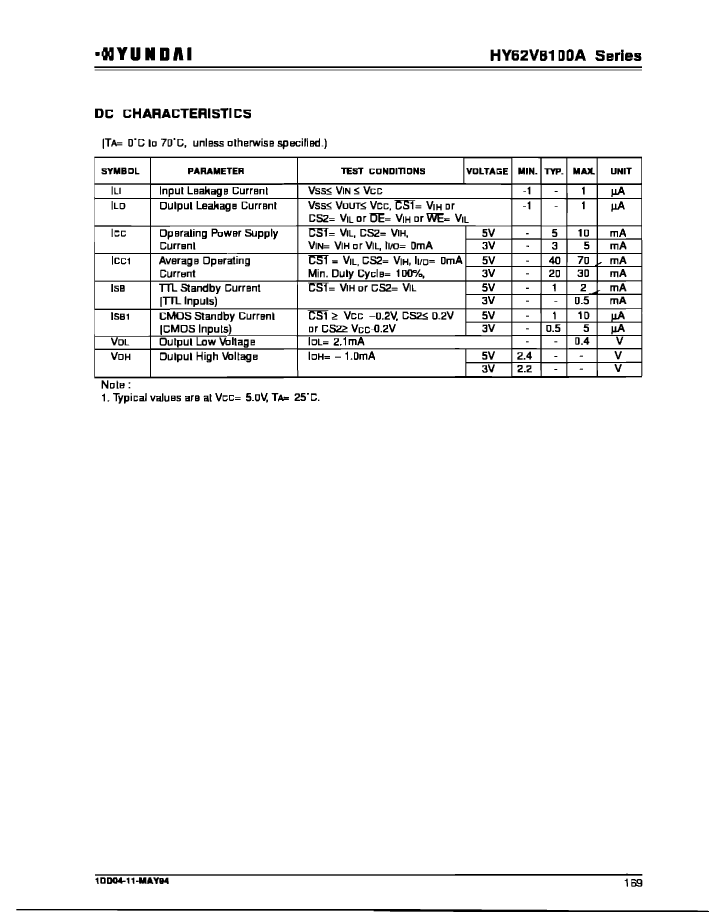

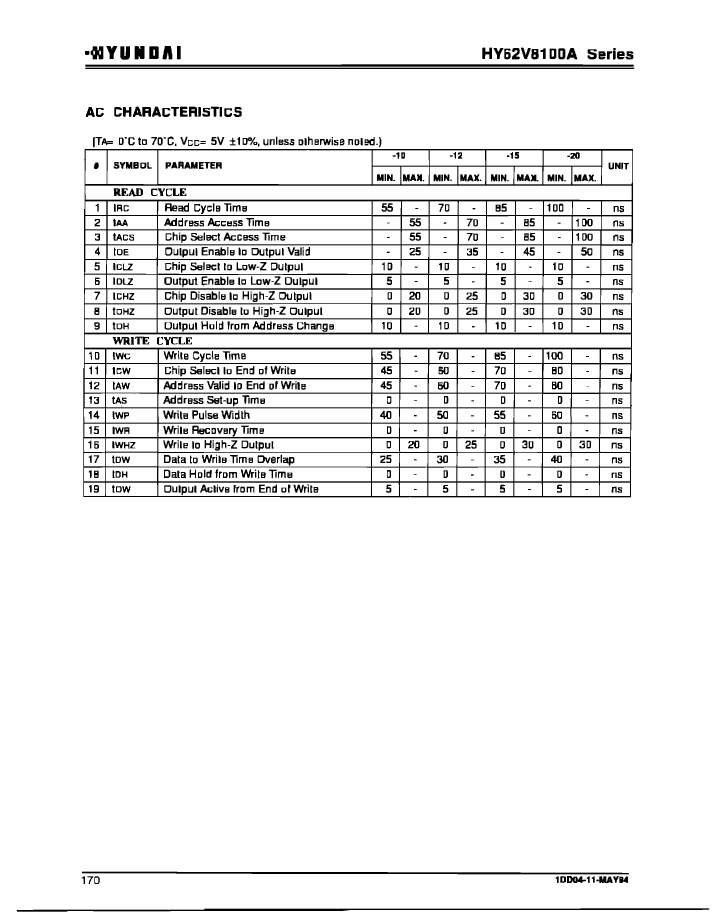

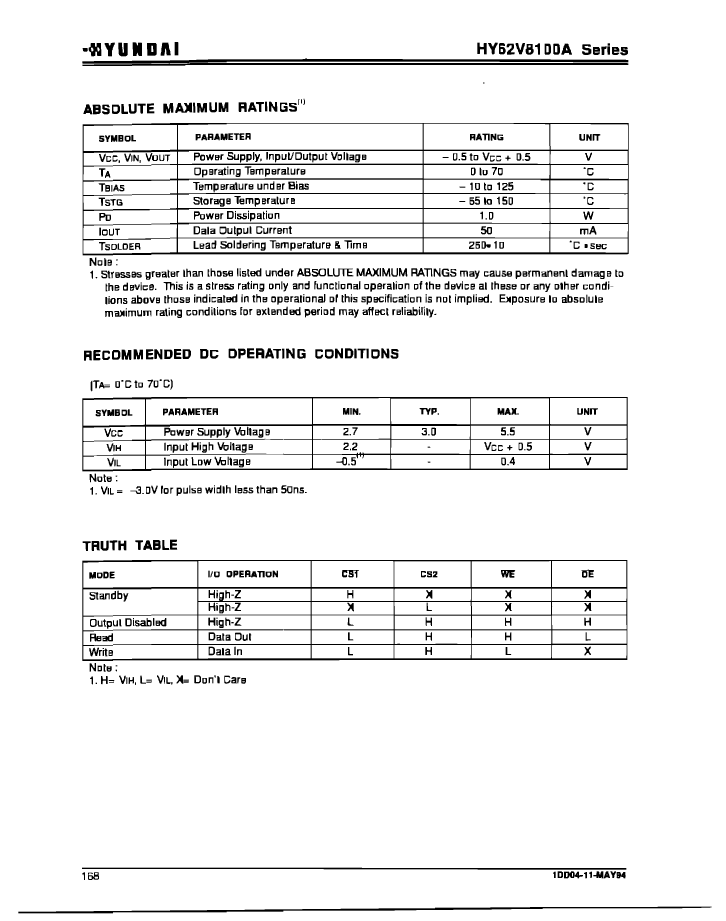

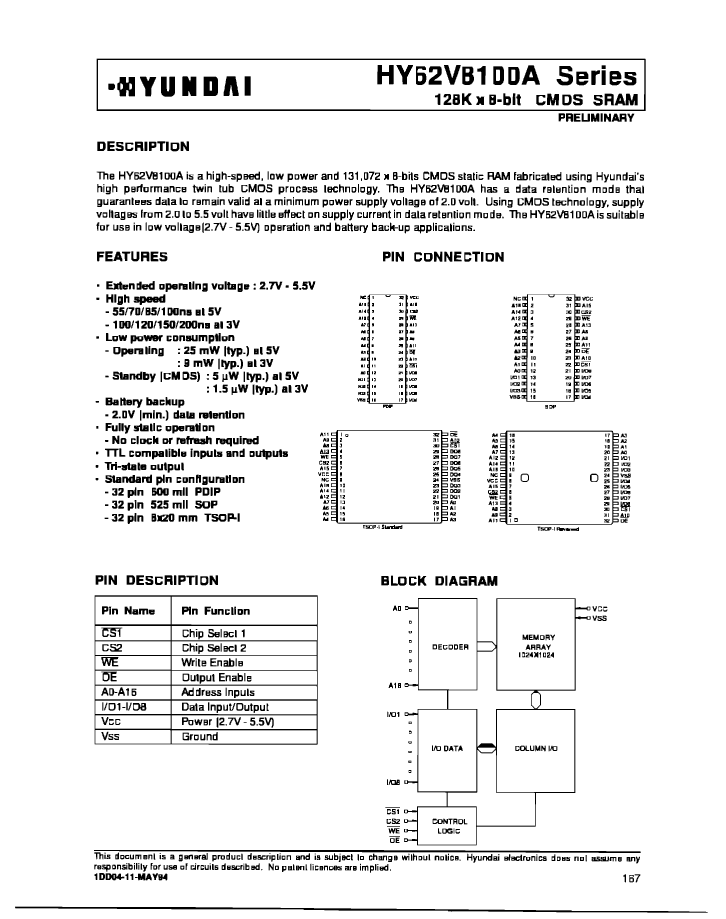

Preview

Download Datasheet

View All

HY62V8100ALR1-15 Related Products

	HY62V8100ALR1-15	HY62V8100ALP-20	HY62V8100ALG-15	HY62V8100ALG-20	HY62V8100ALP-15	HY62V8100ALR1-20	HY62V8100ALT1-15	HY62V8100ALT1-20
Description	Standard SRAM, 128KX8, 85ns, CMOS, PDSO32, 8 X 20 MM, REVERSE, TSOP1-32	Standard SRAM, 128KX8, 100ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Standard SRAM, 128KX8, 85ns, CMOS, PDSO32, 0.525 INCH, SOP-32	Standard SRAM, 128KX8, 100ns, CMOS, PDSO32, 0.525 INCH, SOP-32	Standard SRAM, 128KX8, 85ns, CMOS, PDIP32, 0.600 INCH, PLASTIC, DIP-32	Standard SRAM, 128KX8, 100ns, CMOS, PDSO32, 8 X 20 MM, REVERSE, TSOP1-32	Standard SRAM, 128KX8, 85ns, CMOS, PDSO32, 8 X 20 MM, TSOP1-32	Standard SRAM, 128KX8, 100ns, CMOS, PDSO32, 8 X 20 MM, TSOP1-32
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	TSOP1	DIP	SOIC	SOIC	DIP	TSOP1	TSOP1	TSOP1
package instruction	TSOP1-R, TSSOP32,.8,20	0.600 INCH, PLASTIC, DIP-32	SOP, SOP32,.56	SOP, SOP32,.56	DIP, DIP32,.6	TSOP1-R, TSSOP32,.8,20	TSOP1, TSSOP32,.8,20	TSOP1, TSSOP32,.8,20
Contacts	32	32	32	32	32	32	32	32
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	85 ns	100 ns	85 ns	100 ns	85 ns	100 ns	85 ns	100 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32	R-PDIP-T32	R-PDSO-G32	R-PDSO-G32	R-PDSO-G32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	18.4 mm	42.164 mm	20.4978 mm	20.4978 mm	42.164 mm	18.4 mm	18.4 mm	18.4 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	DIP	SOP	SOP	DIP	TSOP1-R	TSOP1	TSOP1
Encapsulate equivalent code	TSSOP32,.8,20	DIP32,.6	SOP32,.56	SOP32,.56	DIP32,.6	TSSOP32,.8,20	TSSOP32,.8,20	TSSOP32,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	4.699 mm	3.2 mm	3.2 mm	4.699 mm	1.2 mm	1.2 mm	1.2 mm
Maximum standby current	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A	0.000005 A
Minimum standby current	2 V	2 V	2 V	2 V	2 V	2 V	2 V	2 V
Maximum slew rate	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA	0.07 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING
Terminal pitch	0.5 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8 mm	15.24 mm	11.2014 mm	11.2014 mm	15.24 mm	8 mm	8 mm	8 mm
