PDU-13F-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PDU-13F-5

PDU-13F-5: DescriptionActive Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14; Categorylogic logic; File Size100KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

PDU-13F-5 Overview

Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14

PDU-13F-5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP-14
Contacts	14
Reach Compliance Code	compliant
Other features	WITH EBAR; FAN OUT OF 10 TTL LOADS
series	F
Input frequency maximum value (fmax)	60.9756 MHz
JESD-30 code	R-XDIP-T14
JESD-609 code	e3
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	45 mA
programmable delay line	YES
Prop。Delay @ Nom-Sup	39.5 ns
Certification status	Not Qualified
Maximum seat height	7.747 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	41 ns
width	7.62 mm

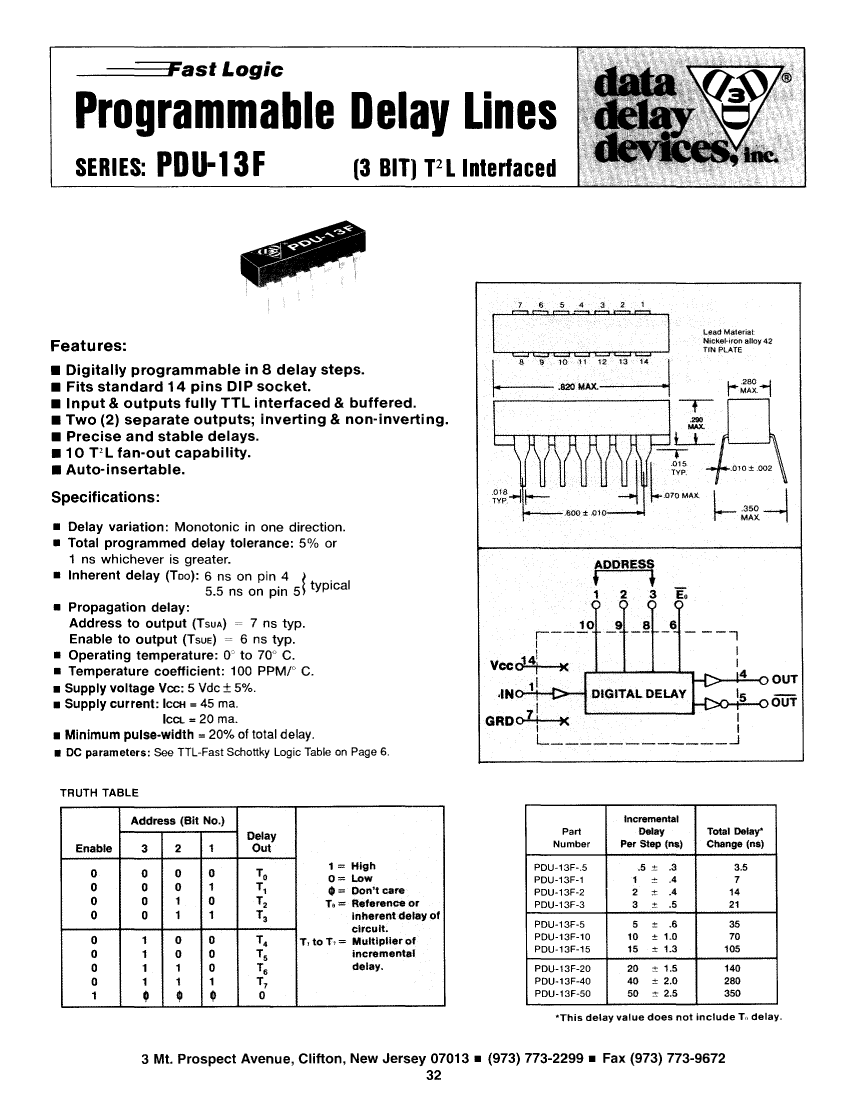

Preview

Download Datasheet

View All

PDU-13F-5 Related Products

	PDU-13F-5	PDU-13F-15	PDU-13F-50	PDU-13F-.5	PDU-13F-10	PDU-13F-1	PDU-13F-3	PDU-13F-2	PDU-13F-20	PDU-13F-40
Description	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14	Active Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, DIP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices	Data Delay Devices
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP-14	DIP, DIP14,.3	DIP-14	DIP-14	DIP-14	DIP-14	DIP-14	DIP, DIP14,.3	DIP-14	DIP-14
Contacts	14	14	14	14	14	14	14	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS	WITH EBAR; FAN OUT OF 10 TTL LOADS
series	F	F	F	F	F	F	F	F	F	F
Input frequency maximum value (fmax)	60.9756 MHz	22.5225 MHz	7.02247 MHz	263.158 MHz	32.8947 MHz	192.308 MHz	92.5926 MHz	125 MHz	17.1233 MHz	8.74126 MHz
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Logic integrated circuit type	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE	ACTIVE DELAY LINE
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of taps/steps	7	7	7	7	7	7	7	7	7	7
Number of terminals	14	14	14	14	14	14	14	14	14	14
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA	45 mA
programmable delay line	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Prop。Delay @ Nom-Sup	39.5 ns	109.5 ns	354.5 ns	8 ns	74.5 ns	11.5 ns	25.5 ns	18.5 ns	144.5 ns	284.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm	7.747 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	TIN	Tin (Sn)	Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Total delay nominal (td)	41 ns	111 ns	356 ns	9.5 ns	76 ns	13 ns	27 ns	20 ns	146 ns	286 ns
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
