PPG-33F-1ME5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PPG-33F-1ME5

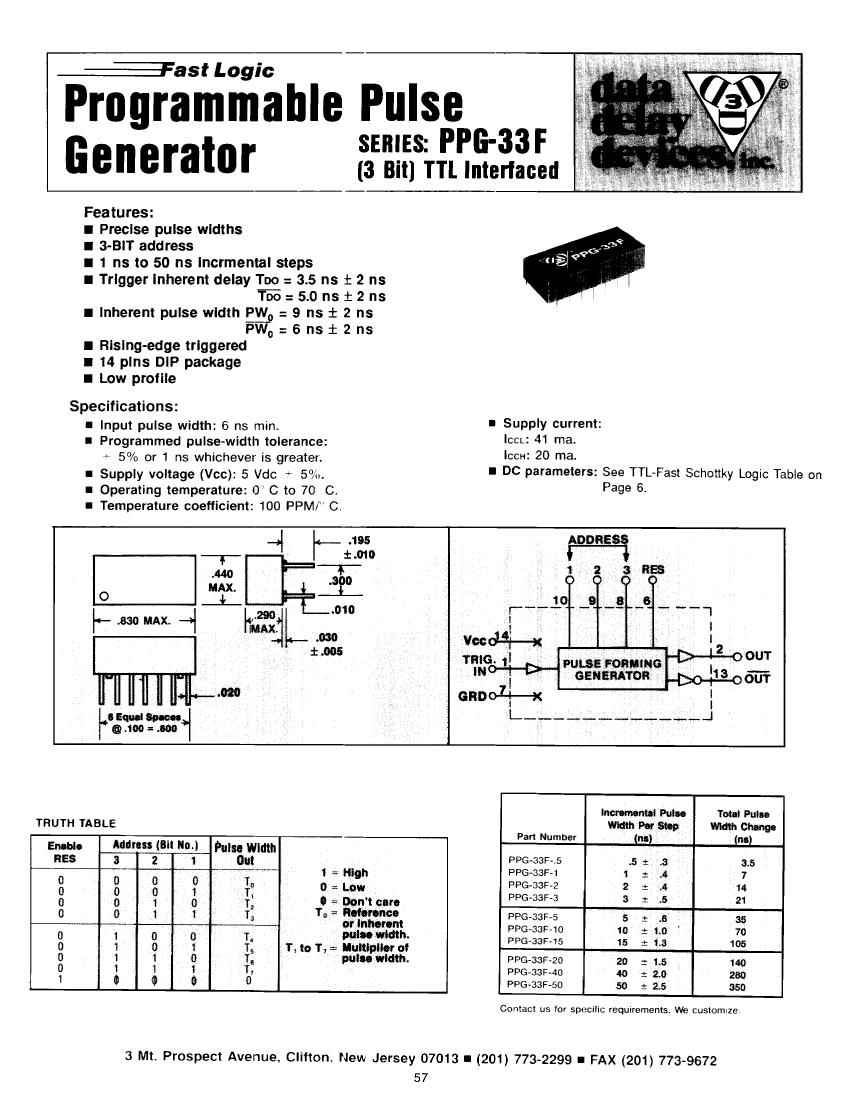

PPG-33F-1ME5: DescriptionPulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14; Categorylogic logic; File Size108KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

PPG-33F-1ME5 Overview

Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14

PPG-33F-1ME5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Data Delay Devices
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	compliant
Other features	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK
series	F
Input frequency maximum value (fmax)	27.7778 MHz
JESD-30 code	R-XDIP-T14
Logic integrated circuit type	PULSE GENERATOR DELAY LINE
Number of functions	1
Number of taps/steps	7
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum supply current (ICC)	41 mA
programmable delay line	YES
Certification status	Not Qualified
Maximum seat height	8.255 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

PPG-33F-1ME5 Related Products

	PPG-33F-1ME5	PPG-33F-20ME5	PPG-33F-15ME5	PPG-33F-2ME5	PPG-33F-3ME5	PPG-33F-10ME5	195Q2	PPG-33F-5ME5	PPG-33F-.5ME5	PPG-33F-40ME5
Description	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14	Pulse Generator Delay Line, Programmable, 1-Func, 7-Tap, Complementary Output, TTL, LOW PROFILE, DIP-14
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	Data Delay Devices	Data Delay Devices	Data Delay Devices	-	-	Data Delay Devices	-	Data Delay Devices	Data Delay Devices	Data Delay Devices
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	-	DIP	DIP	DIP
package instruction	DIP,	DIP,	LOW PROFILE, DIP-14	DIP,	DIP,	DIP,	-	LOW PROFILE, DIP-14	LOW PROFILE, DIP-14	LOW PROFILE, DIP-14
Contacts	14	14	14	14	14	14	-	14	14	14
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	-	compliant	compliant	compliant
Other features	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	-	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK	TRIGGER INHERENT DELAY = 3.5+-2NS; MEETS MIL-D-23859; IN-HOUSE BURN-IN AND THERMAL SHOCK
series	F	F	F	F	F	F	-	F	F	F
Input frequency maximum value (fmax)	27.7778 MHz	5.91716 MHz	7.46269 MHz	23.2558 MHz	20 MHz	10.101 MHz	-	15.625 MHz	30.7692 MHz	3.23625 MHz
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	-	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14
Logic integrated circuit type	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	-	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE	PULSE GENERATOR DELAY LINE
Number of functions	1	1	1	1	1	1	-	1	1	1
Number of taps/steps	7	7	7	7	7	7	-	7	7	7
Number of terminals	14	14	14	14	14	14	-	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY	-	COMPLEMENTARY	COMPLEMENTARY	COMPLEMENTARY
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	-	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum supply current (ICC)	41 mA	41 mA	41 mA	41 mA	41 mA	41 mA	-	41 mA	41 mA	41 mA
programmable delay line	YES	YES	YES	YES	YES	YES	-	YES	YES	YES
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	8.255 mm	-	8.255 mm	8.255 mm	8.255 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	-	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	-	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm
