BAS516
Features
•
Lead Free Finish/Rohs Compliant ("P"Suffix designates
RoHS Compliant. See ordering information)
Ultra-Small Surface Mount Package
High
Switching Speed
For General Purpose Switching Applications
Marking : 61
Halogen
free available upon request by adding suffix "-HF"
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Switching Diode
•
•
•
•
SOD-523
A
B
Maximum Ratings
Operating Temperature: -55 C to +150 C
Storage Temperature: -55 C to +150 C
C
E
G
Electrical Characteristics @ 25 C Unless Otherwise Specified
DC Reverse Voltage
Forward Current
Peak Forward Surge
Current
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current At
Rated DC Blocking
Voltage
Typical Diode
Capacitance
V
R
I
F
I
FSM
75V
250mA
500mA
715mV
815mV
1000mV
1250mV
0.03
A
1 A
C
D
1pF
I
F
= 1mA
I
F
= 10mA;
I
F
=
50mA
I
F
= 150mA
V
R
=25Volts
V
R
=75Volts
Measured at
1.0MHz, V
R
=0V
I
F
=I
R
=10mAdc,
V
R
= 0V
R
L
=100
D
F
H
DIMENSIONS
INCHES
DIM
A
B
C
D
E
F
G
H
MIN
.059
.043
.030
.001
.010
.003
.020
.020
MAX
.067
.051
.033
.003
.014
.006
.028
.031
MIN
1.50
1.10
0.75
0.01
0.25
0.08
0.50
0.51
MM
MAX
1.70
1.30
0.85
0.07
0.35
0.15
0.70
0.77
NOTE
V
F
I
R
Suggested Solder Pad Layout
1.1mm
Junction temperature
Reverse Recovery
Time
Tj
T
rr
150
4nS
0.8mm
0.6mm
www.mccsemi.com
Revision:
C
1 of 3
2013/01/01
BAS516
MCC
Micro Commercial Components
TM

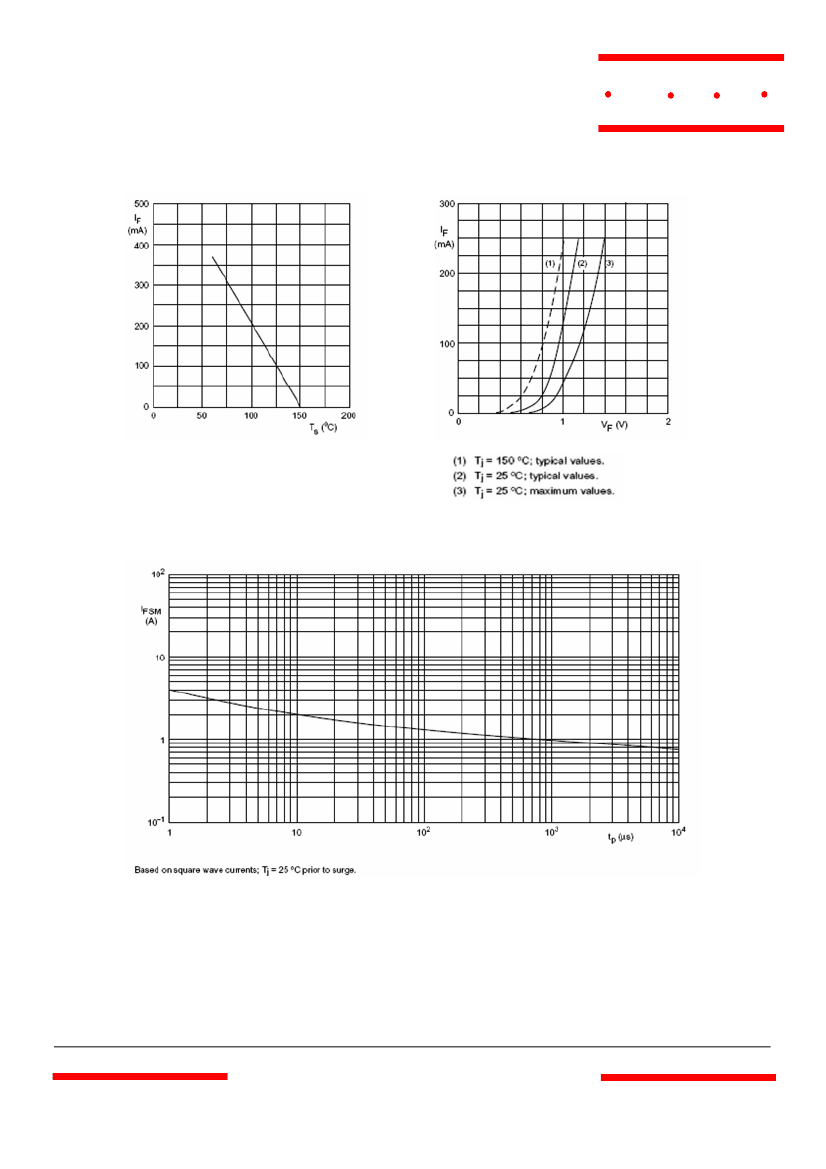

Fig.1
Maximum permissible continuous
forward current as a function of
soldering point temperature.
Fig2 Forward current as a function
of forward voltage
Fig.3 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
Revision:
C
www.mccsemi.com
2 of 3
2013/01/01
MCC
Micro Commercial Components
TM
Ordering Information :
Device
Part Number-TP
Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF
Packing
Tape&Reel:
8Kpcs/Reel
