Filter Coils < Pin Type:TFB Series>

Type: TFB-3LG

◆

Product Description

・26.7×9.7mm

Max.(L×W), 12.5mm Max. Height.

・Operating

frequency:10~200kHz

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements

◆

Feature

・Variable

shielded type with three individual coils combined.

・Two

capacitors can be internally mounted in one section.

・Ideally

used in VCR, Video Cameras as Audio LC filters(LPF, BPF, Delay Line and Equalizers).

・RoHS

Compliance.

◆

Dimensions (mm)

3.0

7.6

±0.2

4.5 4.0 4.5 4.0 4.5

φ 0.5±0.1

1.0±0.2

8.5

26.2±0.5

9.2±0.5

9.5 MAX.

±0.2

4.5

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

◆

Testing circuit

1st

Rin

③

②

S.G.

∼

①

④ ⑤

⑯

⑭ ⑬

2nd

⑥ ⑦

⑱

⑫ ⑪

⑩

3rd

⑧

Rout

E.V.M

Rin=Rg+R1=3.3kΩ

Rout=3.3kΩ

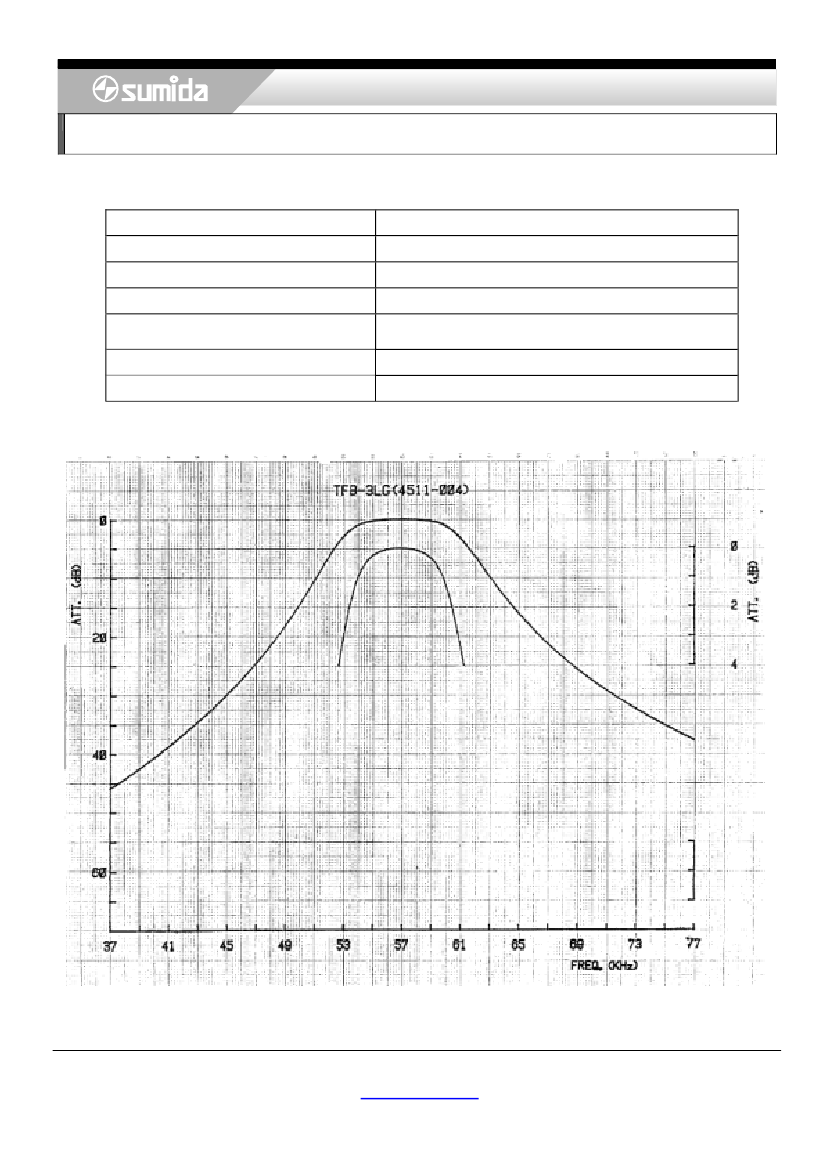

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
