MDR2100-14500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> MDR2100-14500

MDR2100-14500: DescriptionMechanical Tuned DRO, 14500MHz Min, 15500MHz Max; CategoryPassive components oscillator; File Size106KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

MDR2100-14500 Overview

Mechanical Tuned DRO, 14500MHz Min, 15500MHz Max

MDR2100-14500 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
frequency stability	5%
Maximum harmonic level	-15 dBc
Installation features	CHASSIS MOUNT
offset frequency	10 kHz
Maximum operating frequency	15500 MHz
Minimum operating frequency	14500 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
Oscillator type	MECHANICAL TUNED DRO OSCILLATOR
Output Power	10 dBm
phase noise	-92 dBc/Hz
physical size	41.9mm x 37.1mm x 39.4mm
Maximum slew rate	125 mA
Nominal supply voltage	15 V
surface mount	NO
tuning range	20 MHz

Preview

Download Datasheet

View All

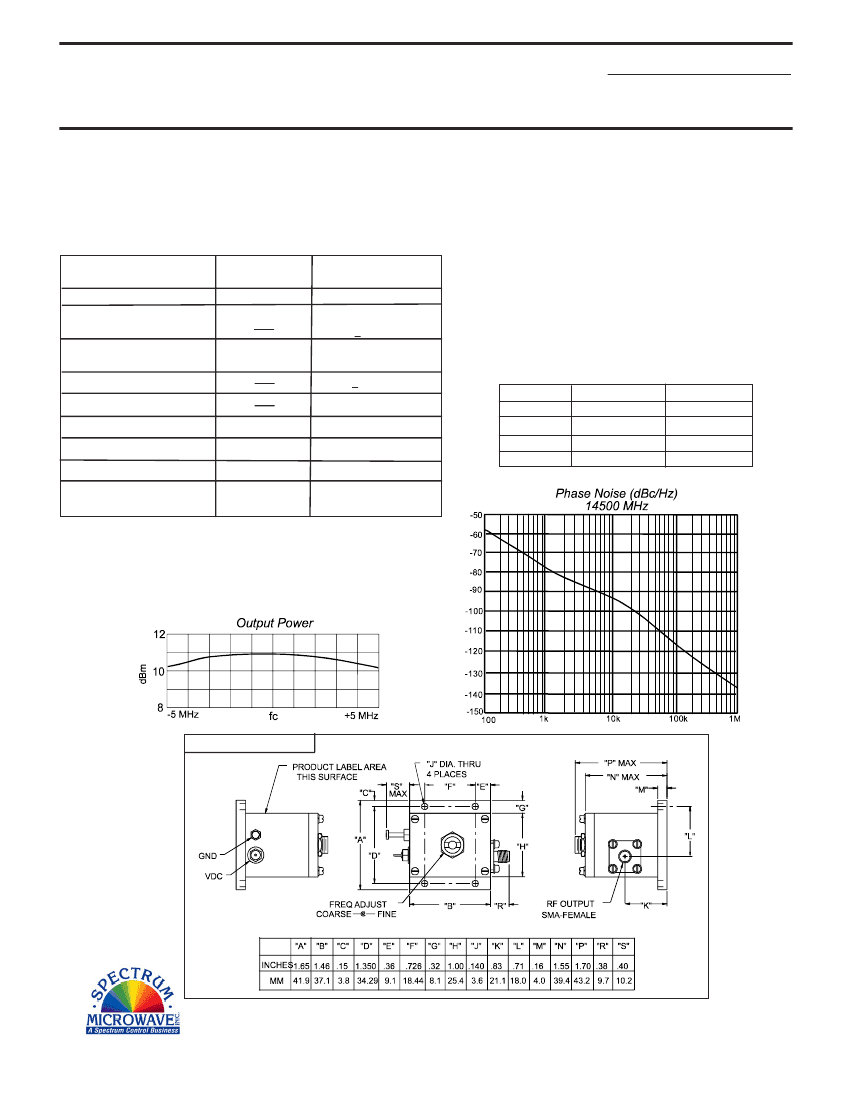

DIELECTRIC RESONATOR

OSCILLATOR

Features

MDR2100-14500

14500 - 15500 MHz

Rugged Construction for Extreme Environmental Conditions

High Frequency Stability

Free Running, Mechanically Tuned

Specifications

CHARACTERISTIC

Frequency

Mechanical Tuning

Bandwidth (MHz)

Frequency Stability

(ppm)/ ºC

Pulling, 12 dB RL (ppm)

Pushing (ppm/Volt)

Harmonics (dBc)

Spurious (dBc)

Output Power (dBm)

Power

Vdc

TYPICAL

Ta = +25 ºC

14500 - 15500 MHz

MIN/MAX

Ta = -20ºC to +65 ºC

14500 - 15500 MHz

+20 Min.

Absolute Maximum Ratings

Ambient Operating Temperature ............. -55ºC to +100 ºC

Storage Temperature .............................. -62ºC to +125 ºC

Case Temperature ............................................... +125 ºC

DC Voltage ....................................................... +24 Volts

5 Max.

+100 Max.

20 Max.

Typical Performance Data

Phase Noise

Offset

10 kHz

100 kHz

1 MHz

Typical

14500 MHz

-92

-117

-137

Typical

15500 MHz

-92

-117

-137

-20

-75

+11

+15

120

-15 Max.

-70 Max.

+10 Min.

+15

125 Max.

NOTES:

Care should always be taken to effectively ground the case of each unit.

1. Specifications labeled “min.” or “max.” are guaranteed in a 50 Ohm system over

the specified temperature range.

2. Averaged over the full temperature range.

3. Higher output power is available.

4. Alternate input voltage is available.

5. Package must be verified by Spectrum Microwave.

Mechanical Outline

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

10/23/08

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
