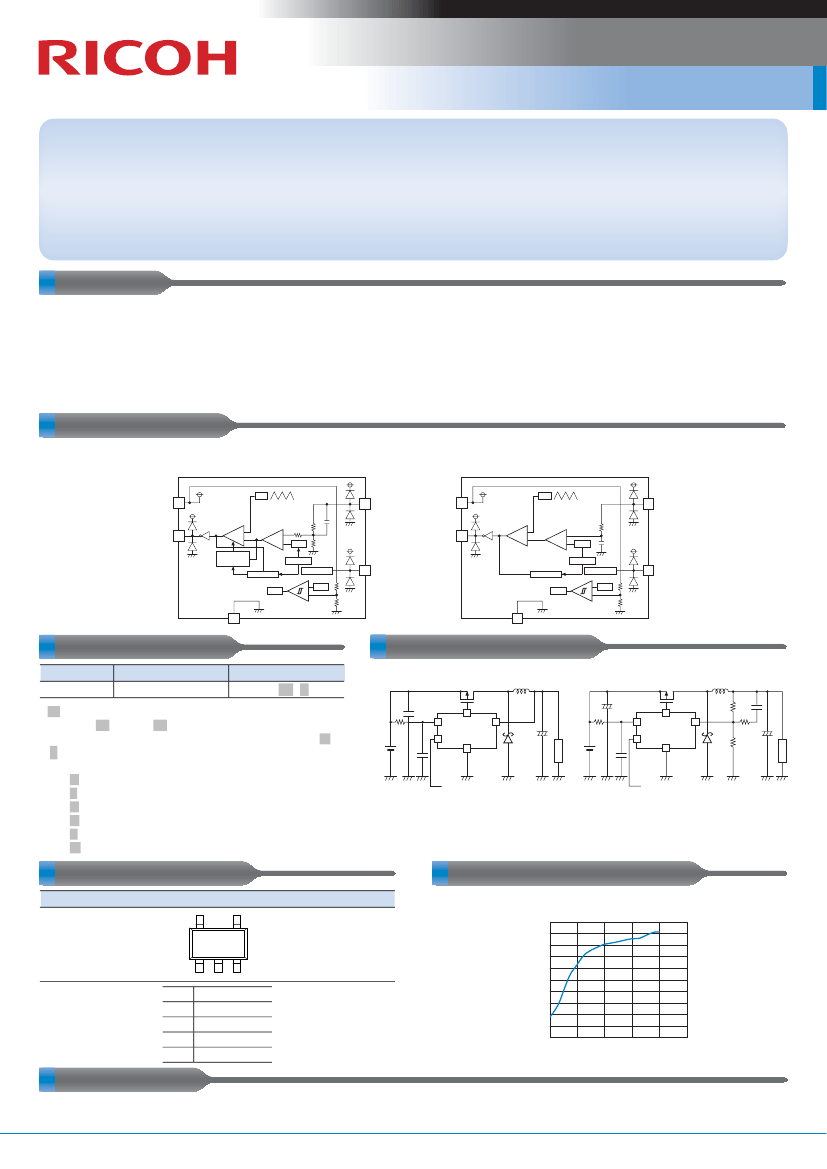

R1224N Series
PWM/VFM Step-down DC/DC Controller with Ext. Tr.
The R1224N Series are low supply current CMOS-based PWM/VFM step-down DC/DC controller with an external output transistor.
By simply using a power transistor, an inductor, a diode, and a capacitor as external components, a high-efficiency step-down DC/DC
converter can be easily configured. The PWM/VFM alternative circuit automatically switches to VFM control in the smaller output
current range and provides high efficiency even in the smaller output current range. The version with fixed PWM control and
adjustable output voltage with an external resistor is also available. The reset type protection circuit embedded into the device limits
output current by repeatedly triggering the soft start circuit when the oscillator maximum duty cycle continues for a predetermined
period of time. When the oscillator maximum duty cycle ends, normal operation is resumed automatically. R1224N also includes an
under-voltage lockout circuit (UVLO) that stops DC/DC operation and prevents malfunction when the supply voltage falls below the
UVLO detect voltage and reduces supply current.
FEATURES
•
Supply Current (I
DD1
)·················· Typ. 20μA (E, F, L, M Versions), Typ. 30μA (G Version),
•
•
•
Typ. 40μA (H Version) (V
IN
=V
OUT
=18.5V)
Standby Current (I
standby
) ············ Max. 0.5μA (In standby)
Input Voltage Range (V
IN
) ·········· 2.3V to 18.5V
Output Voltage Range (V
OUT
)····· 1.2V to 6.0V (internally fixed R1224Nxx2E/F/L)
Externally adjustable (Feedback voltage of 1.0V, R1224Nxx2G/H/M)
•
Output Voltage Accuracy ················
±
2%
•
Oscillator Frequency (f
osc
) ·············· 180kHz, 300kHz, 500kHz
•
Oscillator Maximum Duty Cycle (Maxduty) ··· Min. 100%
•
UVLO Detect Voltage (V
UVLO
) ········· Typ. 2.0V
•
Soft Start Time (t
start
) ······················· Typ. 10ms
•
Reset Protection Circuit ················· Delay time for protection
•
Typ. 15ms
Package ········································· SOT-23-5
BLOCK DIAGRAMS
R1224Nxx2E/F/L
(Internally fixed output voltage type)
OSC
5
3
R1224Nxx2G/H/M
(Externally adjustable output voltage type)
OSC
5
3
V
IN
V
OUT
V
IN
V
FB
EXT
4
-
+
PWM/VFM
CONTROL
-
Amp
+
EXT
Vref
Soft Start
4
-
+
-
Amp
+
Vref
Soft Start
Protection
UVLO
Chip Enable
+
-
Vref
1
CE
Protection
UVLO
Chip Enable
+
-
Vref
1
CE
2
2
GND
GND
SELECTION GUIDE
Package
SOT-23-5
Quantity per Reel
Part No.
3,000 pcs
R1224N.xx.2.
∗
-TR-F
TYPICAL APPLICATIONS
R1224Nxx2E/F/L
L
PMOS
+
- C1
PMOS
4
5
R1224Nxx2G/H/M
L
R4
C4
R3
+
-
C3
.xx.
: Specify the output voltage within the range
1.2V (.12.) to 6.0V (.60.) in 0.1V steps.
(For externally adjustable output voltage type, feedback voltage of 1.0V(.10.))
.
∗
.
: Specify the oscillator frequency, modulation method, output
voltage adjustment.
.E.:
300kHz, PWM/VFM, fixed output voltage
.F.
: 500kHz, PWM/VFM, fixed output voltage
.G.:
300kHz, fixed PWM, adjustable output voltage
.H.:
500kHz, fixed PWM, adjustable output voltage
.L.
: 180kHz, PWM/VFM, fixed output voltage
.M.:
180kHz, fixed PWM, adjustable output voltage
C1
R1
5
1
4
V
IN
CE
EXT
GND
2
V
OUT 3
SD
+
-
C3
LOAD
R1
1
V
IN
CE
EXT
GND
2
V
FB
3
C2
C2
CE CONTROL
CE CONTROL
PMOS : HAT1044M, L : 27μH,
SD : RB063L-30, C1 : 10μF, C2 : 0.1μF,
C3 : 47μF, R1 : 10Ω
PMOS : HAT1044M, L : 27μH,
SD : RB063L-30, C1 : 10μF, C2 : 0.1μF,
C3 : 47μF, C4 : 1000pF, R1 : 10Ω, R3 : 2.7kΩ,
Output voltage at 2.5V⋅⋅⋅R2 : 22kΩ, R4 : 33kΩ
PACKAGE (Top View)
SOT-23-5
5
4
TYPICAL CHARACTERISTIC
R1224N332E
100
90
80
Efficiency vs. Output Current
V
IN
=7V, L=CDRH127(10μH)
Efficiency
η
(%)
70
60
50
40
30
20
10
0
0.1
1
10
100
1000
Output Current I
OUT
(mA)
10000
1
2
3
1
2
3
4
5
CE
GND
V
OUT
or V
FB
EXT
V
IN
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
No.EK-101-091101
•
Power source for battery-powered equipment
Step-down DC/DC Converter
LOAD
SD
R2
