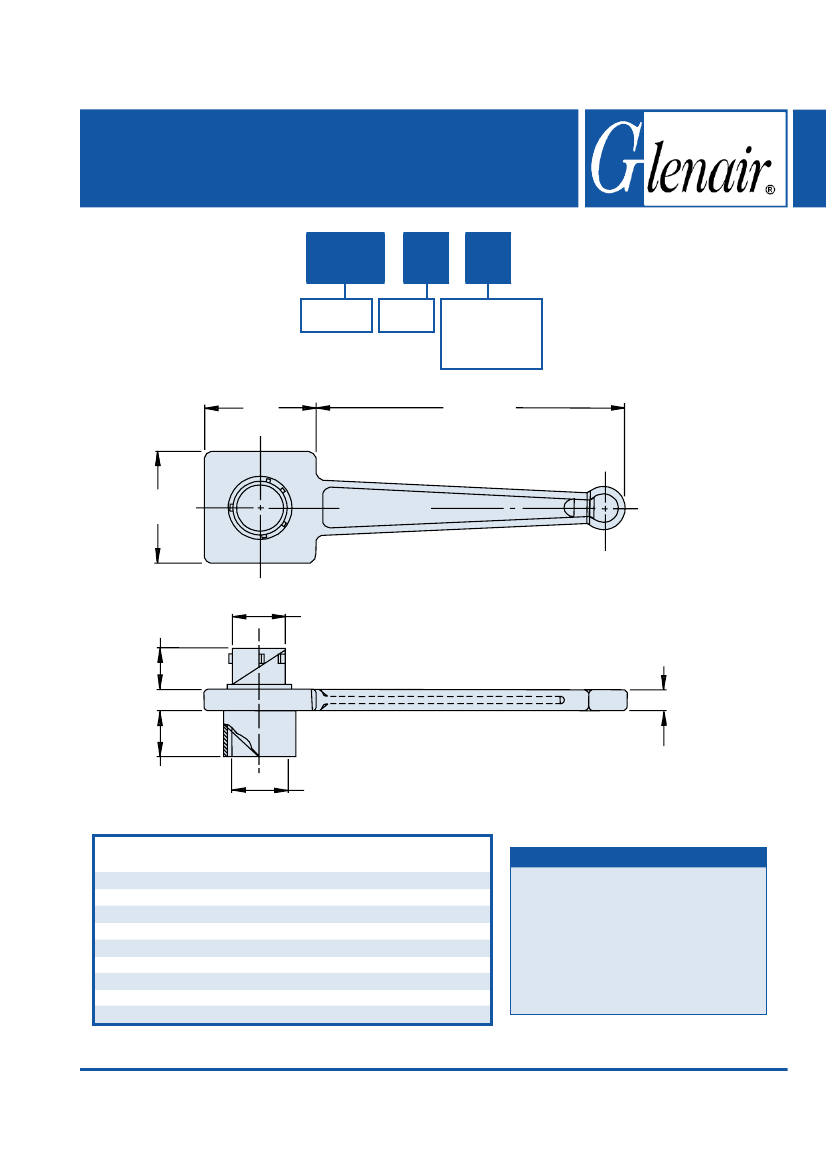

Connector Wrench
TG47
-
20
Basic Part
Number
Shell
Size
N
Polarization
N
- Normal
6, 7, 8, 9 or 10
(See Note 3)
A
5.625
(142.9)
Approx.
A
GLENAIR, INC.
.75 (19.1)
Approx.
B
.75 (19.1)
Approx.
.375 (9.5)
Approx
C
Shell
Size
8
10
12
14
16
18
20
22
24
A Dim.
± .062 (1.6)
1.250 (31.8)
1.250 (31.8)
1.250 (31.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
2.000 (50.8)
B Dia.
Ref.
.424 (10.8)
.526 (13.4)
.696 (17.7)
.765 (19.4)
.892 (22.7)
.998 (25.3)
1.123 (28.5)
1.248 (31.7)
1.373 (34.9)
C Dia.
Ref.
.428 (10.9)
.530 (13.5)
.700 (17.8)
.769 (19.5)
.896 (22.8)
1.002 (25.5)
1.127 (28.6)
1.252 (31.8)
1.377 (35.0)
CAGE Code 06324
APPLICATION NOTES
1. Metric dimensions (mm) are indicated in
parentheses.
2. Material: Aluminum alloy with electroless
nickel finish.
3. Polarization 10 not available for shell size 8.
4. Wrench has been designed to be used
with both threaded and bayonet style
connectors.
© 2008 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
37
E-Mail:
sales@glenair.com
Torque
TG37
MIL-C-26500 and MIL-C-83723 Series III
