BNC31202-HW-50 datasheet, PDF - EEWORLD Datasheet

BNC31202-HW-50: DescriptionRF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal; CategoryThe connector The connector; File Size228KB，1 Pages; ManufacturerRegal Electronics; Websitehttp://regalusa.net

Download Datasheet Parametric Compare View All

BNC31202-HW-50 Overview

RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal

Parameter Name	Attribute value
Maker	Regal Electronics
Reach Compliance Code	unknown
Other features	REGAL
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Manufacturer's serial number	BNC31202-HW
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	3 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	SOLDER

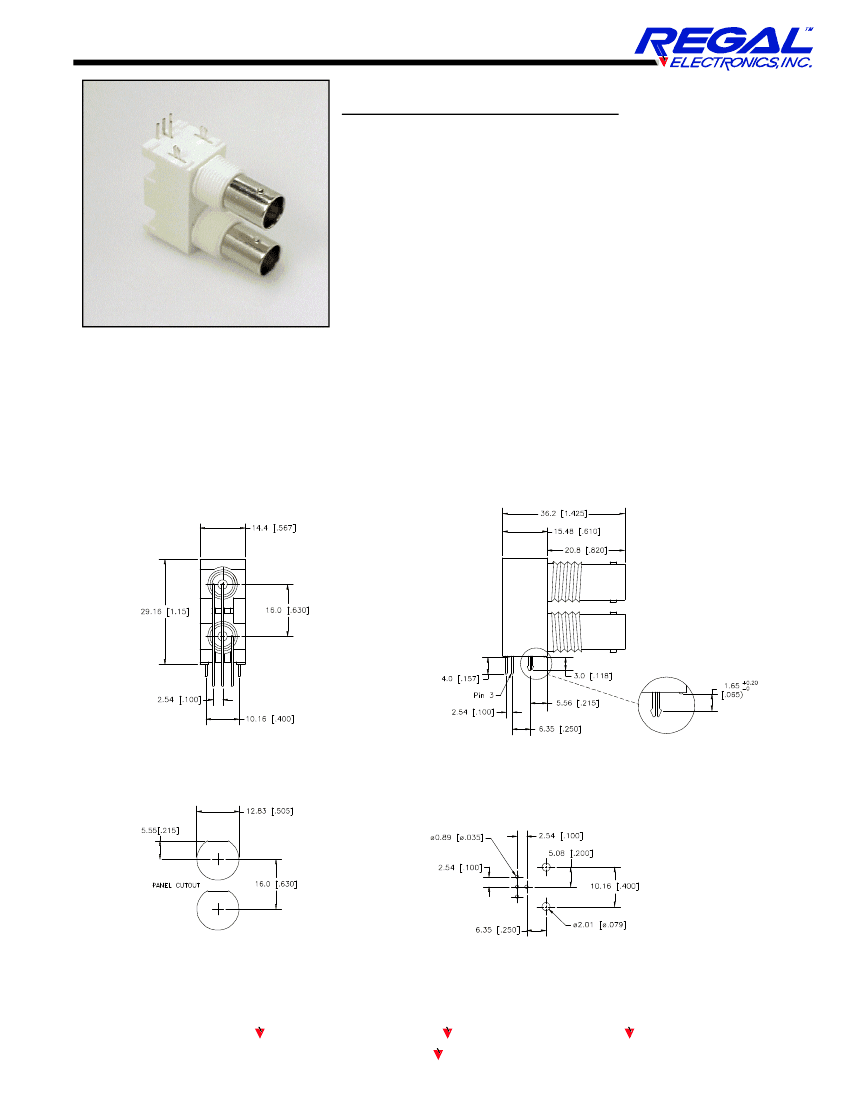

BNC Right Angle Dual Port PCB Mount

BNC 31202-HW-[*]

*Ohm; Options are:

50, 75

ELECTRICAL:

• Impedance: 50 & 75 ohm

• Contact resistance: 3.0 milliohms maximum

• Insulation resistance: 5000 Megohms minimum

• Operating Voltage: 500 Volts RMS

• Dielectric withstanding voltage: 1500 VAC one minute

• Frequence Rang: 0-3 GHz

MATERIAL:

• Insulator: Polypropylene UL 94 HB

• Contacts: Phosphor bronze

• Plating: 6µ” gold over nickel in contact area

• Mounting post: Tin plating over brass

• Operating Temperature: -55°C to +85°C

030722

120 San Lucar Court

Sunnyvale, CA 94086

Visit www.regalusa.com

Phone 800/882-8086 Fax 800/345-2831

E-mail hal@regalusa.com

	BNC31202-HW-50	BNC31202-HW-75
Description	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal
Maker	Regal Electronics	Regal Electronics
Reach Compliance Code	unknown	unknown
Other features	REGAL	REGAL
Characteristic impedance	50 Ω	75 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL	GOLD (6) OVER NICKEL
Contact point gender	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYPROPYLENE	POLYPROPYLENE
MIL compliance	NO	NO
Manufacturer's serial number	BNC31202-HW	BNC31202-HW
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Maximum operating frequency	3 GHz	3 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
Termination type	SOLDER	SOLDER
